EXPERTEC TSB (92-134-6E)
WARNING: This page is about the Corvette ZR-1, which is a different variant/trim than selected.
Publication date: 1992-03-10Reference number: 92-134-6E
EXPERTEC TSB
TECHNICAL SERVICE BULLETIN
Reference Number(s): 92-134-6E, Date of Issue:
03/10/92
SERVICE MANUAL UPDATE SEC. 6E3 - REVISED CODE 21 DIAG. CHART
Model(s): 1992 Chevrolet Corvette with 5.7L (LT1)
Bulletin No.: Chevrolet 92-134-6E
Date: 03/10/1992
SERVICE INFORMATION

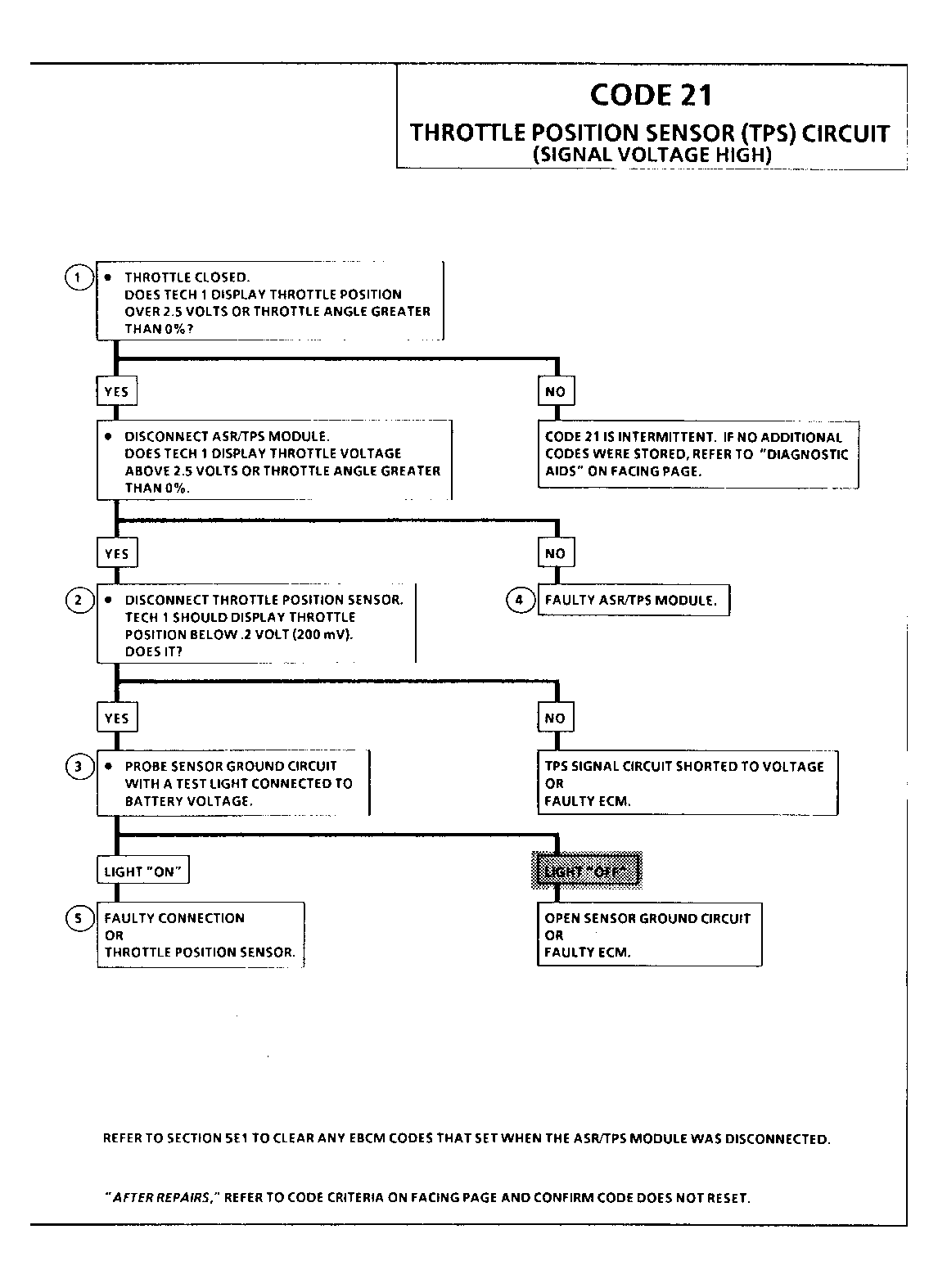

This attached Code 21 Diagnostic Chart replaces the Diagnostic Chart found in Driveability and Emissions (SECTION 6E3) on page 6E3-A-47 of the 1992 Corvette Service Manual. The shaded area on the Chart reflects the change.
