Adjuster Assembly Wiring Repair

Terminal Repair Kit (J 38125-A) contains "sealed splices" for use in repairing adjuster assembly. A special crimper, heat torch, and instruction manual for these splices are also included in kit. If any wire in adjuster assembly is damaged, the wire(s) should be repaired by splicing a NEW section of wire of the same gauge size. The "sealed splices", crimper, and torch from repair kit MUST be used for these repairs.

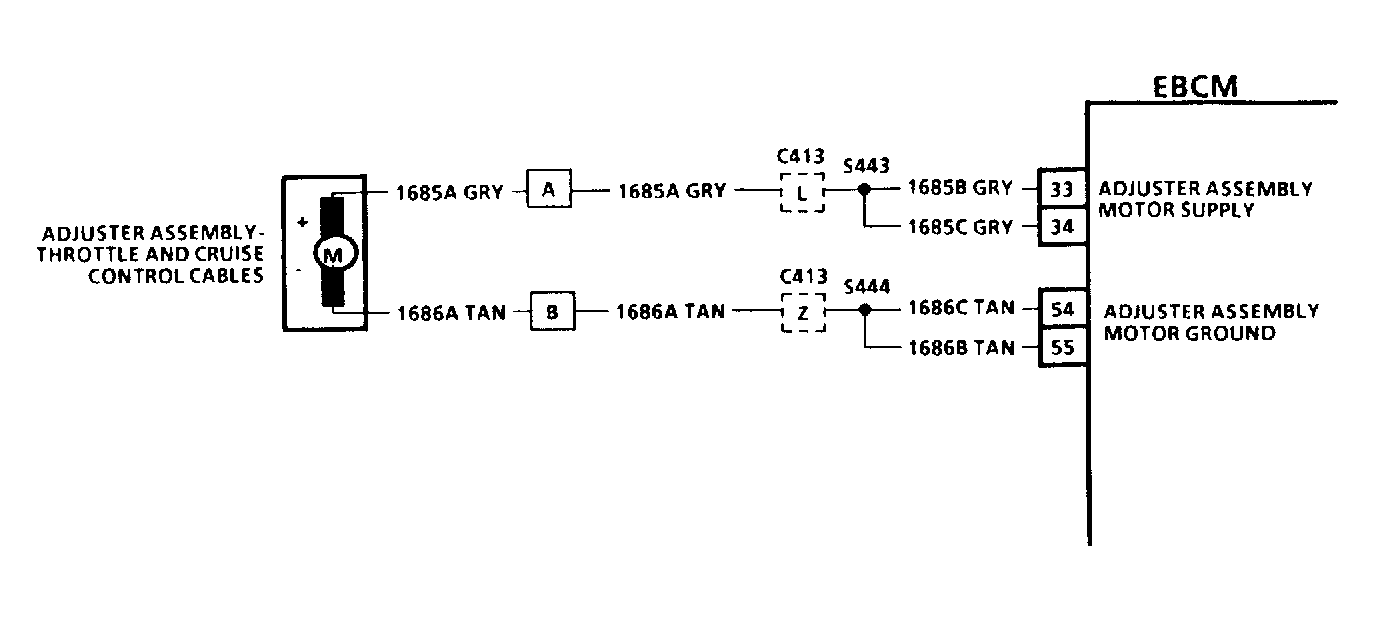

Fig 1: Code 65 (1 of 2) Schematic - Adjuster Assembly Fault

Courtesy of GENERAL MOTORS CORP.

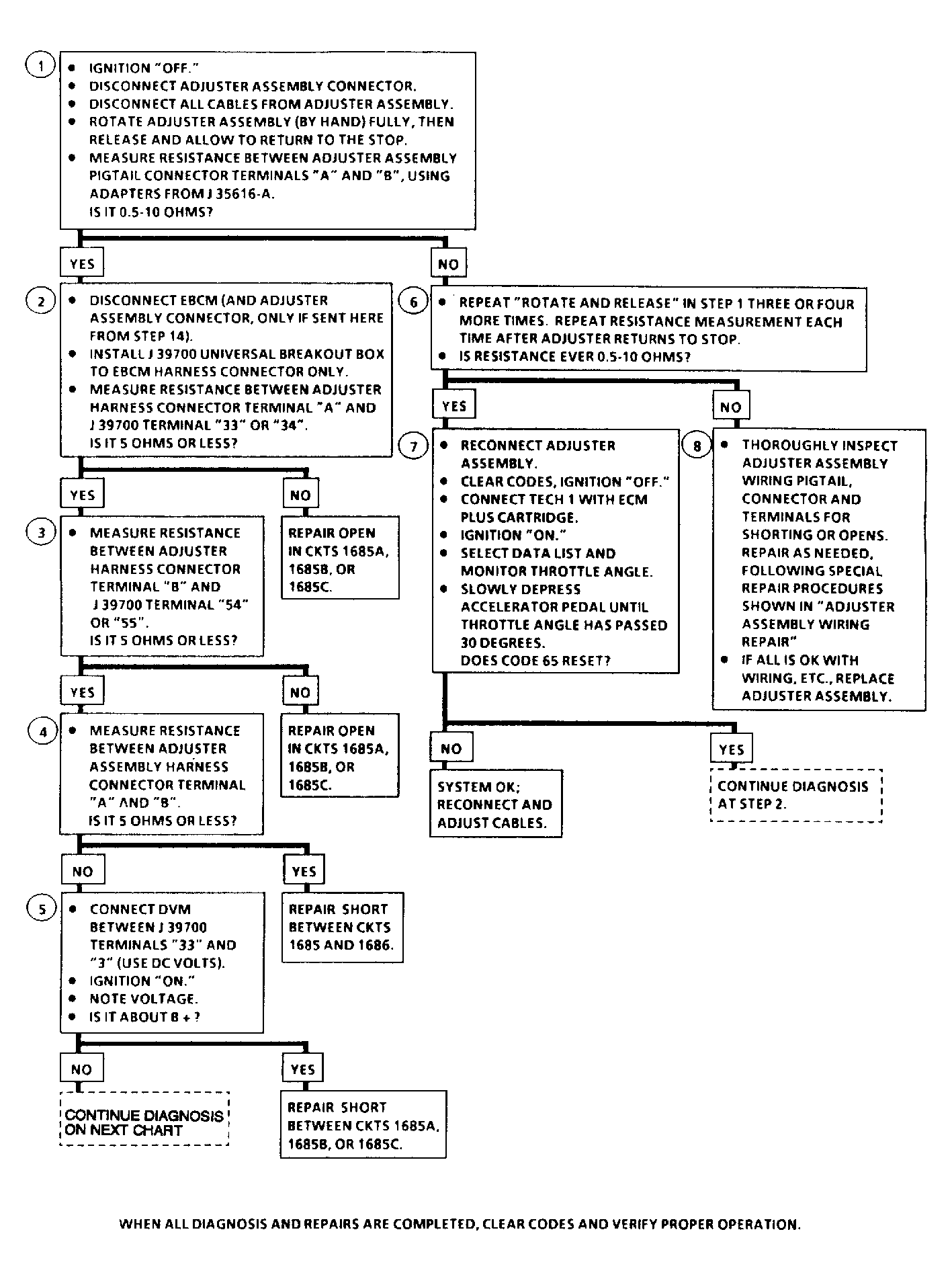

Fig 2: Code 65 (1 of 2) Flow Chart - Adjuster Assembly Fault

Courtesy of GENERAL MOTORS CORP.
