Symptom Diagnosis

SYMPTOM DIAGNOSIS

Symptom	Chart No.
Cruise Will Not Engage	1
Cruise Looses Set Speed	2
Cruise Surges	2
Cruise Will Not Resume	3
Cruise Will Not Accelerate	3
Cruise Will Not Tap-Up	3

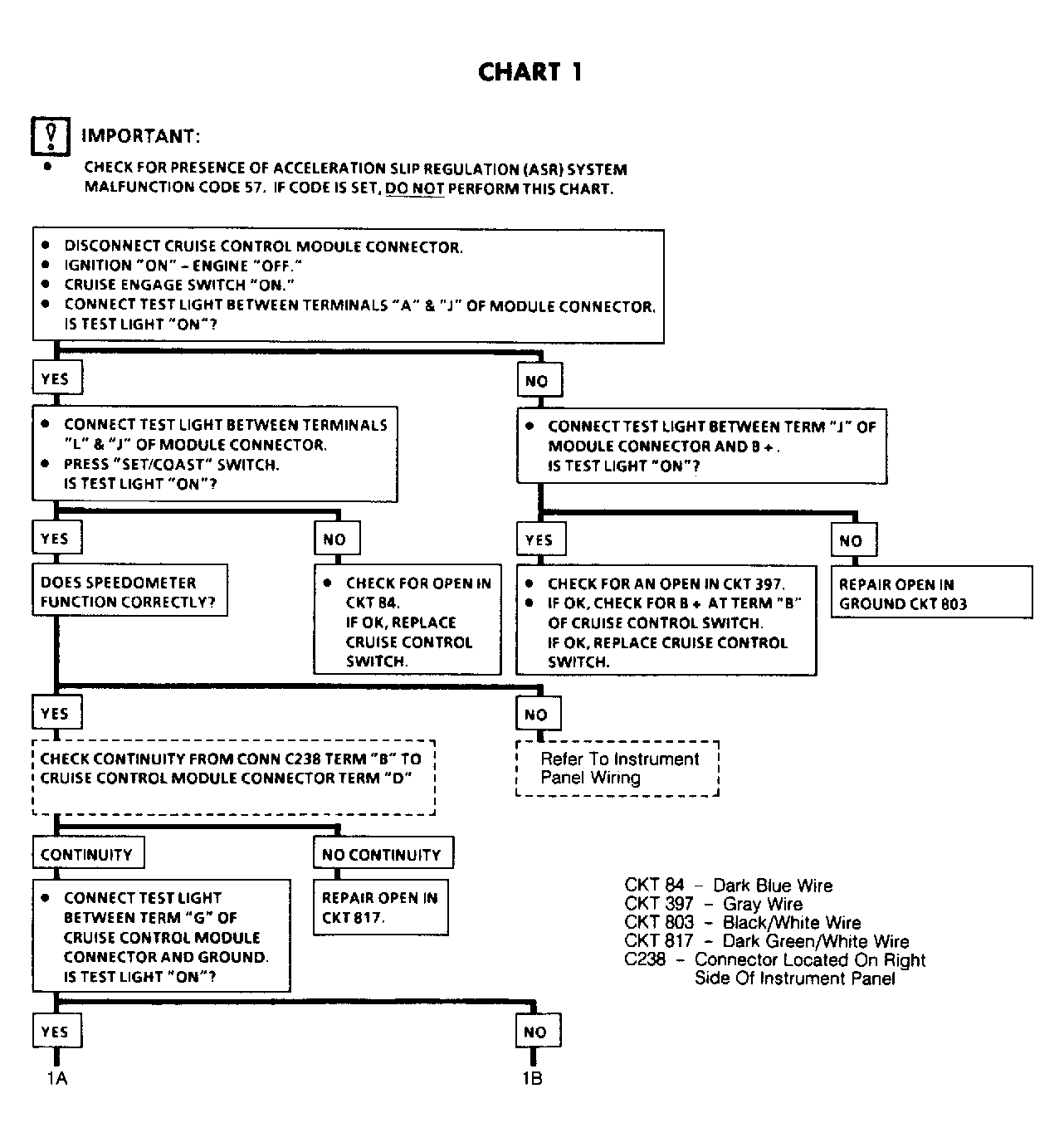

Fig 1: Cruise Control Diagnosis & Testing Chart No. 1

G92J03588

Courtesy of GENERAL MOTORS CORP.

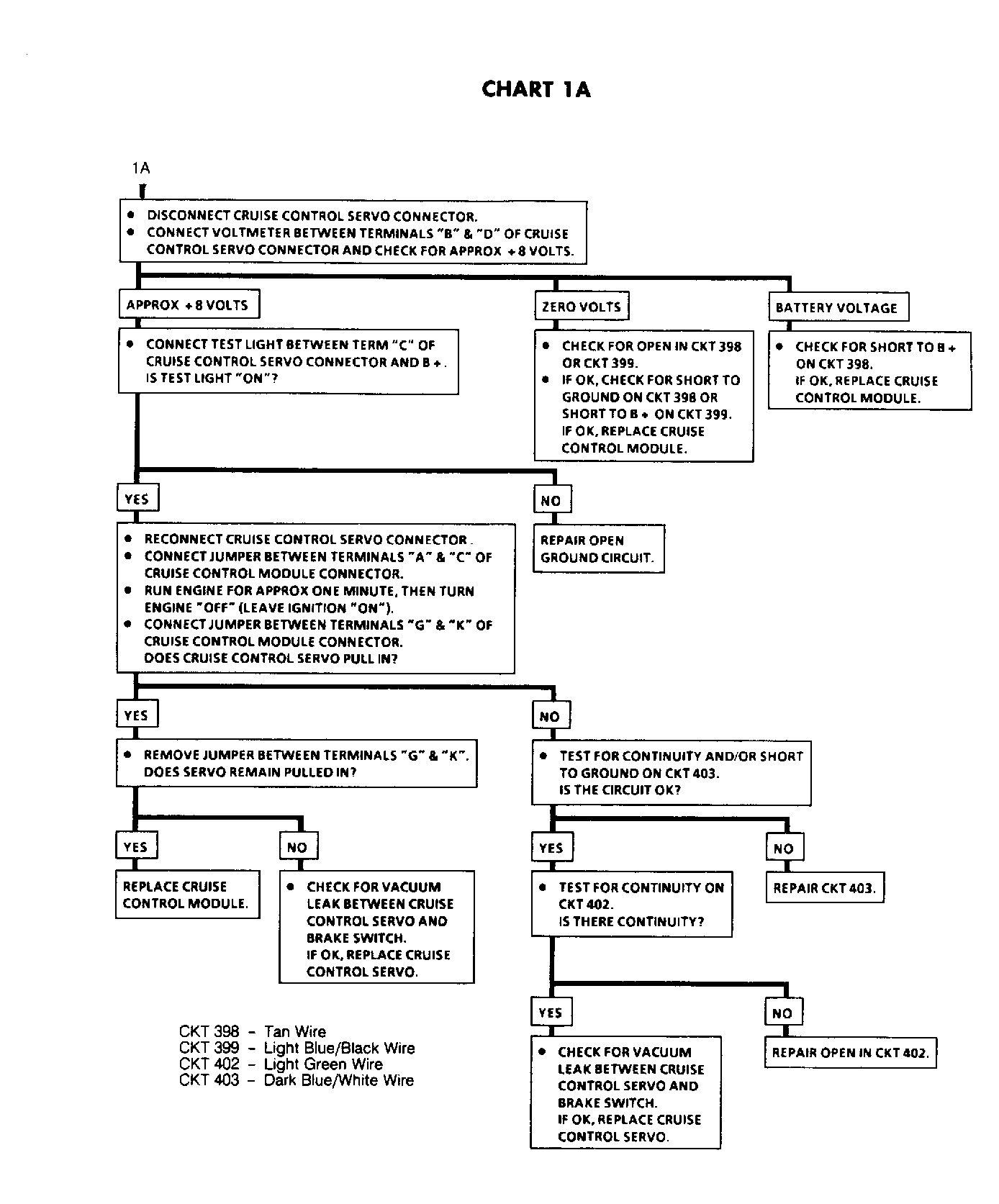

Fig 2: Cruise Control Diagnosis & Testing Chart No. 1A

G92B03589

Courtesy of GENERAL MOTORS CORP.

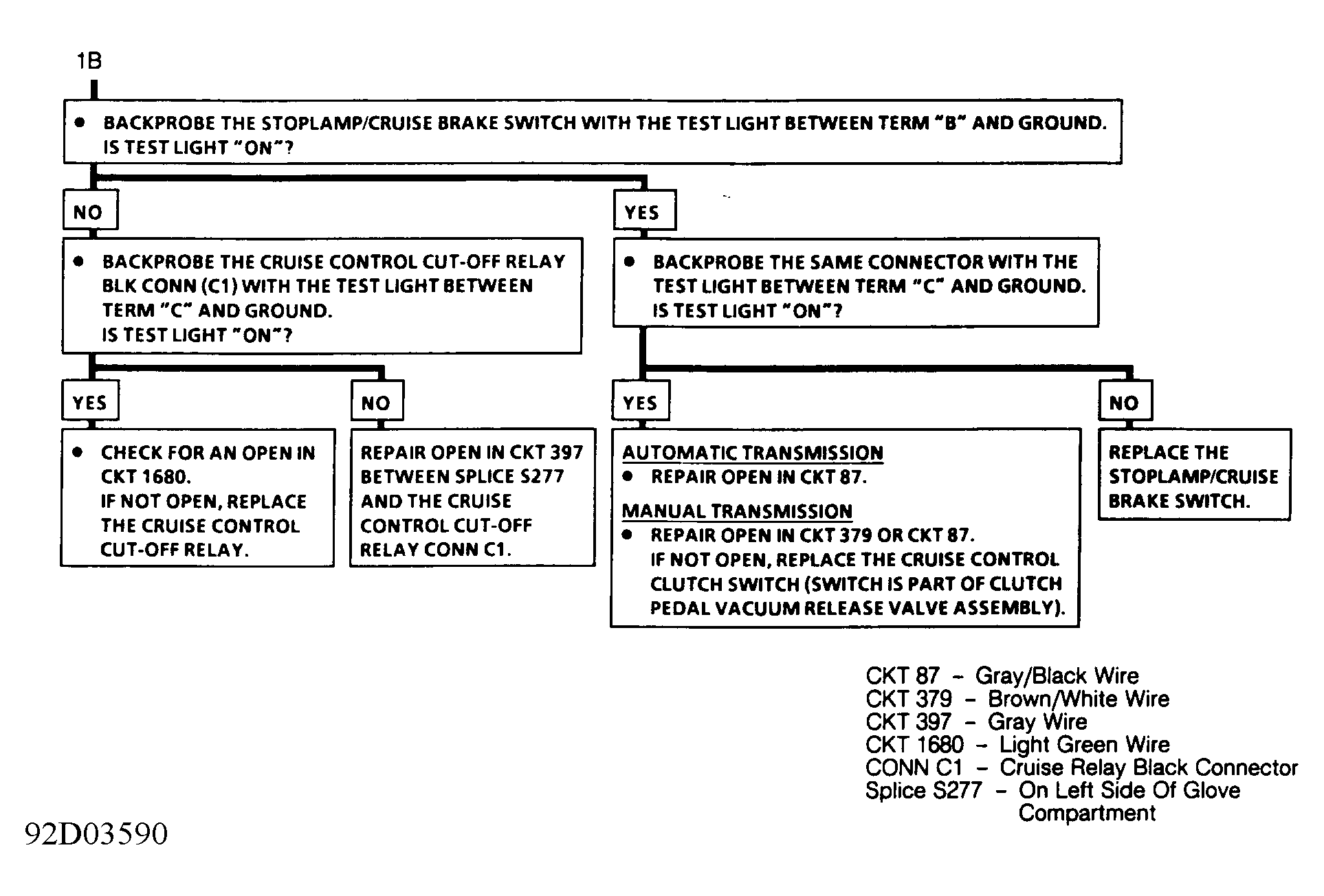

Fig 3: Cruise Control Diagnosis & Testing Chart No. 1B

G92D03590

Courtesy of GENERAL MOTORS CORP.

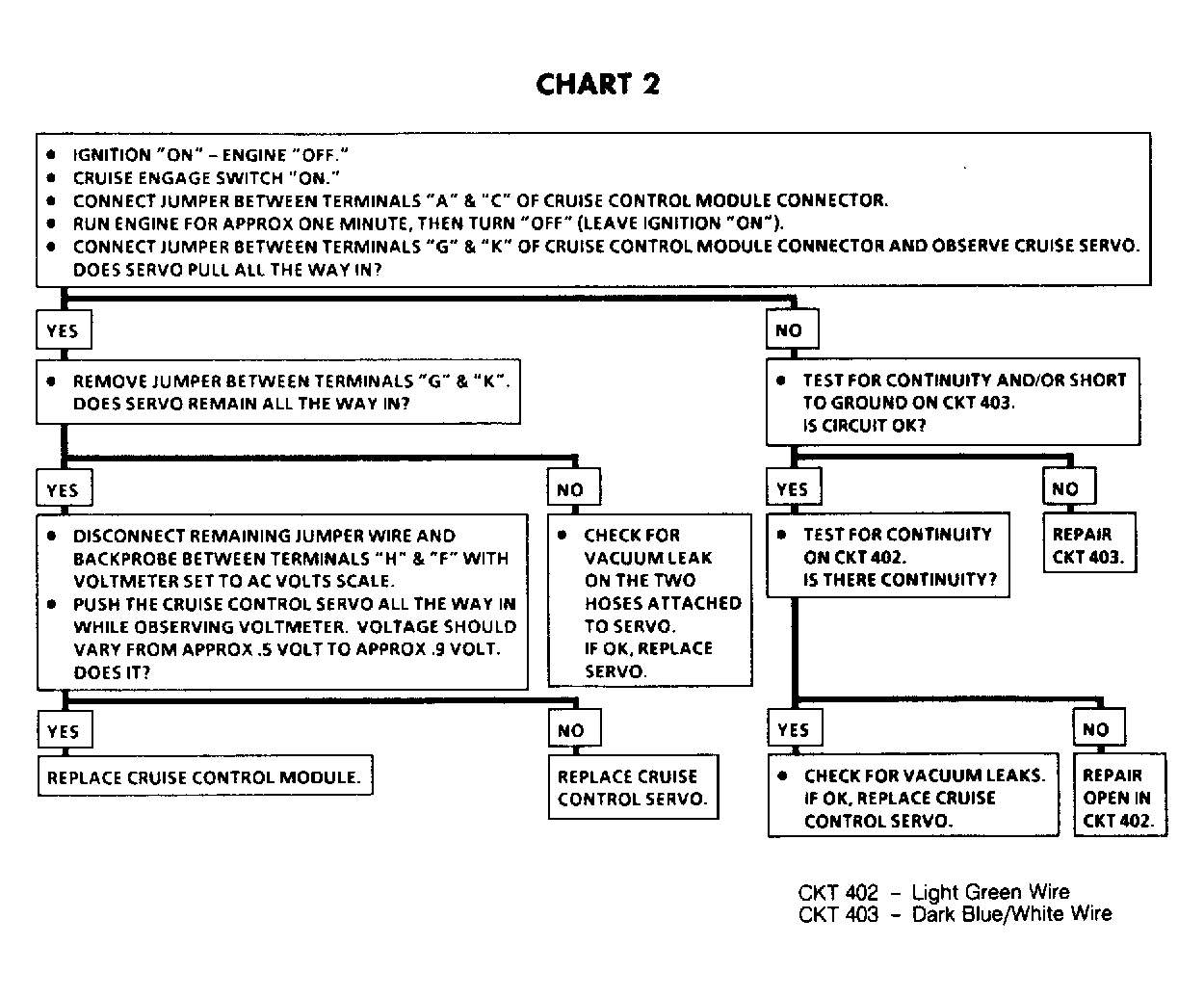

Fig 4: Cruise Control Diagnosis & Testing Chart No. 2

G92F03591

Courtesy of GENERAL MOTORS CORP.

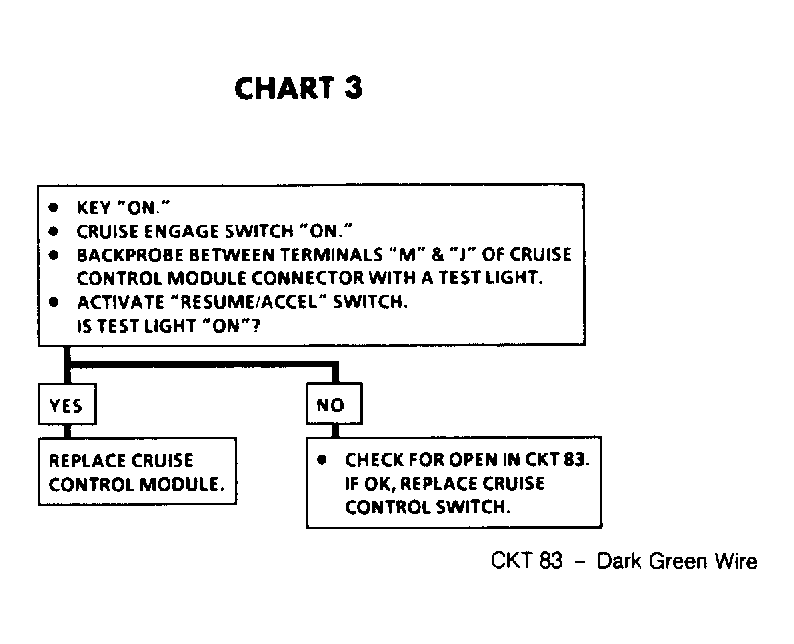

Fig 5: Cruise Control Diagnosis & Testing Chart No. 3

G92H03592

Courtesy of GENERAL MOTORS CORP.
