Anti-Lock Brake System: Description

The Bosch 2S Micro Anti-Lock Brake System (ABS) and Acceleration Slip Regulation (ASR) system increase vehicle control during severe deceleration and acceleration on most road surfaces. The ABS/ASR system consists of adjuster assembly, cruise control cut-off relay, Electronic Brake Control Module (EBCM), lateral accelerometer, modulator valve assembly, TPS module, 4 wheel speed sensors and warning lights. See Fig 1.

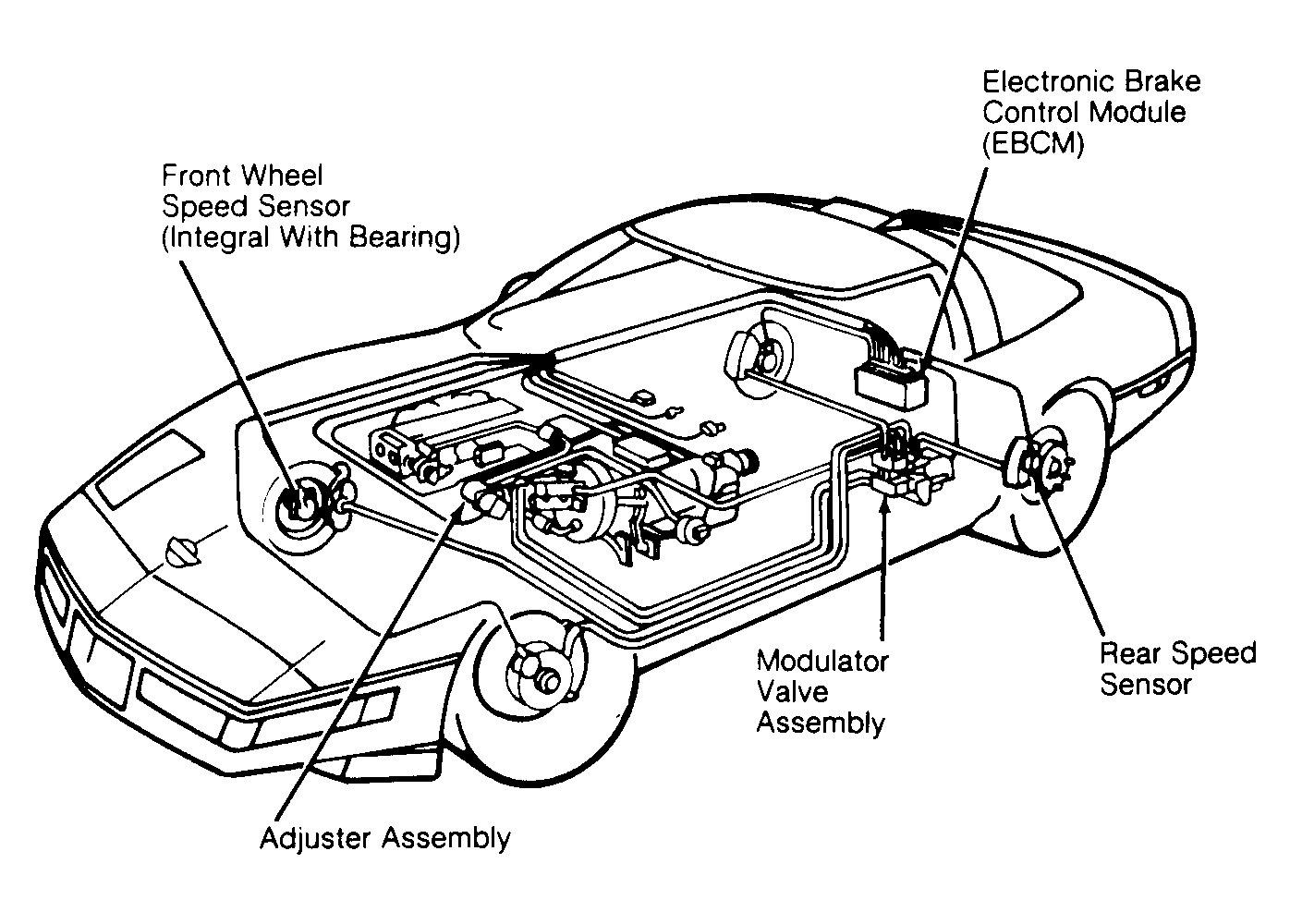

Fig 1: Identifying ABS/ASR System Components

Courtesy of GENERAL MOTORS CORP.
