Anti-Theft System: Testing: Notes

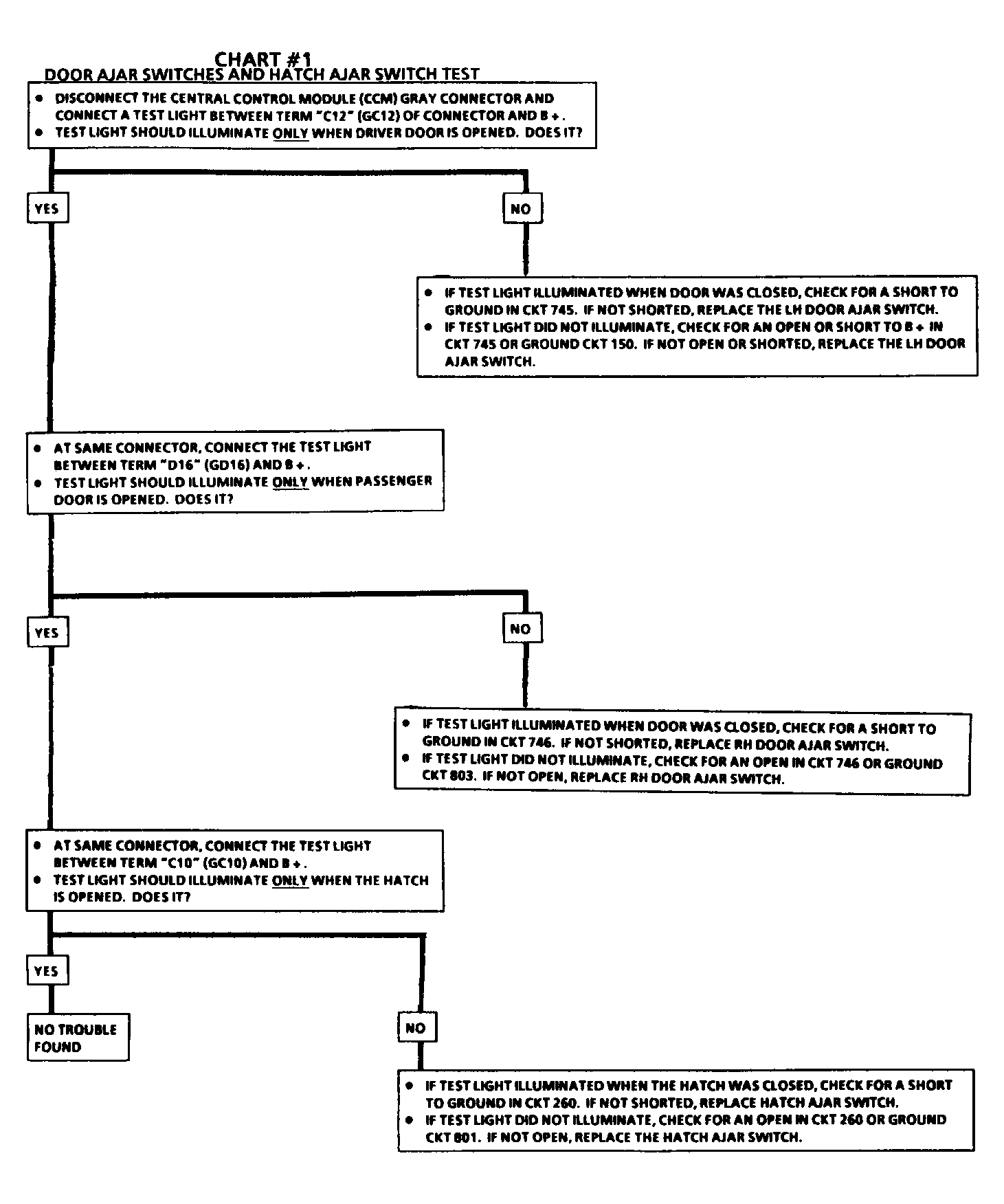

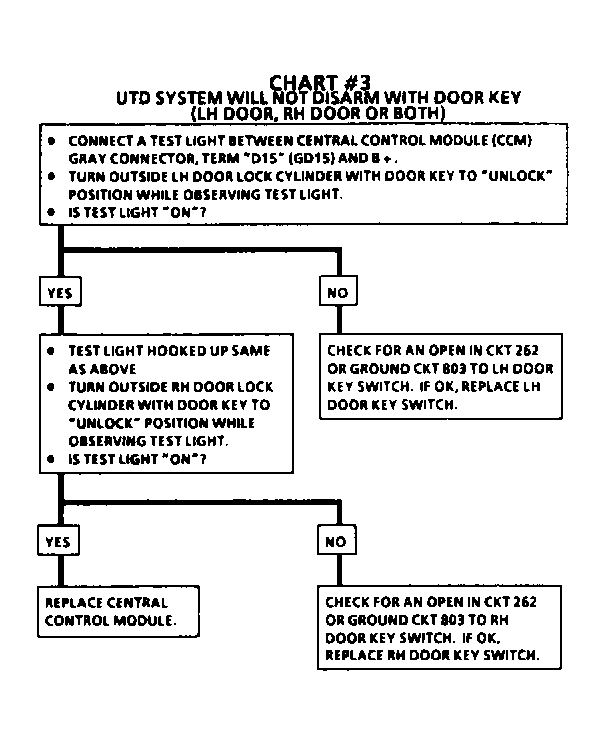

System can be tested using the following DIAGNOSTIC FLOW CHARTS (CHARTS 1-5). See Figure -5. Refer to system wiring schematic. See Figure .
