Wiring Diagrams

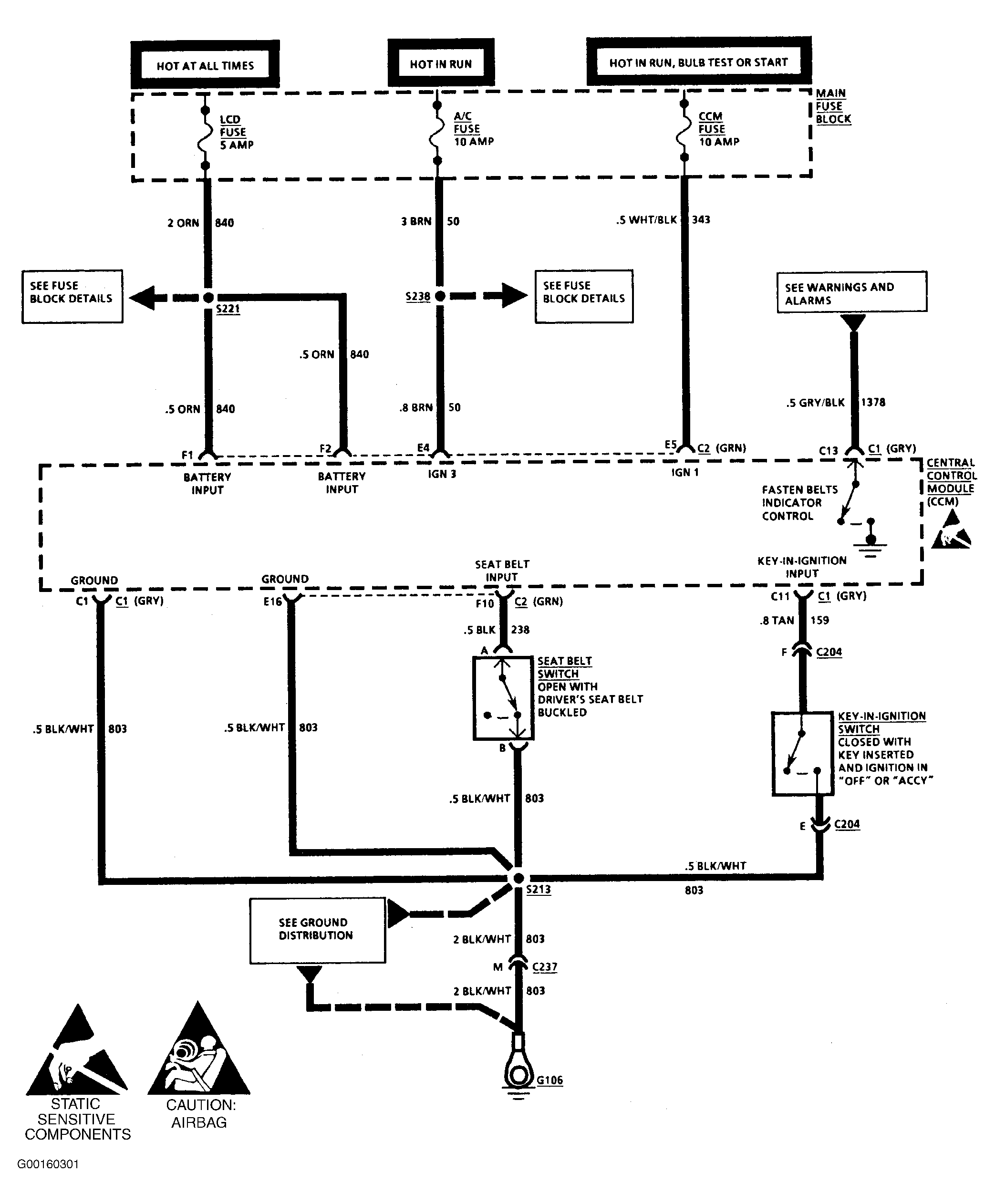

Fig 1: Central Control Module Wiring Diagram (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Central Control Module Wiring Diagram (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

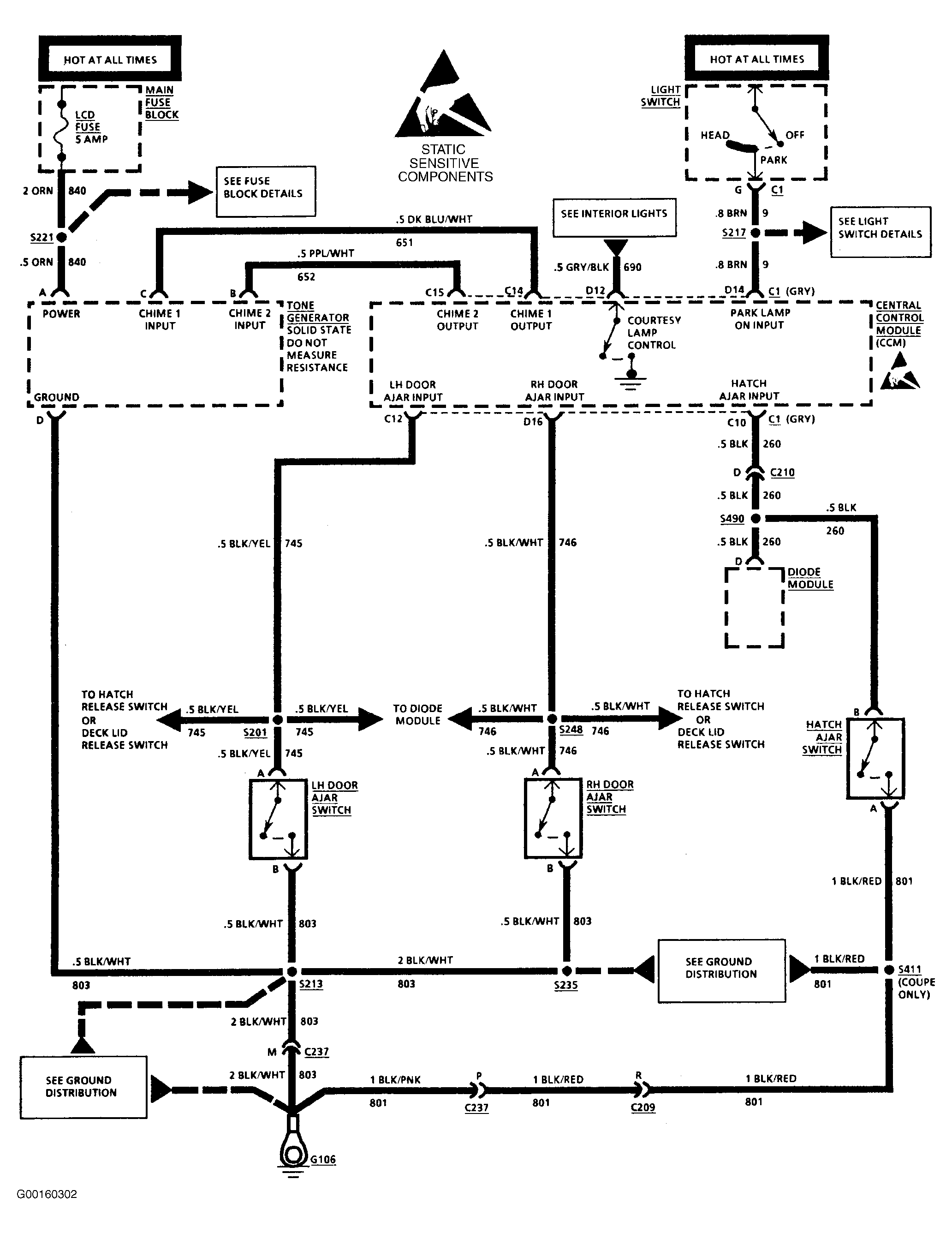

Fig 3: Central Control Module Wiring Diagram (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

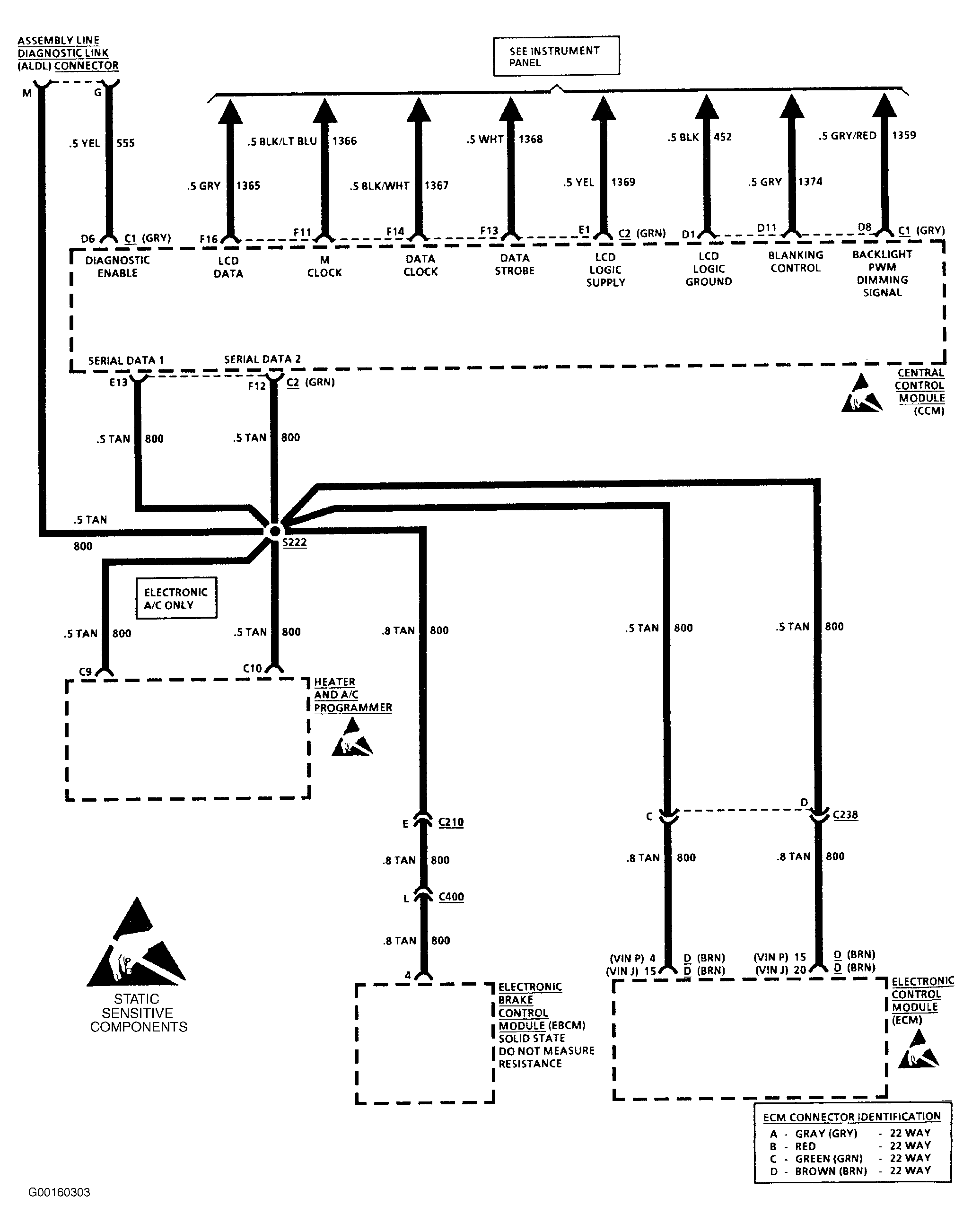

Fig 4: Central Control Module Wiring Diagram (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

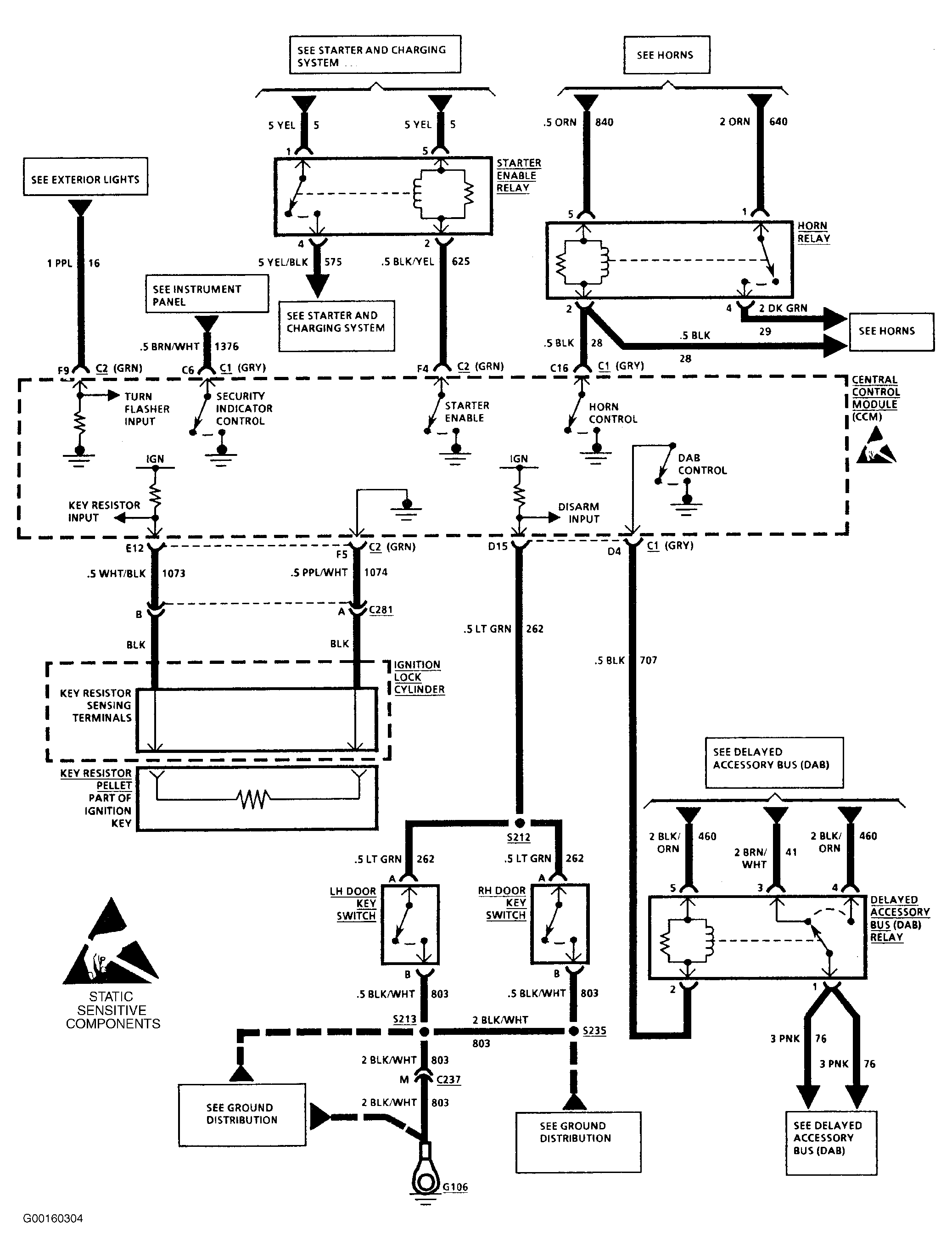

Fig 5: Central Control Module Wiring Diagram (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

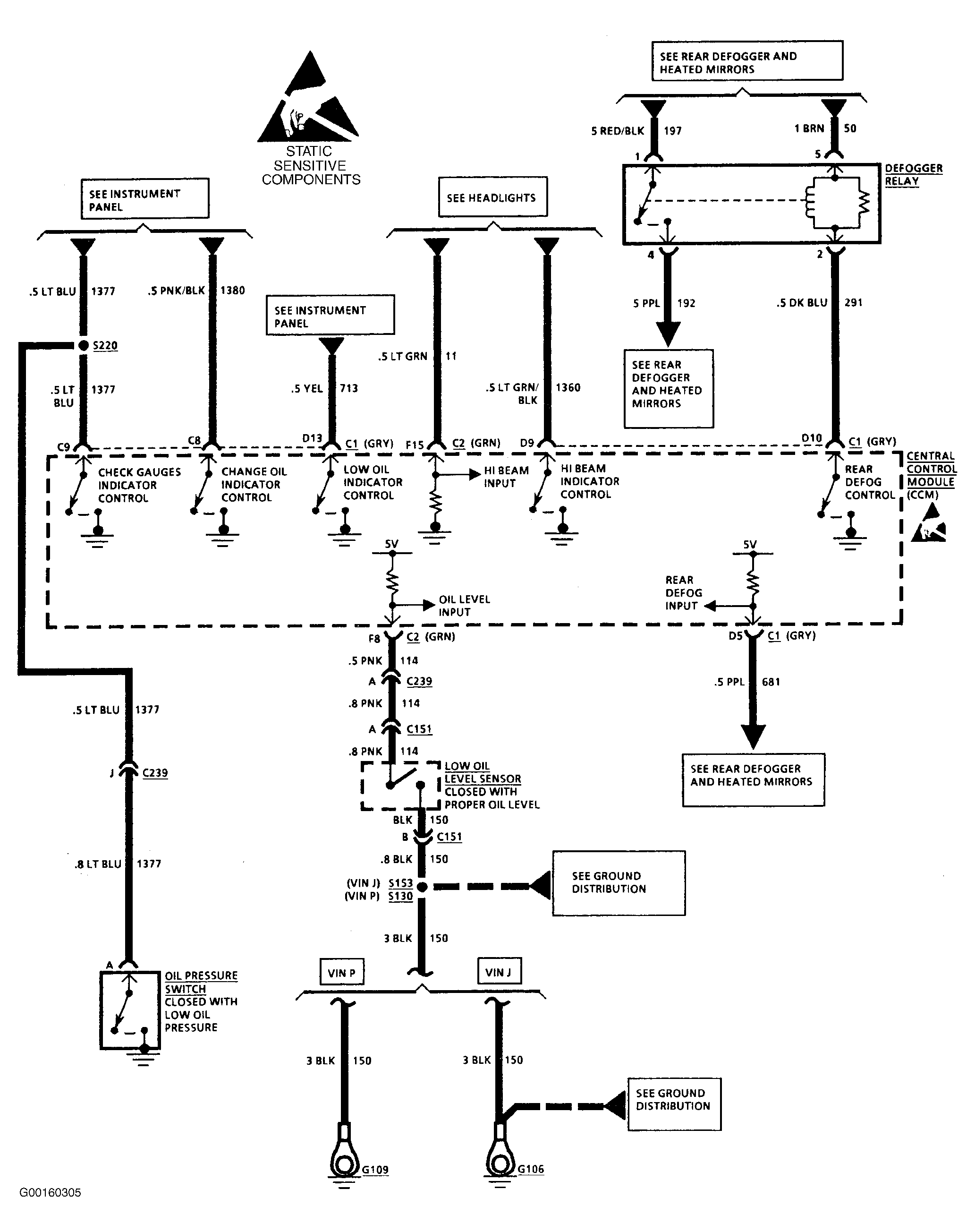

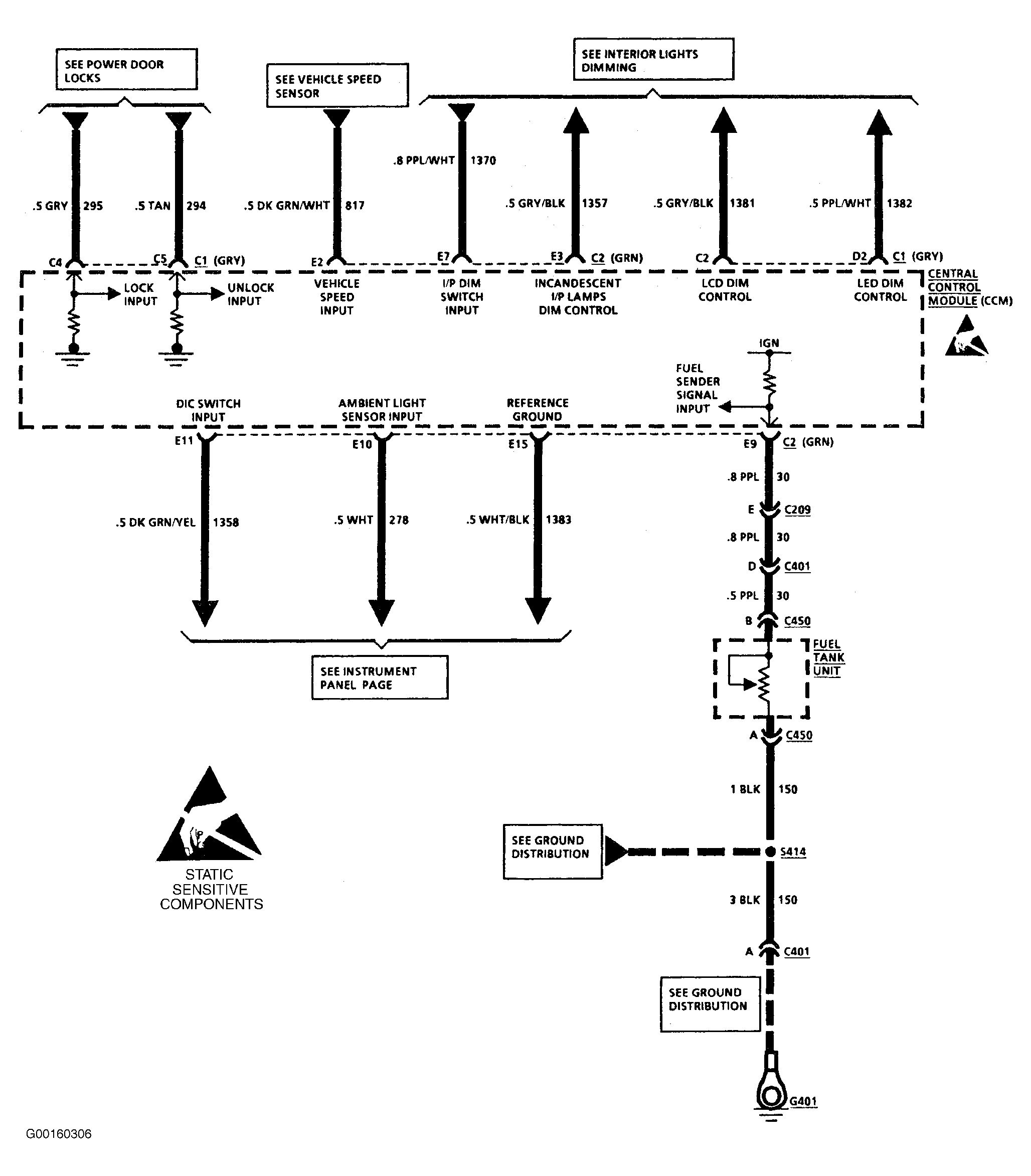

Fig 6: Central Control Module Wiring Diagram (6 Of 6)

Courtesy of GENERAL MOTORS CORP.
