Test D: Power Window Motor

To perform this test, refer to illustration. See Fig 1 .

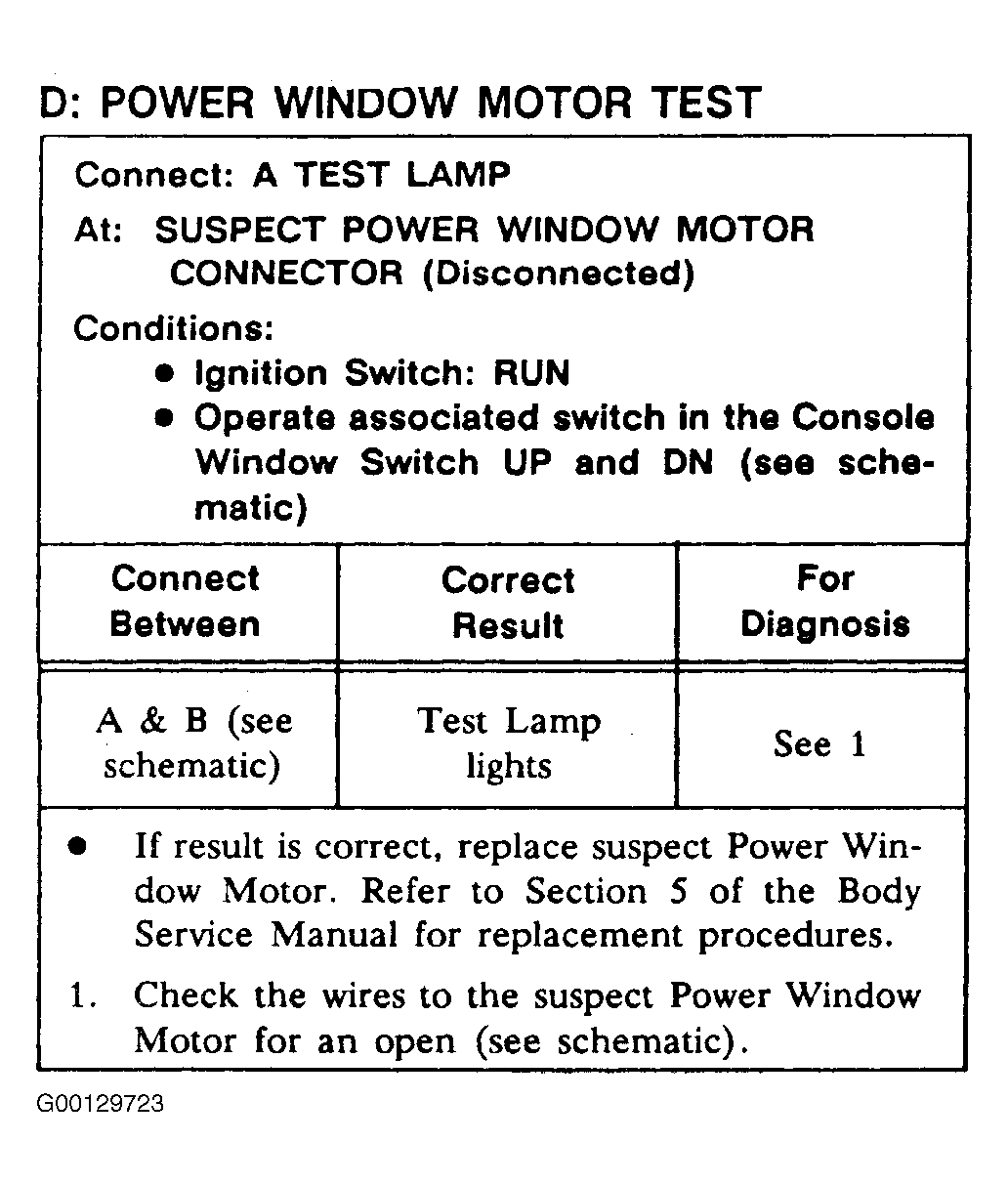

Fig 1: Test D: Power Window Motor

G00129723

Courtesy of GENERAL MOTORS CORP.
