Test C: Rear Window Switch

To perform this test, refer to illustration. See Fig 1 .

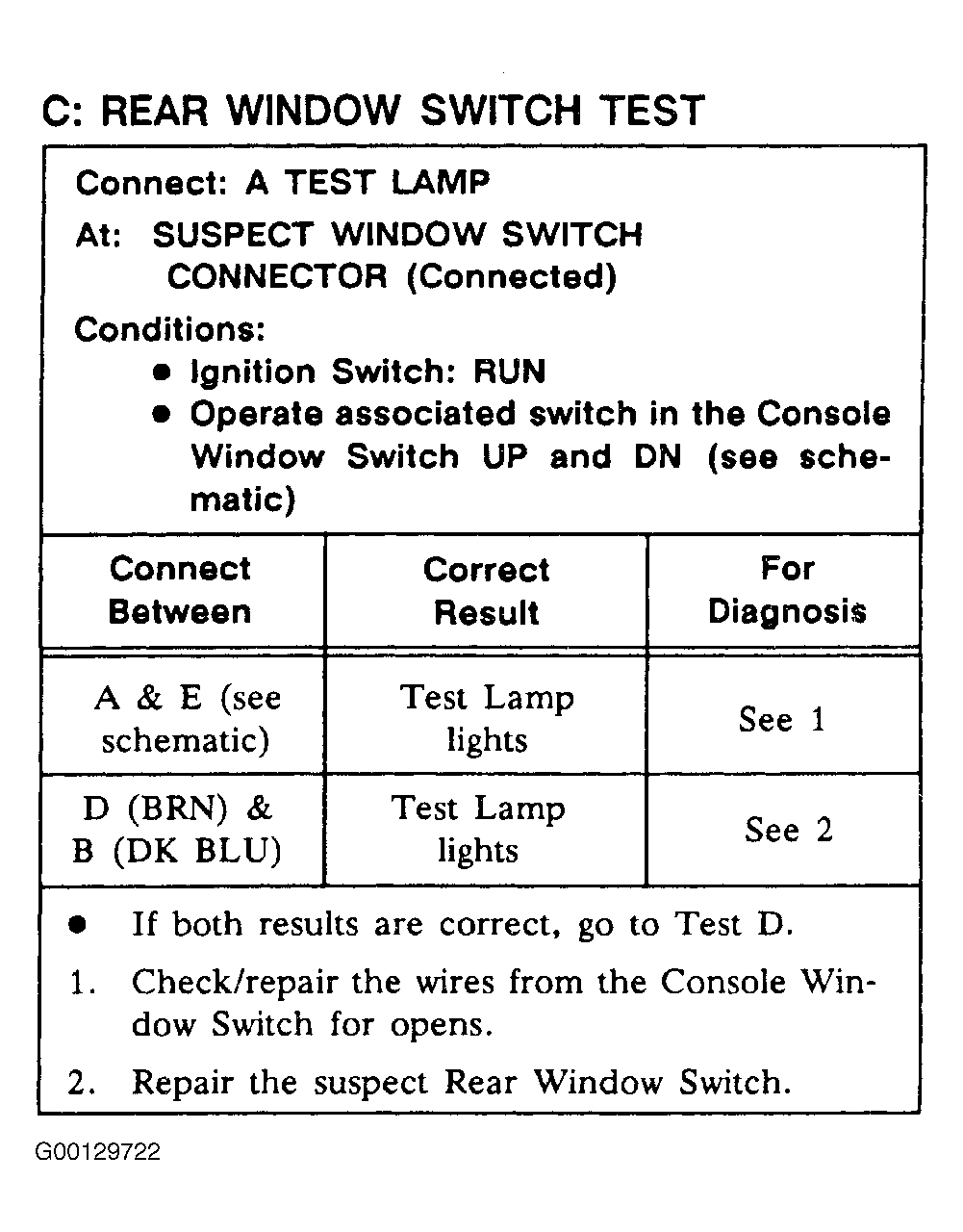

Fig 1: Test C: Rear Window Switch

G00129722

Courtesy of GENERAL MOTORS CORP.
