Component Location

COMPONENT LOCATION

Component Location
Fuse Block Behind Left Side Of Instrument Panel. See Fig 1
Power Window Motor Lower Front Of Respective Door. See Fig 2
C200 (30 cavities) Behind Instrument Panel, Near Left Shroud. See Fig 3
C318 (3 cavities) Behind Instrument Panel, Near Right Shroud. See Fig 4
C319 (3 cavities) Behind Instrument Panel, Near Left Shroud. See Fig 4
G302 Below Left Front Seat, Near Door Sill. See Fig 5
S215 Crosscar Harness, Near Upper Left Shroud. See Fig 3

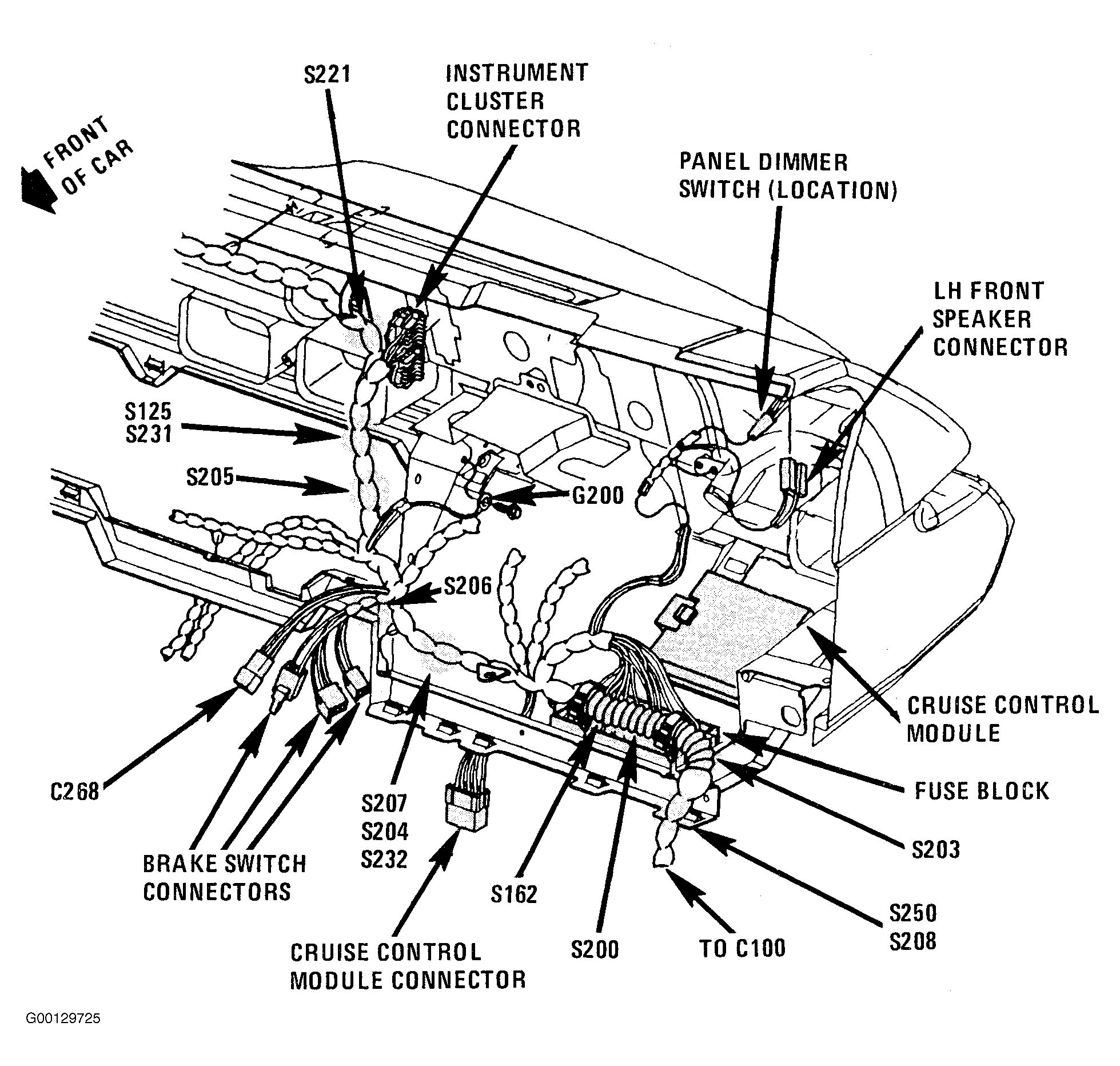

Fig 1: Locating Fuse Bock
G00129725Courtesy of GENERAL MOTORS CORP.

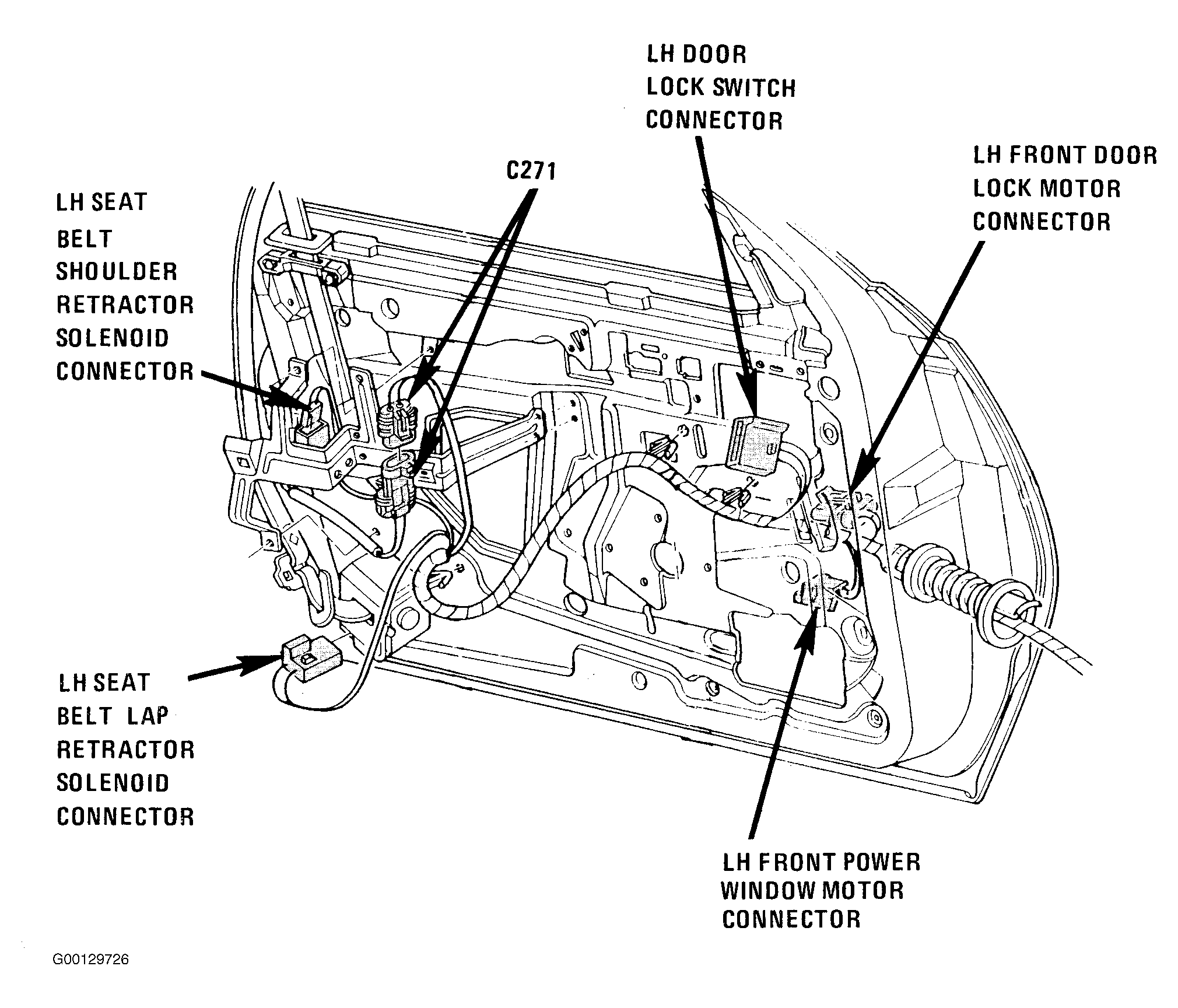

Fig 2: Locating Power Window Motor
G00129726Courtesy of GENERAL MOTORS CORP.

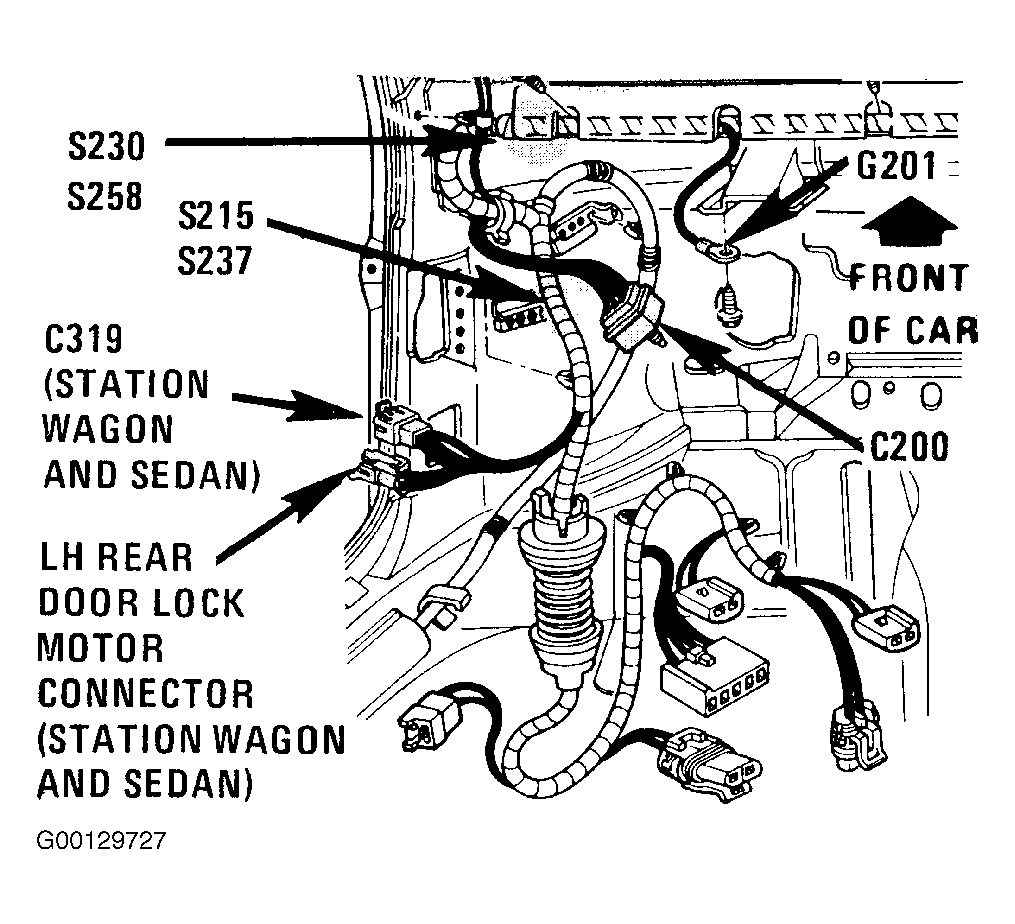

Fig 3: Locating Connector C200
G00129727Courtesy of GENERAL MOTORS CORP.

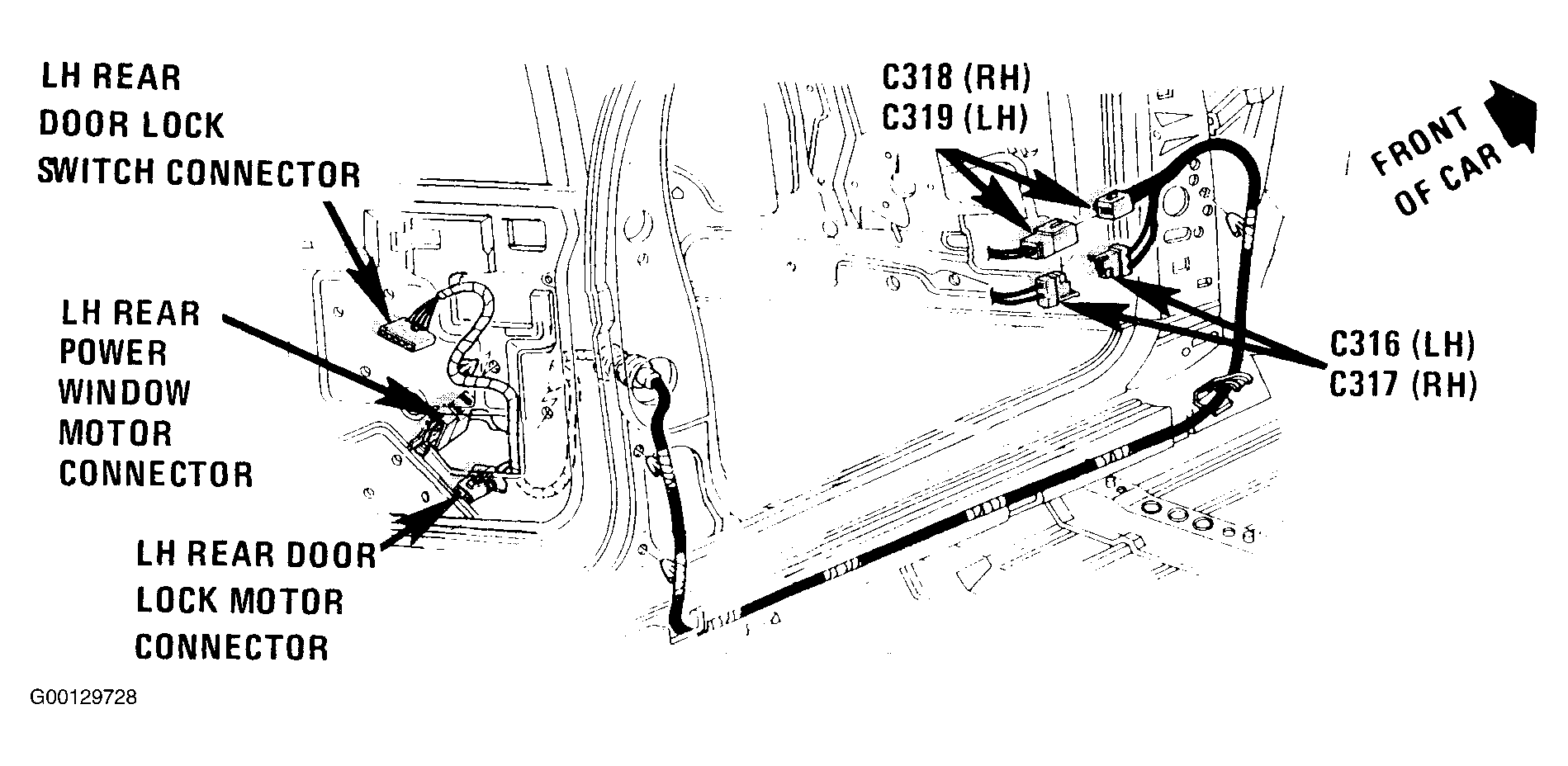

Fig 4: Locating Connector C318 & C319
G00129728Courtesy of GENERAL MOTORS CORP.

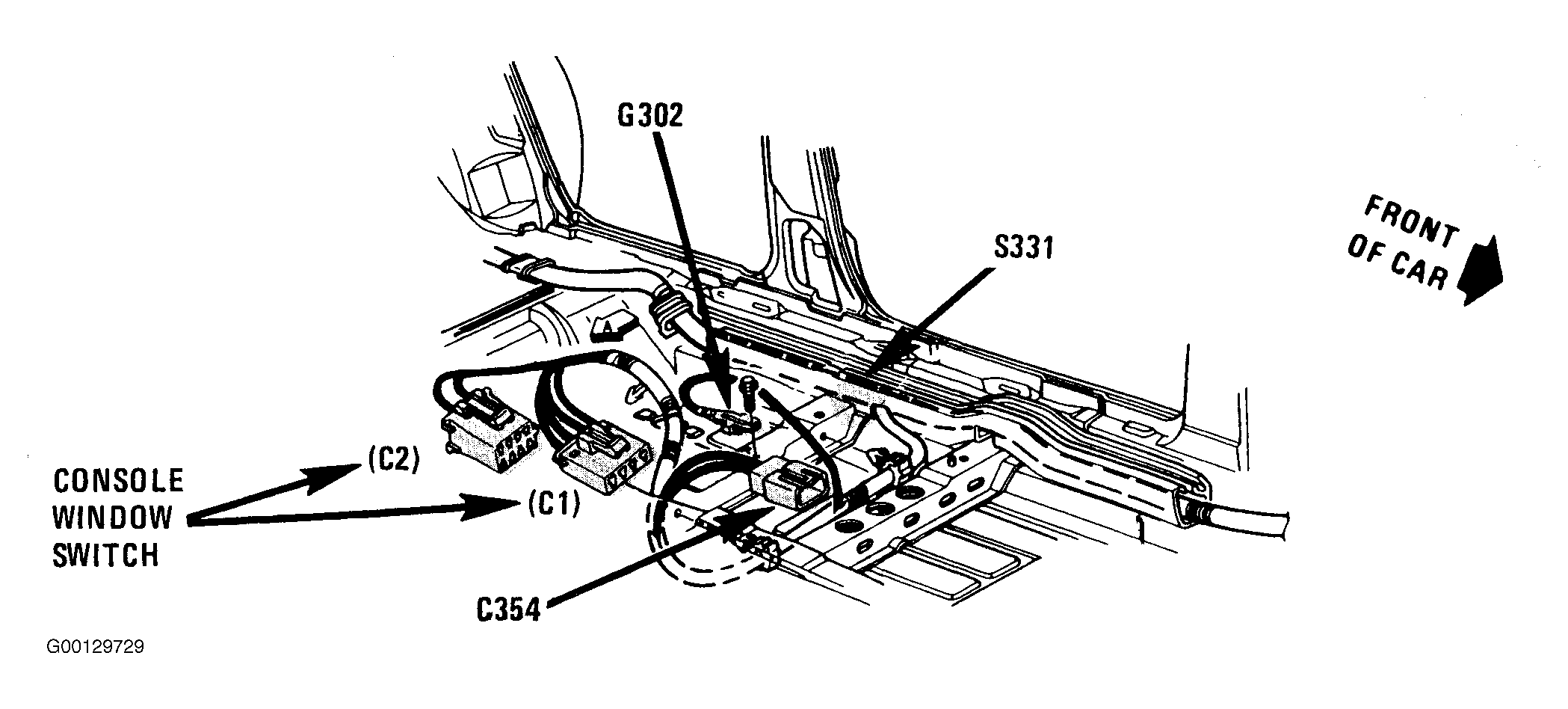

Fig 5: Locating Ground G302
G00129729Courtesy of GENERAL MOTORS CORP.
