Test E: Window Switch Power

To perform this test, refer to illustration. See Fig 1 .

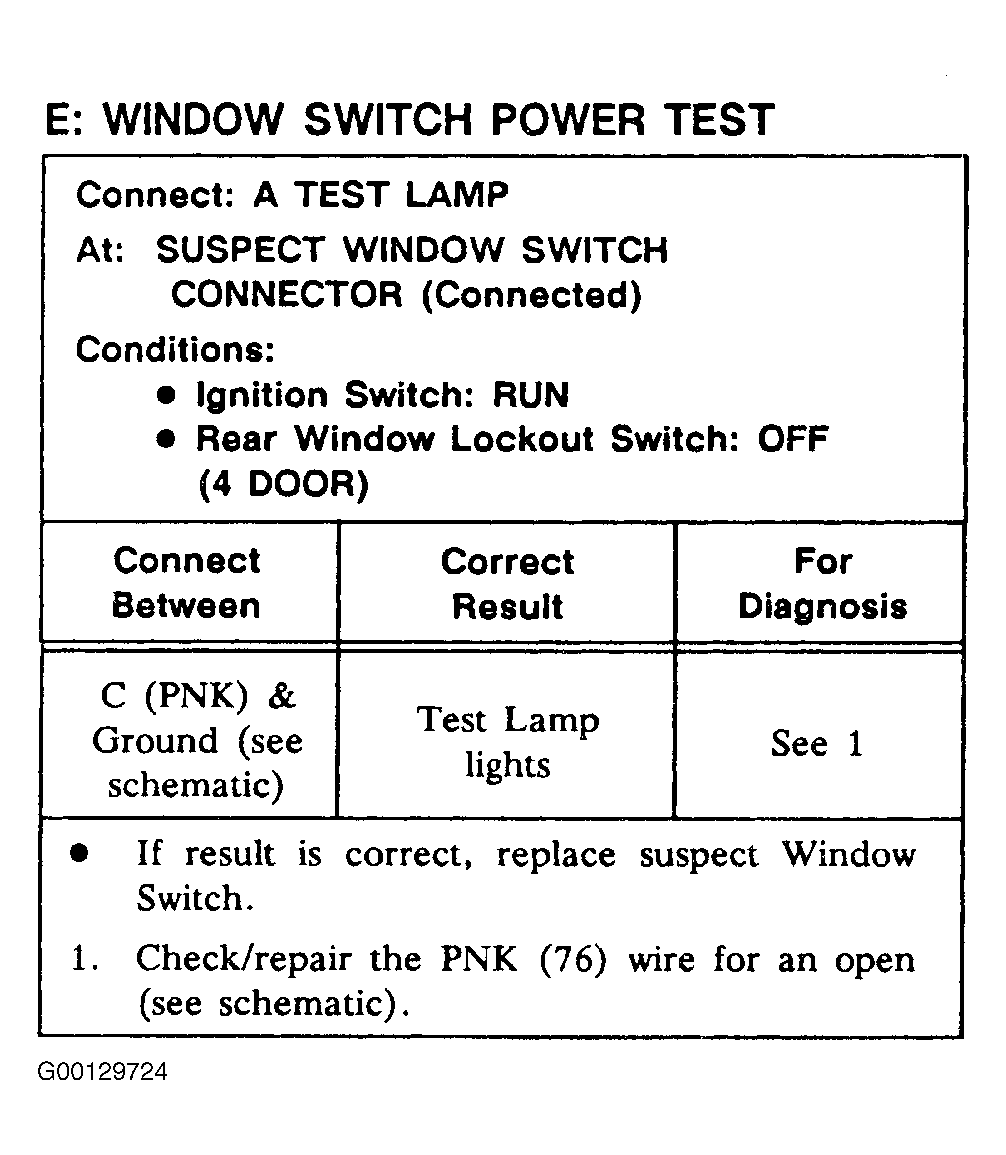

Fig 1: Test E: Window Switch Power
G00129724Courtesy of GENERAL MOTORS CORP.
