Test D: Power Door Locks Operate Normally, But Automatic Door Lock Feature Does Not Operate Properly

For test procedure, refer to illustration. See Fig 1 .

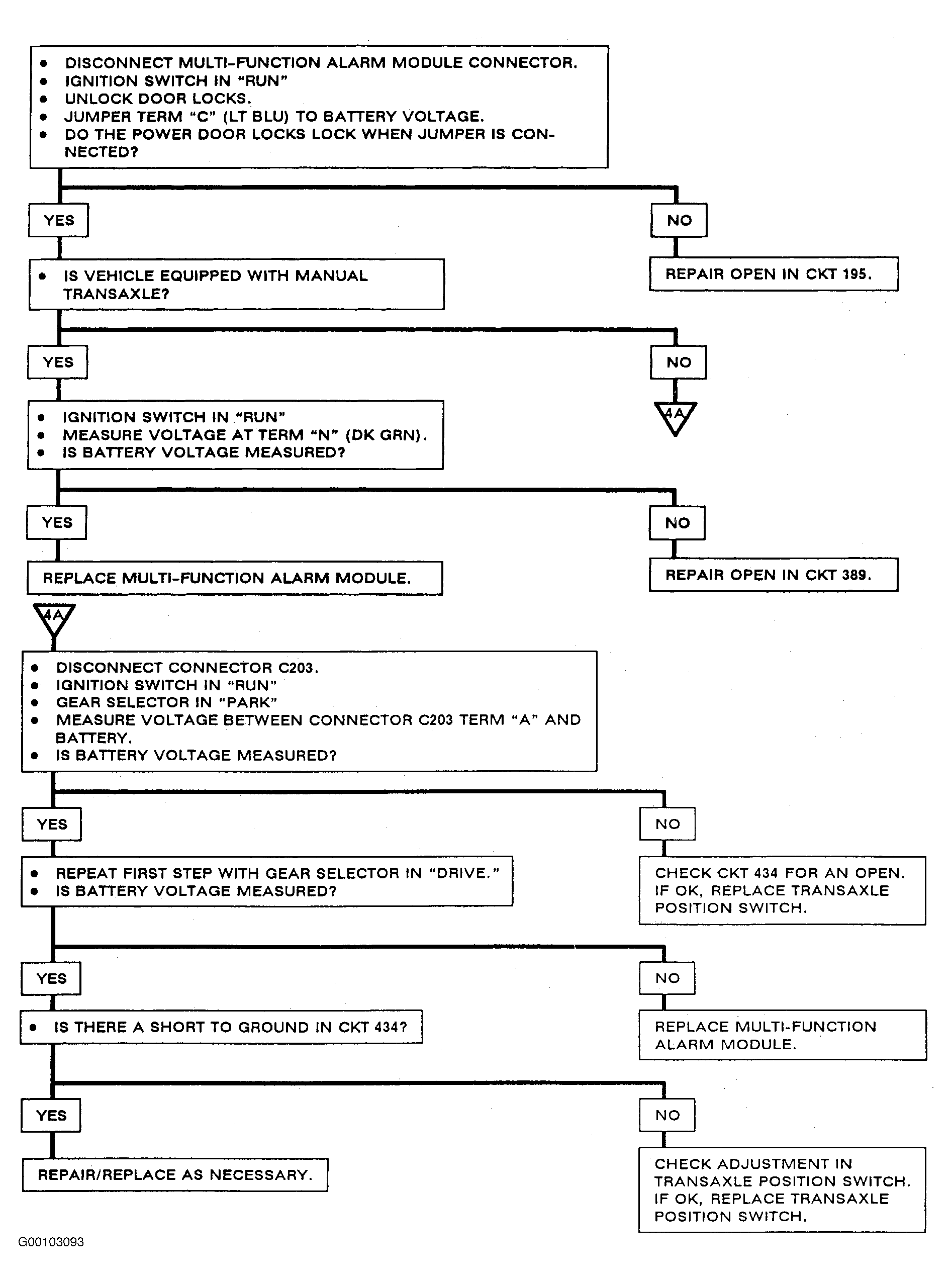

Fig 1: Test D: Power Door Locks Operate Manually, But Automatic Door Lock Feature Does Not Operate Properly

Courtesy of GENERAL MOTORS CORP.
