Component Locations

COMPONENT LOCATIONS

Component Location
Automatic Door Lock Relay Behind Instrument Panel, On Right Shroud. See Fig 1
Convenience Center Behind Instrument Panel, Near Top Of Left Shroud. See Fig 2
Door Lock Motor Upper Front Of Respective Door. See Fig 3
Engine Control Module (ECM) Behind Right Side Of Instrument Panel. See Fig 4
Fuse Block Behind Left Side Of Instrument Panel. See Fig 5
Multi-Function Alarm Module In Convenience Center
Transaxle Position Switch Top Left Side Of Transaxle. See Fig 6
C100 Upper Left Side Of Dash. See Fig 7
C200 Behind Instrument Panel, Near Left Shroud. See Fig 8
C203 (Cavalier) Behind Center Of Rear Seat, In Plastic Bag. See Fig 9
C205 (Sunbird) Lower Left Side Of Instrument Panel, At Convenience Center
C207 Behind right Side Of Instrument Panel, Near ECM. See Fig 4
C316 Behind Instrument Panel, Near Left Shroud. See Fig 10
C317 Behind Instrument Panel, Near Right Shroud. See Fig 10
G100 (Sunbird, VIN H) Rear Of Engine, To Right Of Starter Solenoid. See Fig 11
G100 (VIN T) Lower Left Front Of Engine, On Transmission Mount Stud. See Fig 12
G201 (Sunbird) On Instrument Panel Bracket, Above Steering Column. See Fig 8
S118 (Cavalier) Front Of Left Strut Tower, In Engine Harness. See Fig 13
S123 (Cavalier) Left Front Of Dash, In Engine Harness. See Fig 13
S171 (Sunbird) In Engine Harness, To Right Of Blower Motor. See Fig 14
S203 (Cavalier) In Instrument Panel Harness, Near Fuse Block.
S203 (Sunbird) In Instrument Panel Harness, To Left Of Speaker. See Fig 5
S212 In Crossbar Harness, Near Upper Part Of Right Shroud. See Fig 1
S213 In Crossbar Harness, Near Upper Part Of Right Shroud. See Fig 1
S217 In Engine Harness, At Right Rear Of Engine Compartment. See Fig 15
S221 In Instrument Panel Harness, Near Left Side Of Instrument Cluster. See Fig 5
S230 In Crosscar Harness, Near Upper Part Of Left Shroud. See Fig 8
S257 In Instrument Panel Harness, Behind Left Side Of Instrument Panel, Near Left Speaker. See Fig 5
S258 In Crosscar Harness, At Upper Part Of Left Shroud. See Fig 8
S314 In Crosscar Harness, Near Upper Part Of Right Shroud. See Fig 16
S315 In Crosscar Harness, Near Upper Part Of Right Shroud. See Fig 16
S316 (Cavalier) In Crosscar Harness, Near Upper Part Of Right Shroud. See Fig 17
S317 (Cavalier) In Crosscar Harness, Near Upper Part Of Right Shroud. See Fig 17

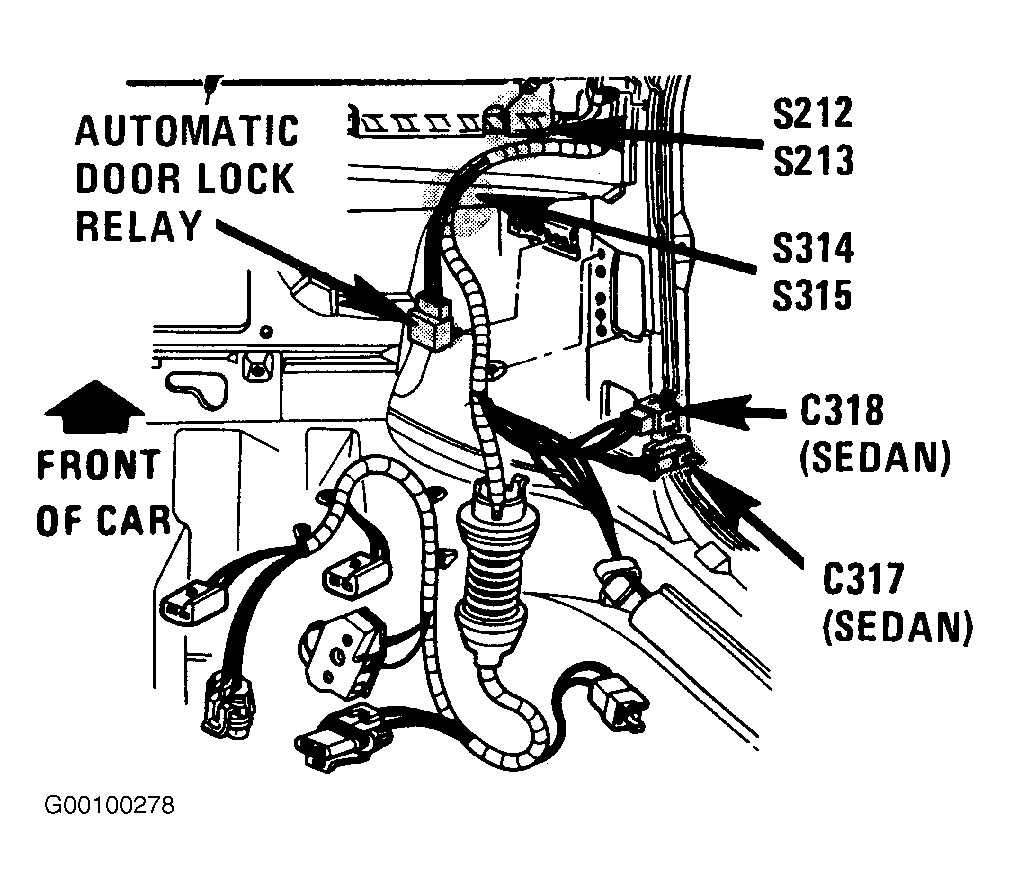

Fig 1: Locating Right Shroud Components (Sedan & Coupe)
G00100278Courtesy of GENERAL MOTORS CORP.

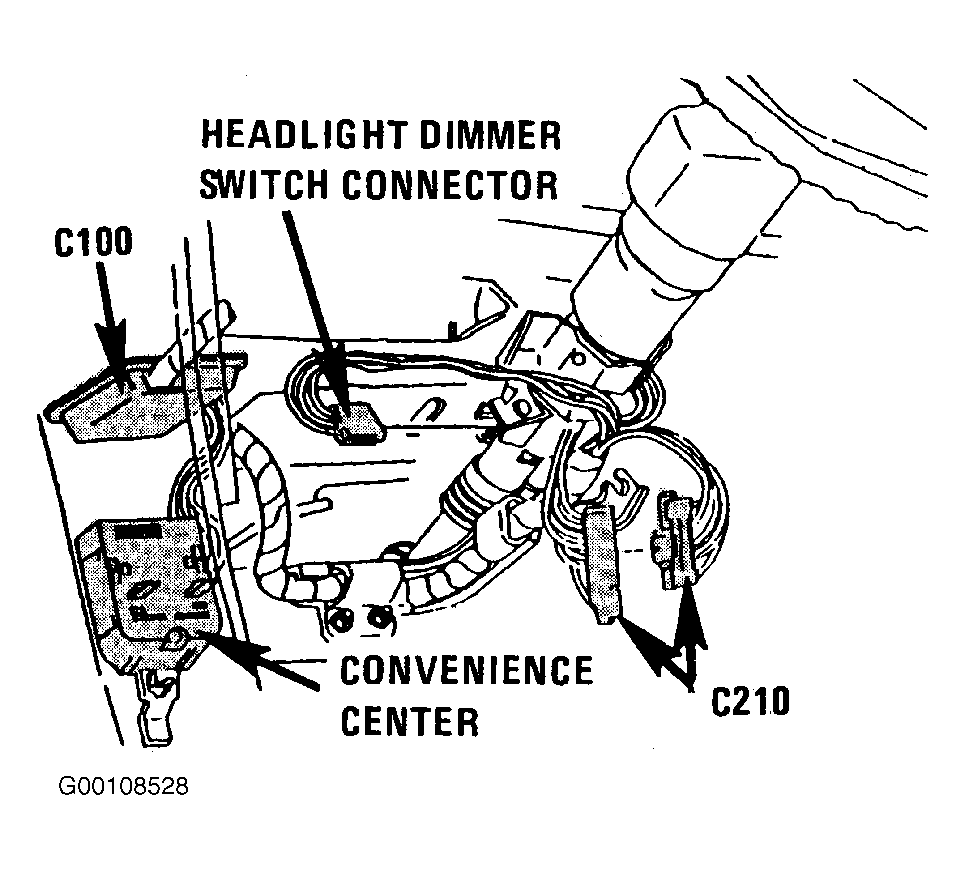

Fig 2: Locating Lower Left Side Of Instrument Panel Components
G00108528Courtesy of GENERAL MOTORS CORP.
Fig 3: Locating Left Front Door Components (Sedan, Right Similar)
G00100279Courtesy of GENERAL MOTORS CORP.

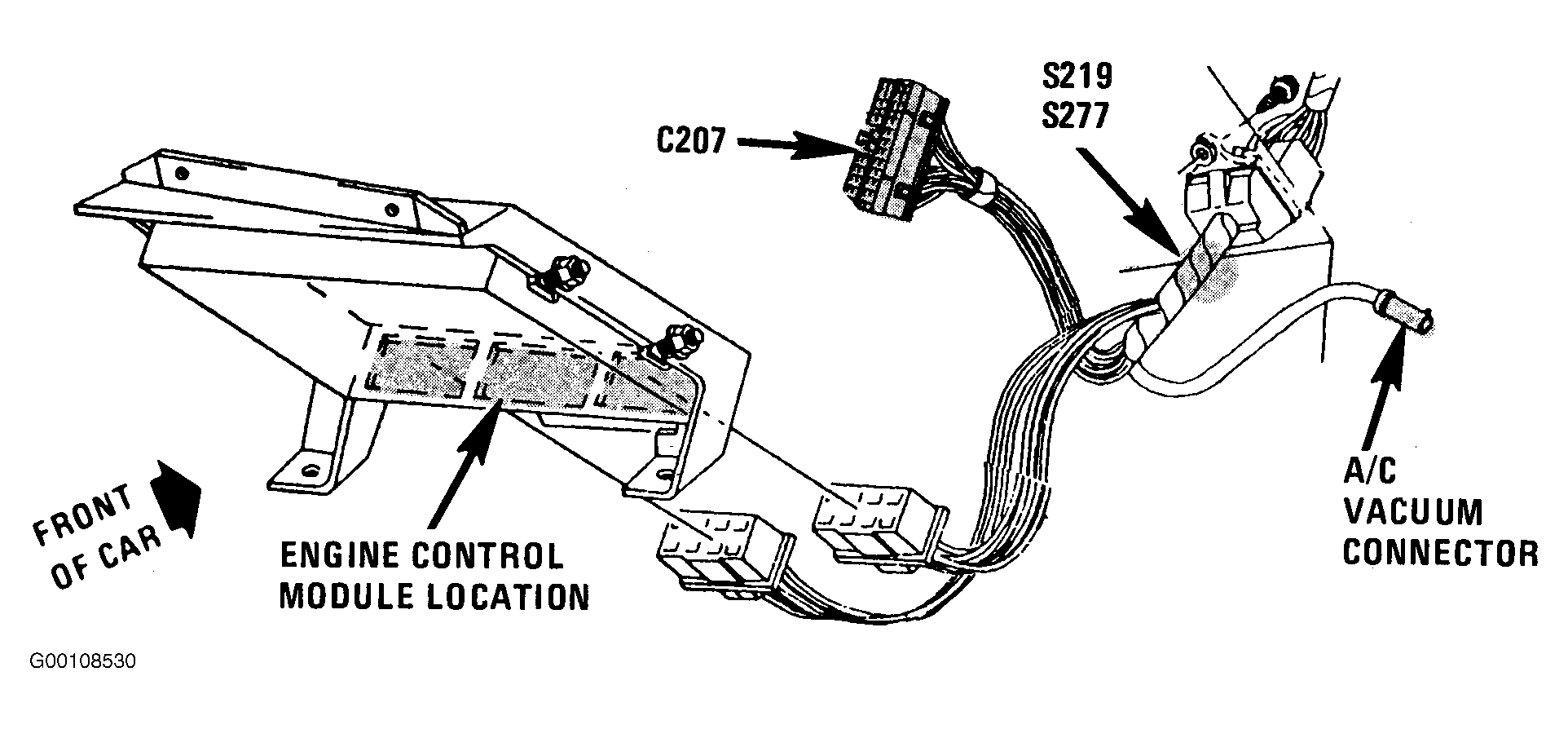

Fig 4: Locating Components Behind Right Side Of Instrument Panel (VIN H Shown; VIN T Similar)
G00108530Courtesy of GENERAL MOTORS CORP.

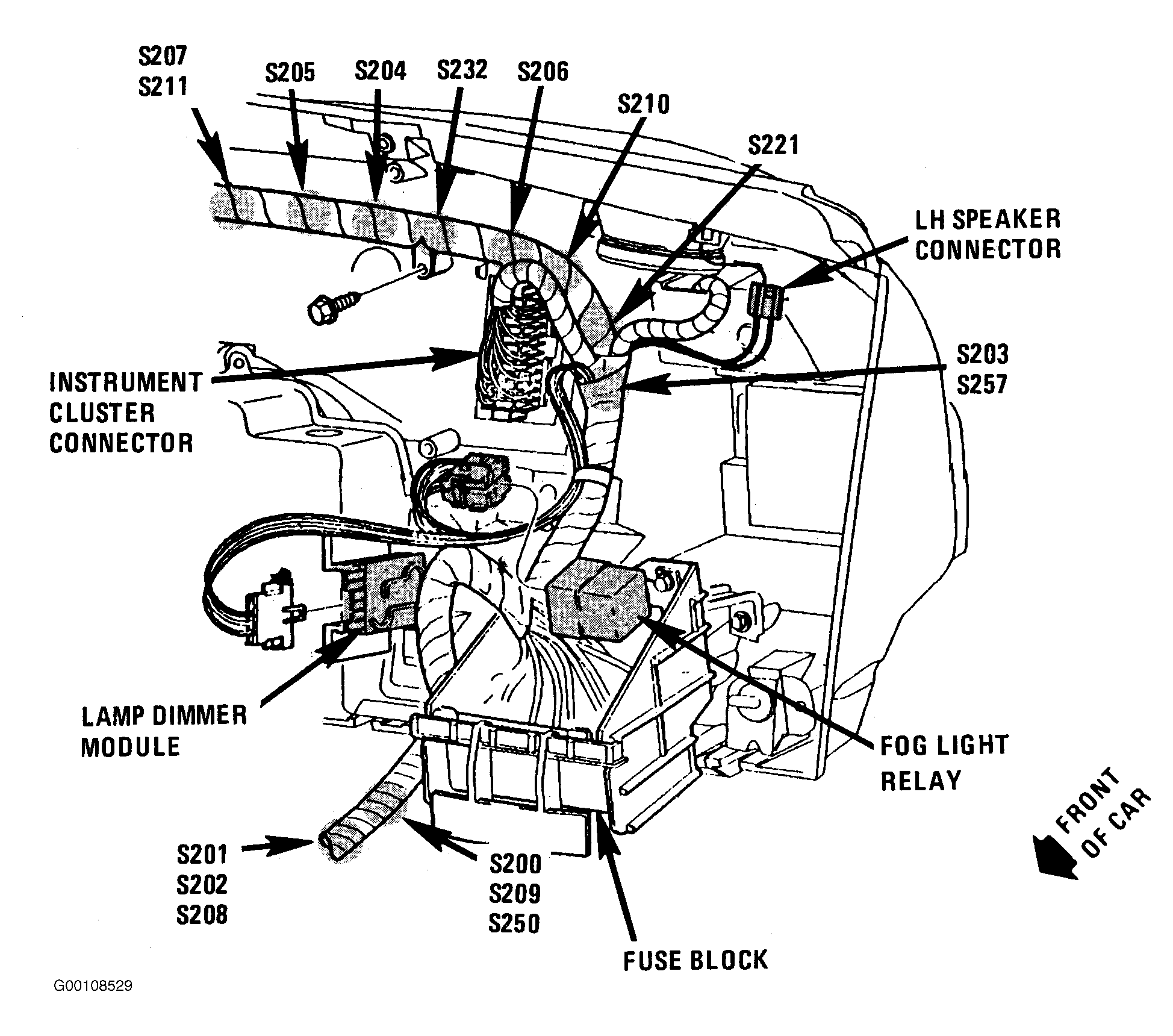

Fig 5: Locating Left Rear Side Of Instrument Panel Components (Sunbird)
G00108529Courtesy of GENERAL MOTORS CORP.

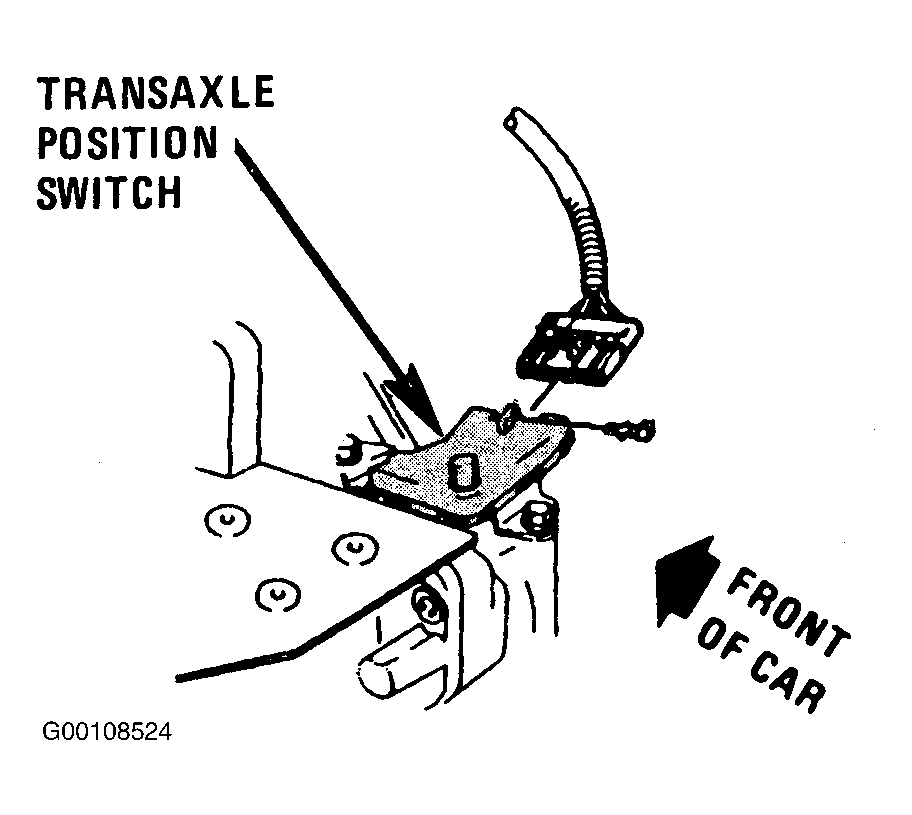

Fig 6: Locating Components Rear Of Engine (VIN H, Automatic)
G00108524Courtesy of GENERAL MOTORS CORP.

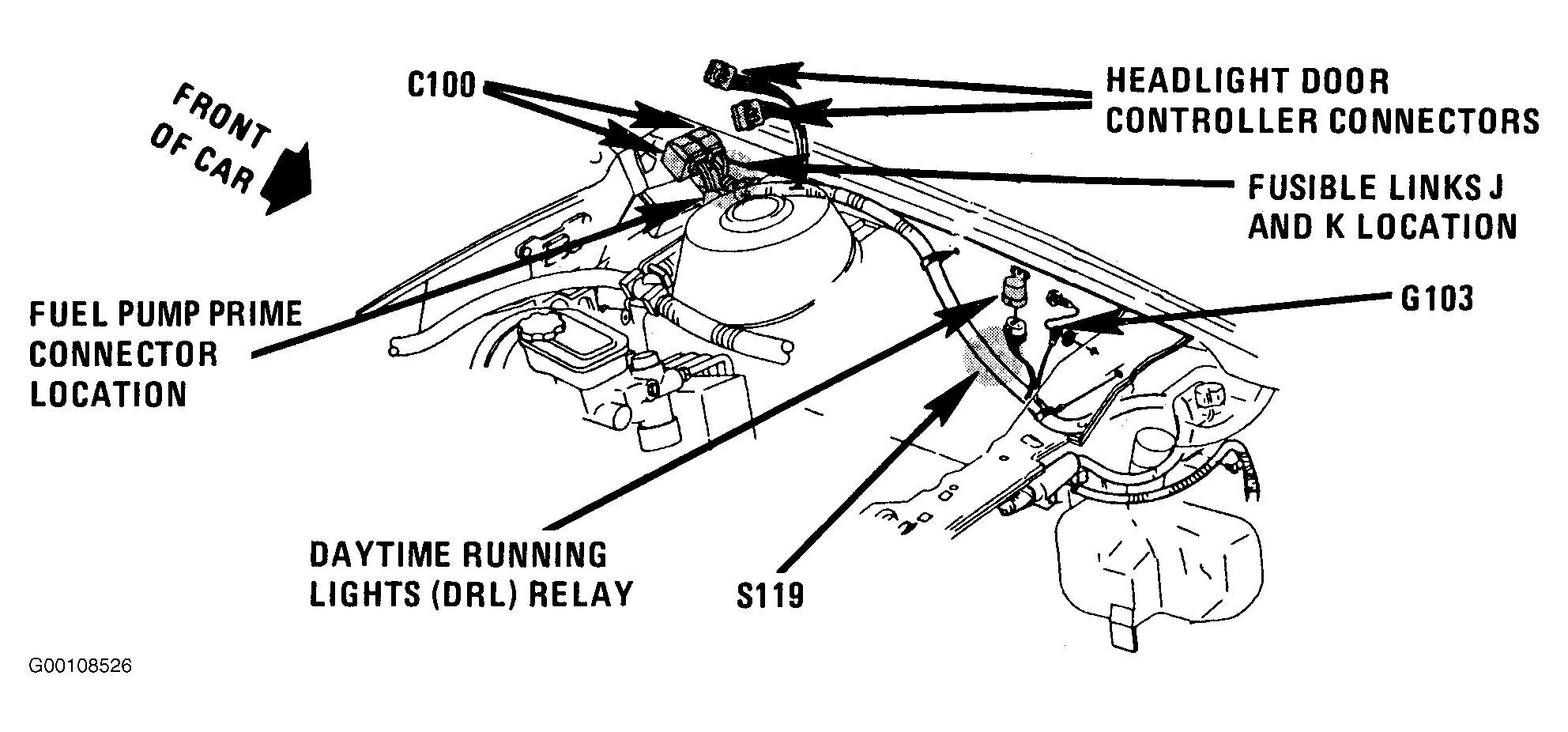

Fig 7: Locating Left Side Of Engine Compartment Components
G00108526Courtesy of GENERAL MOTORS CORP.

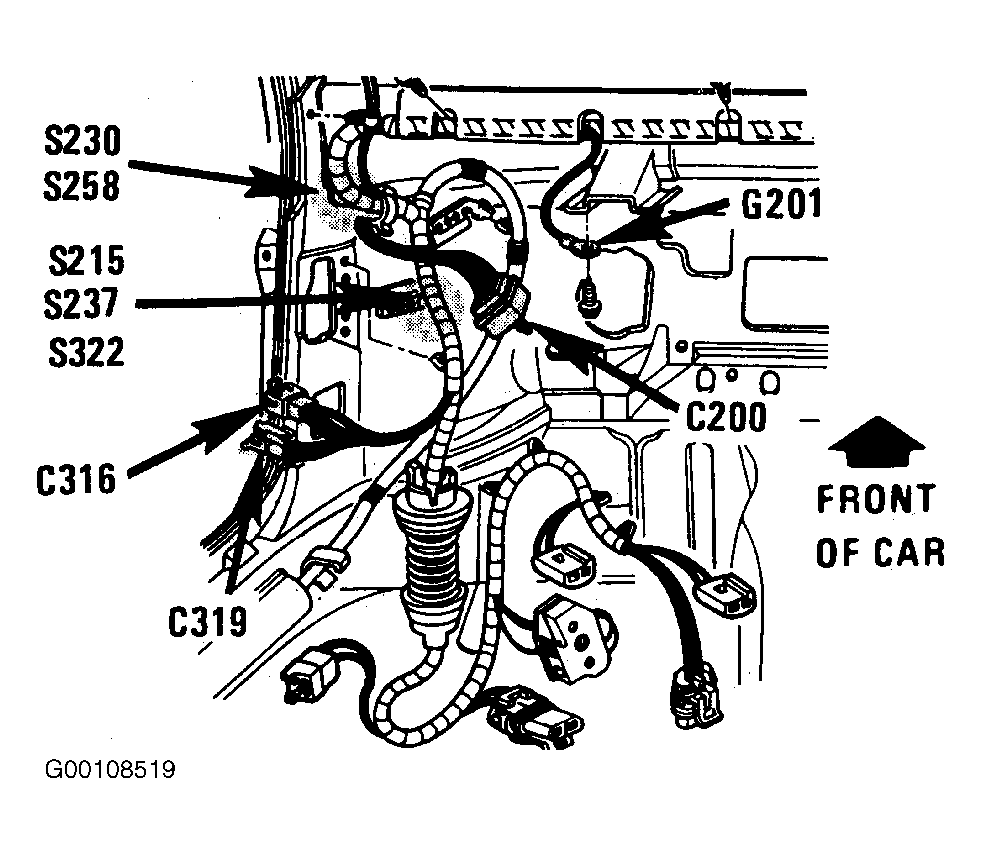

Fig 8: Locating Left Shroud Components (Sedan & Coupe, Sunbird)
G00108519Courtesy of GENERAL MOTORS CORP.

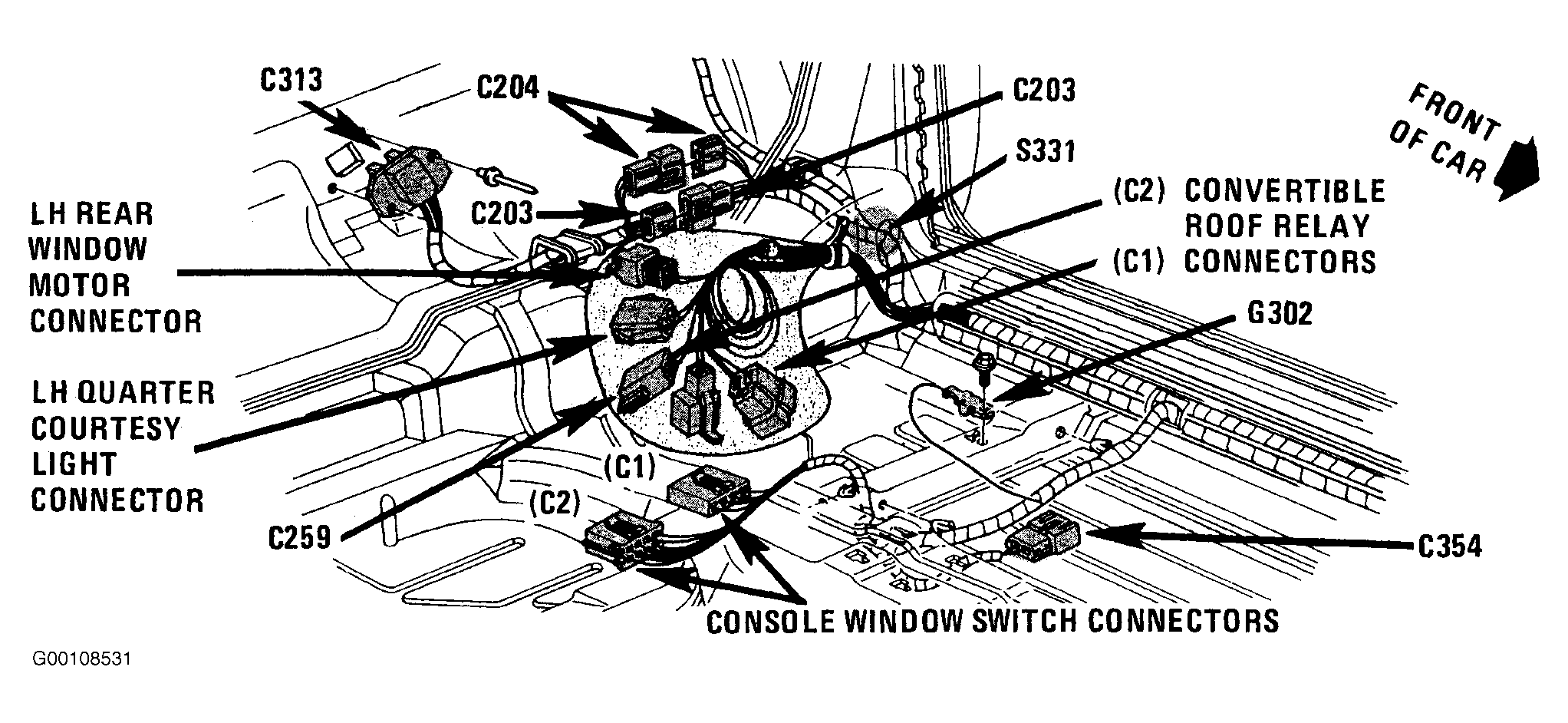

Fig 9: Locating Components Rear Of Passenger Compartment (Convertible, Cavalier)
G00108531Courtesy of GENERAL MOTORS CORP.

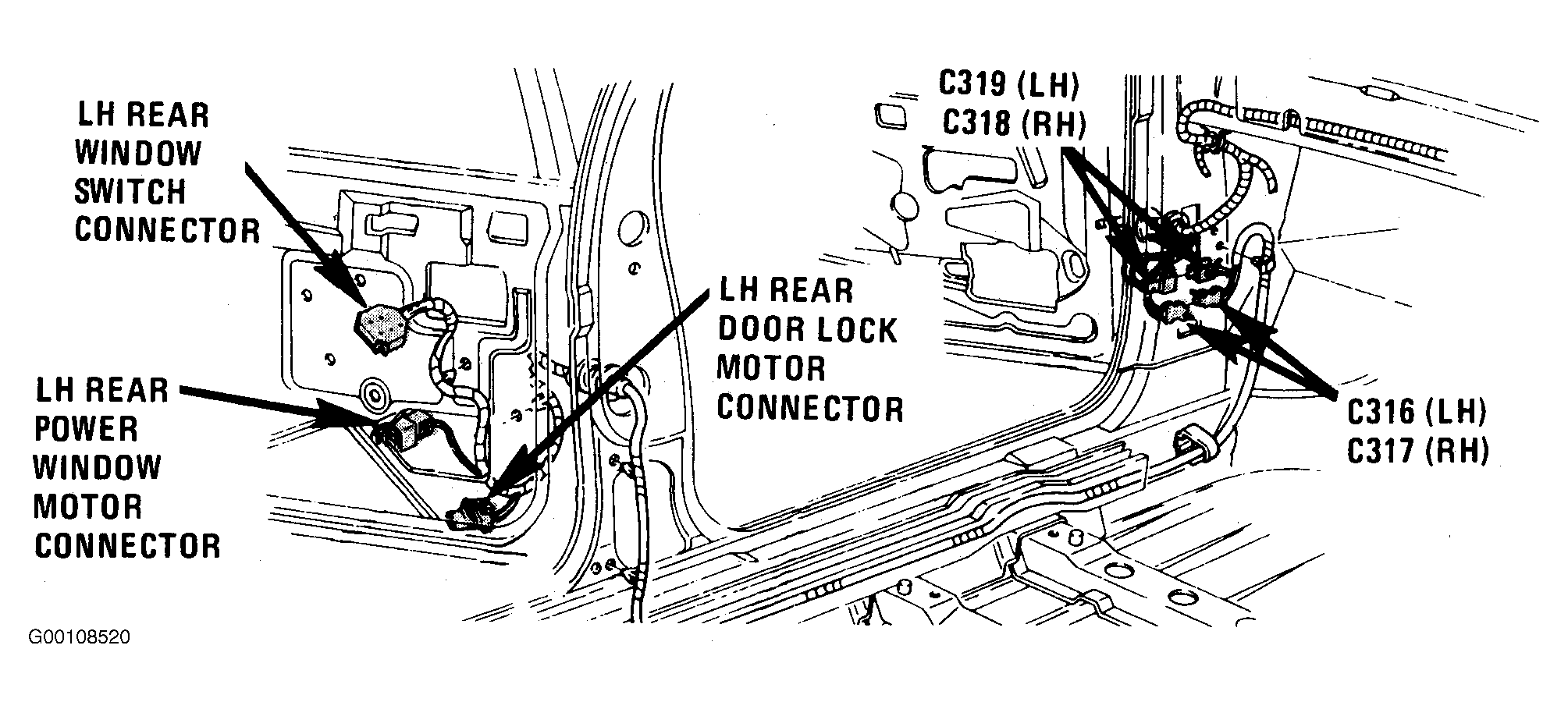

Fig 10: Locating Left Rear Door Components (Sedan, Right Side Similar)
G00108520Courtesy of GENERAL MOTORS CORP.

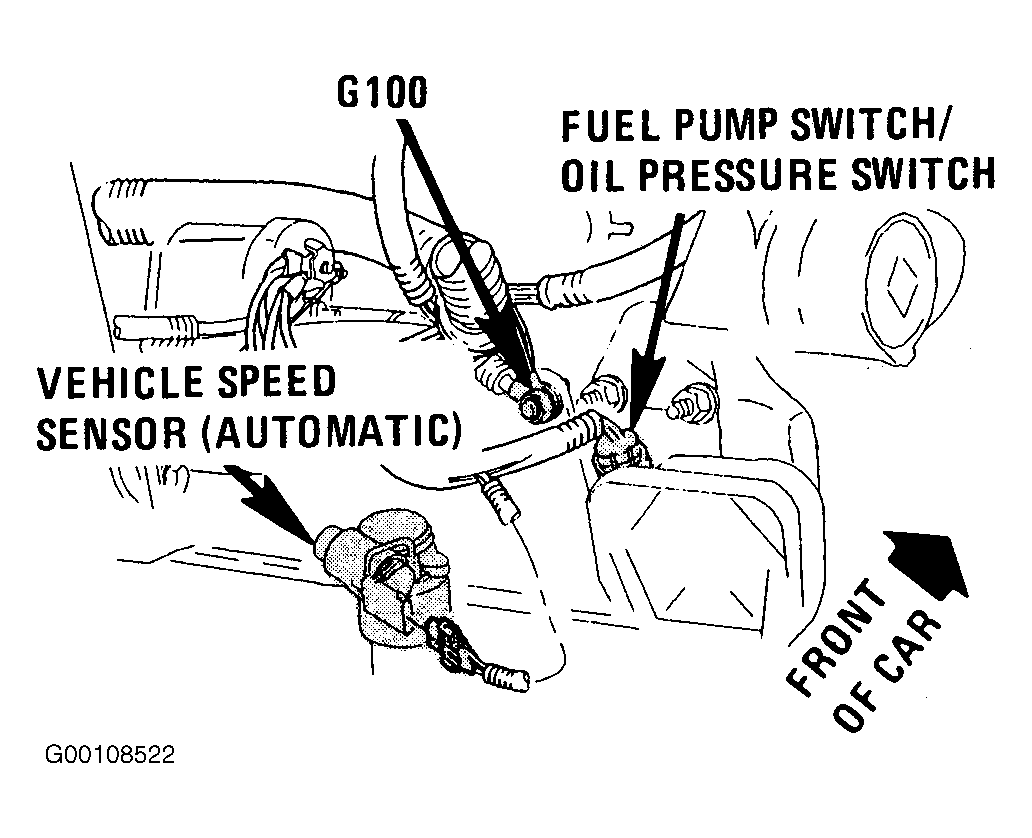

Fig 11: Locating Rear Of Engine Components (Sunbird, VIN H)
G00108522Courtesy of GENERAL MOTORS CORP.

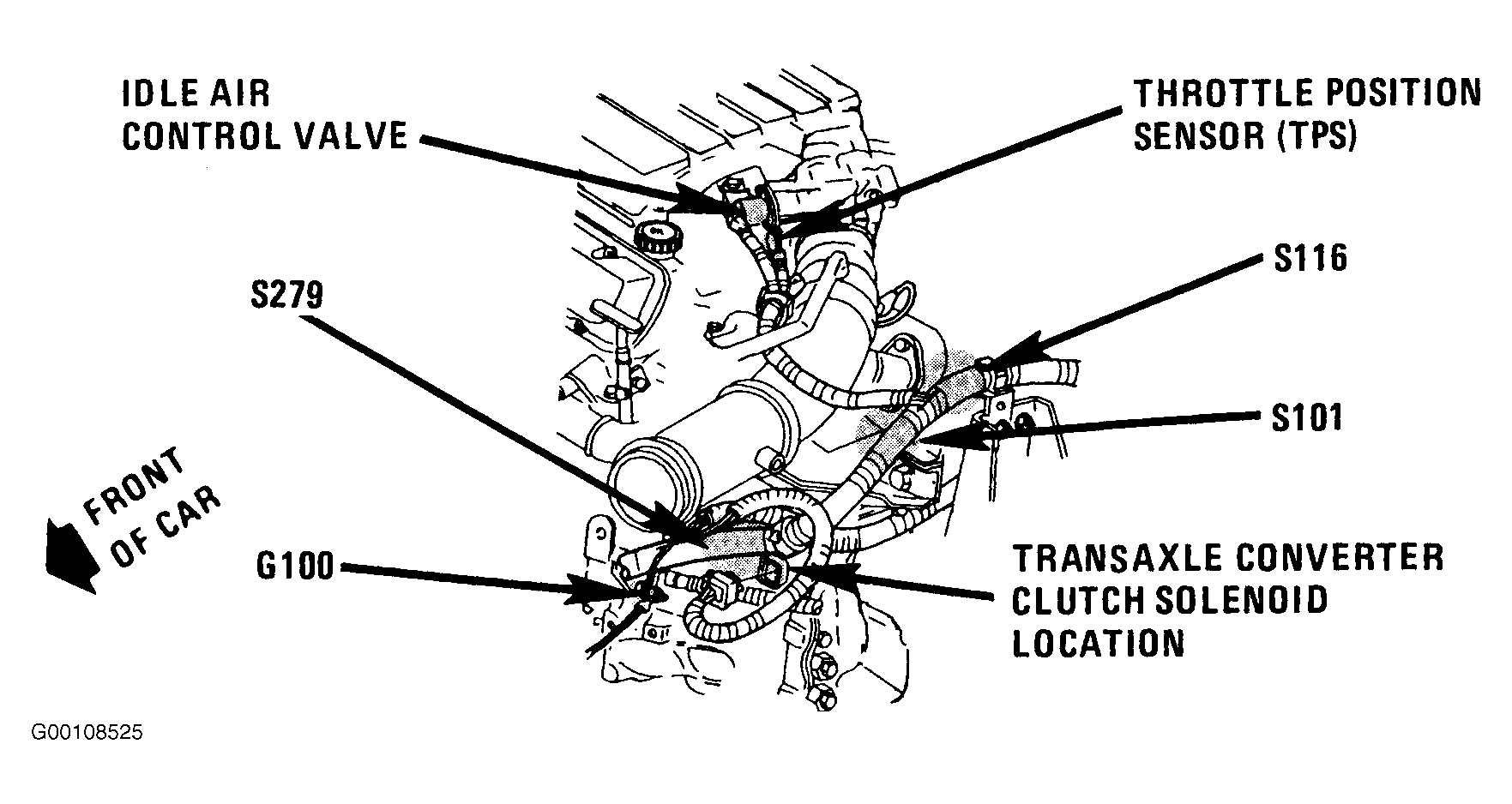

Fig 12: Locating Left Side Of Engine Components (VIN T)
G00108525Courtesy of GENERAL MOTORS CORP.

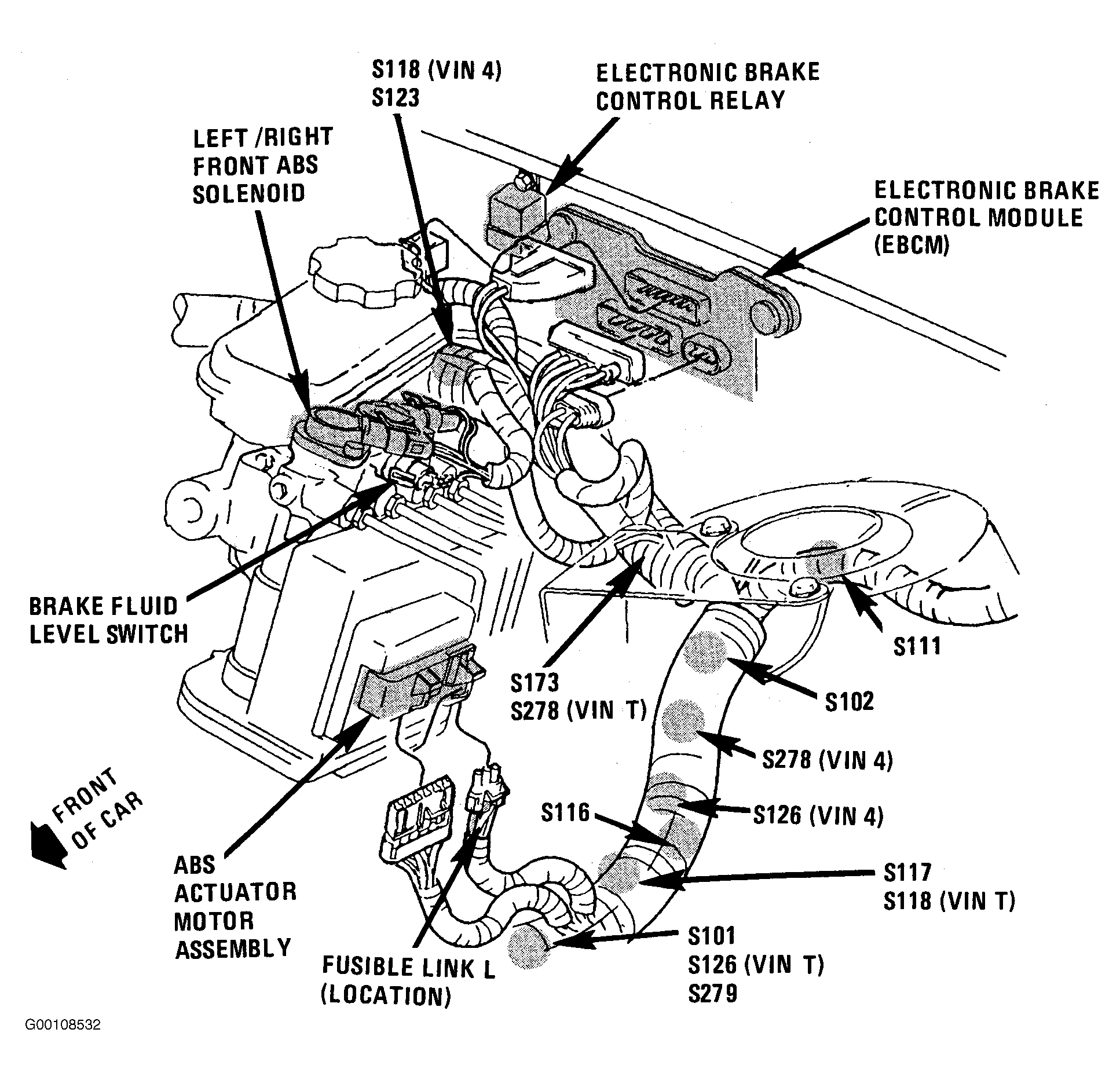

Fig 13: Locating Left Rear Of Engine Compartment Components (Cavalier)
G00108532Courtesy of GENERAL MOTORS CORP.

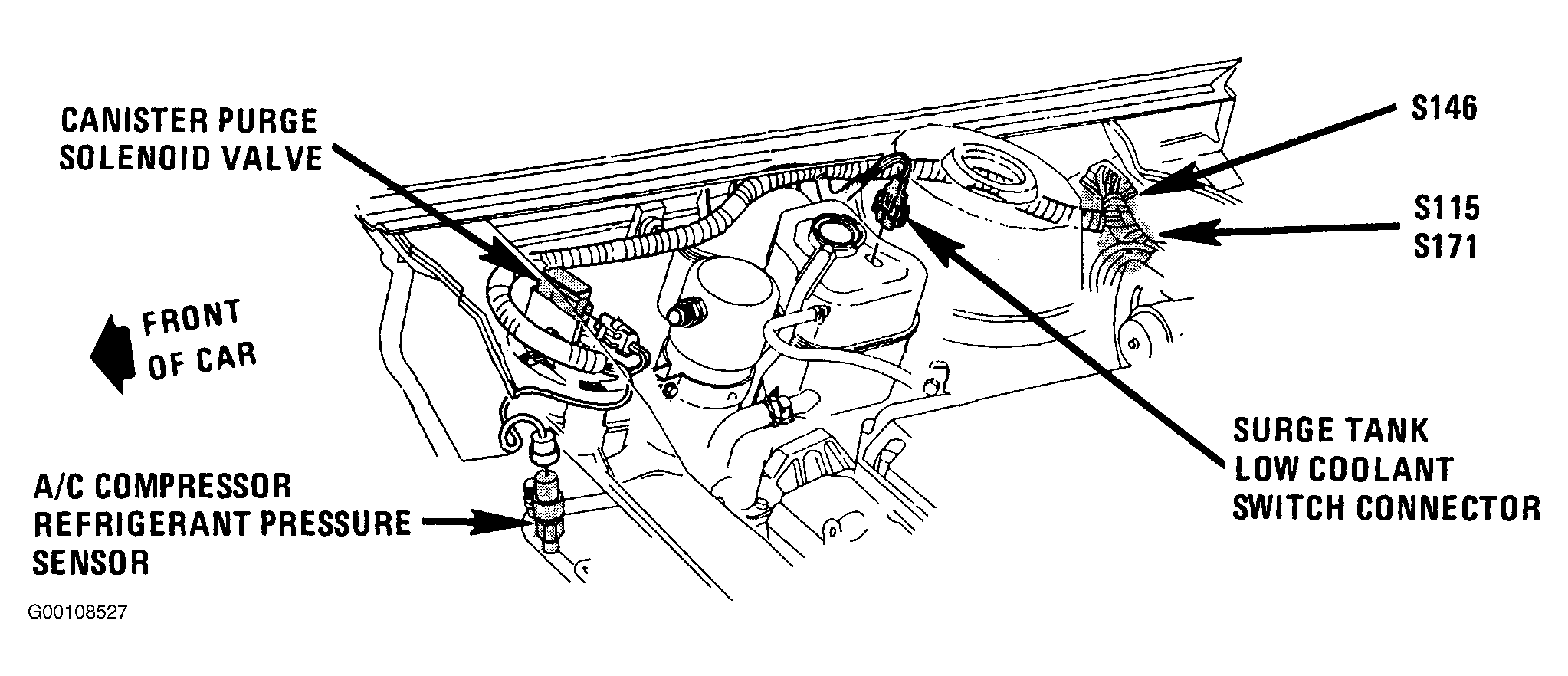

Fig 14: Locating Right Side Of Engine Compartment Components (Sunbird, VIN T)
G00108527Courtesy of GENERAL MOTORS CORP.

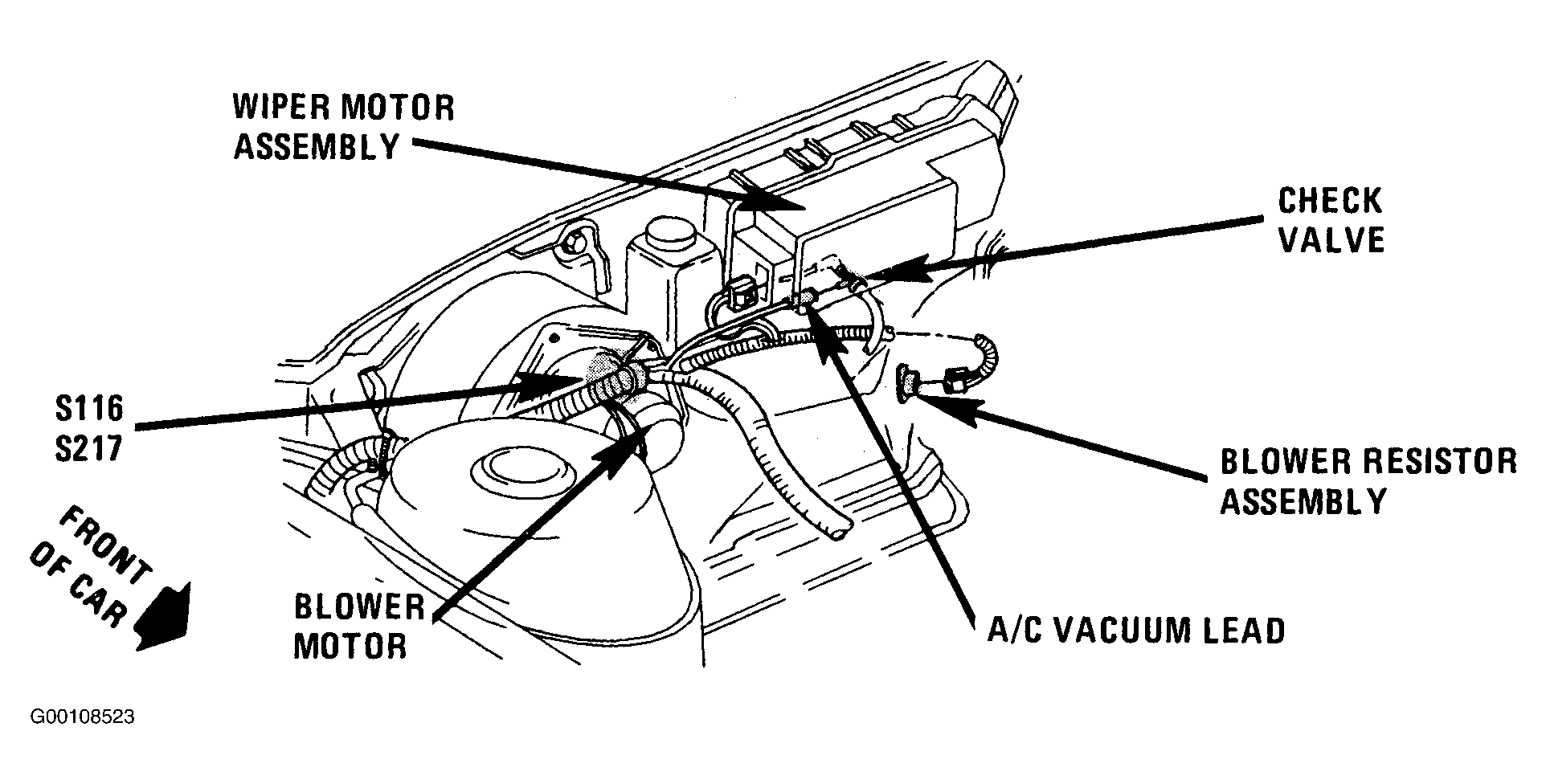

Fig 15: Locating Center Of Dash Components (Sunbird, VIN H)
G00108523Courtesy of GENERAL MOTORS CORP.

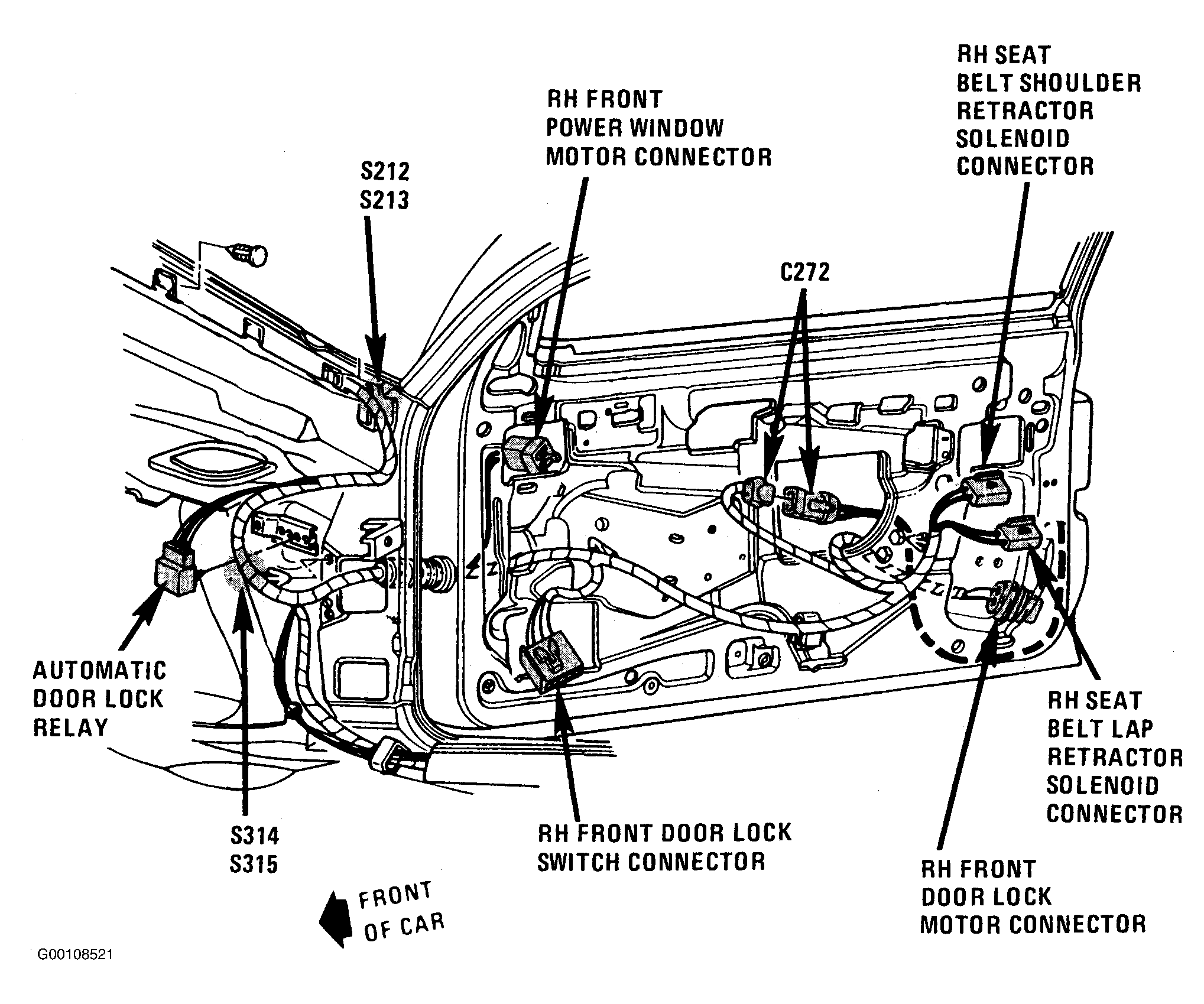

Fig 16: Locating Right Front Door Components (Convertible)
G00108521Courtesy of GENERAL MOTORS CORP.

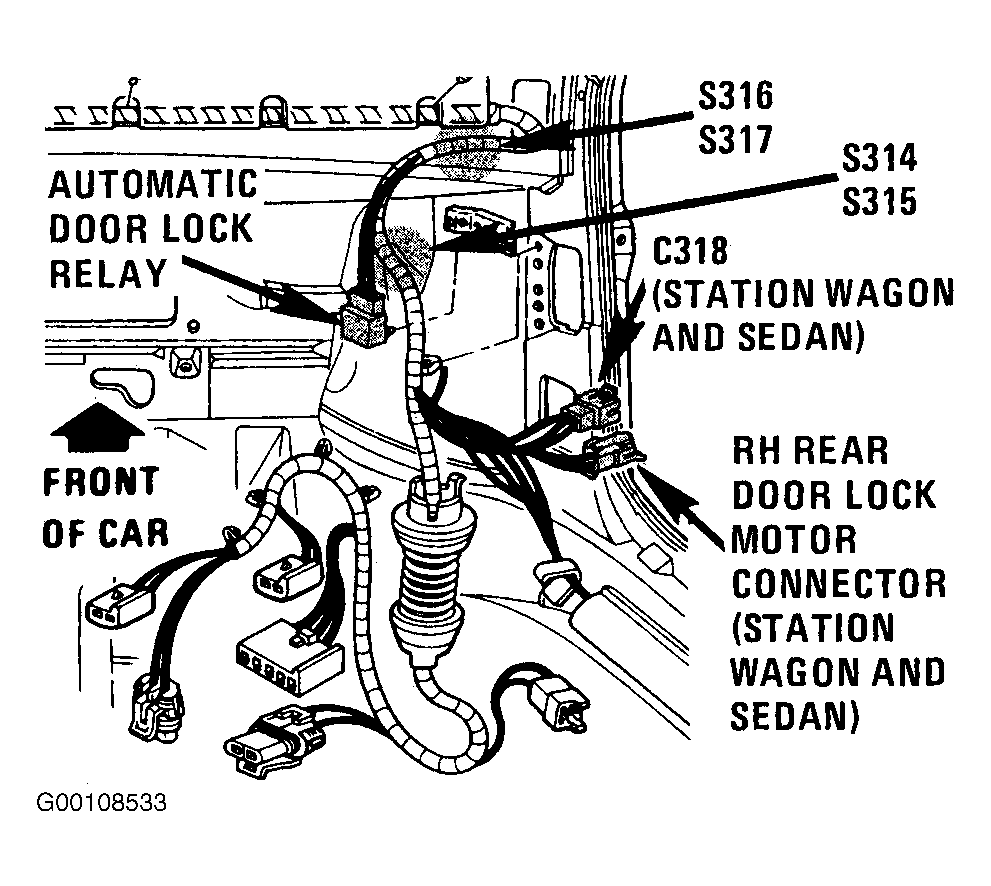

Fig 17: Locating Right Shroud Components (CavalierStation Wagon Shown; Other Similar)
G00108533Courtesy of GENERAL MOTORS CORP.
