Outside Mirror Face: Installation

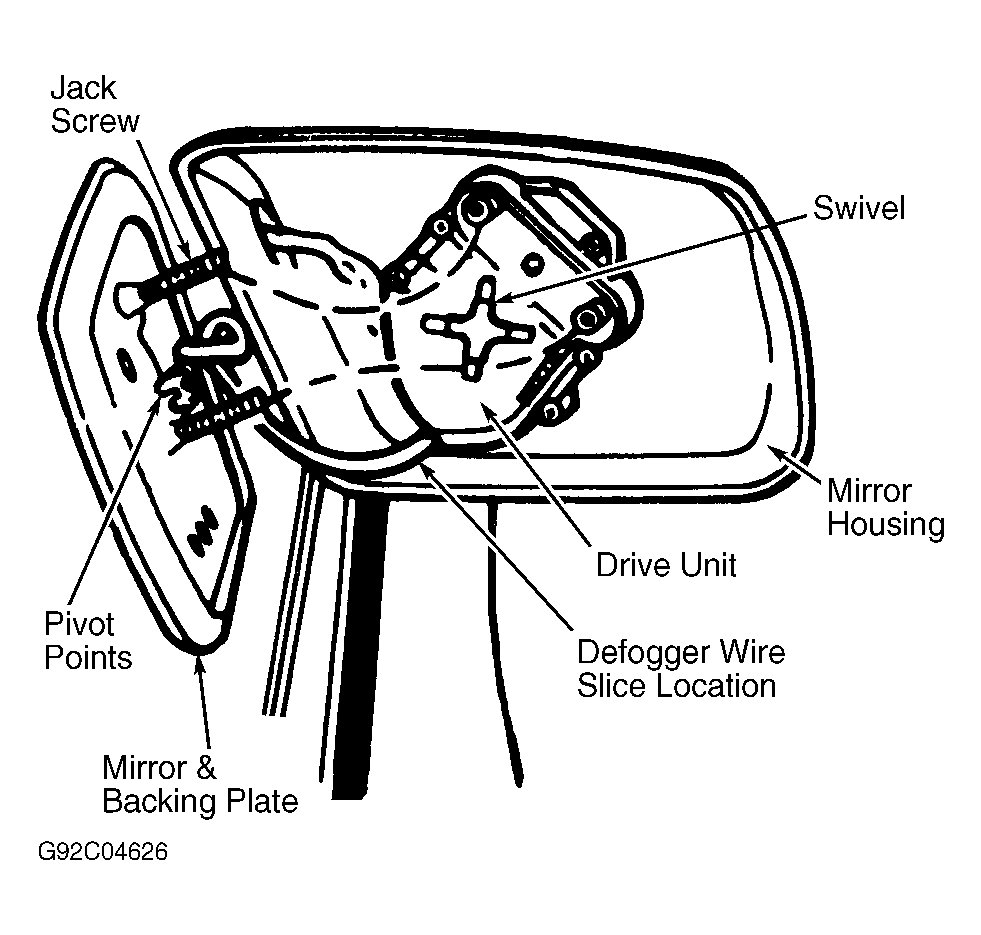

If equipped with left outside mirror defogger, splice wires together at splice location. Snap jack screws into NEW mirror backing plate. Align jack screws-to-drive unit and drive unit swivel-to-pivot points on mirror backing plate. Push mirror and backing plate assembly into housing until assembly clicks into place.
