EXPERTEC TSB (92-75-7A)

WARNING: This page is about the C3500 HD 5.7 K, Automatic, which is a different variant/trim than selected.

Publication date: 1992-01-06
Reference number: 92-75-7A

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 92-75-7A, Date of Issue: 01/06/92

01/06/1992

Chevrolet 92-75-7A

EARLY TRANSMISSION CONVERTER CLUTCH APPLY

Model and Year: 1992 S/T TRUCKS WITH 4.3L ENGINE AND 4L60 AUTOMATIC TRANSMISSION

-----------------------------------------------------------------------------

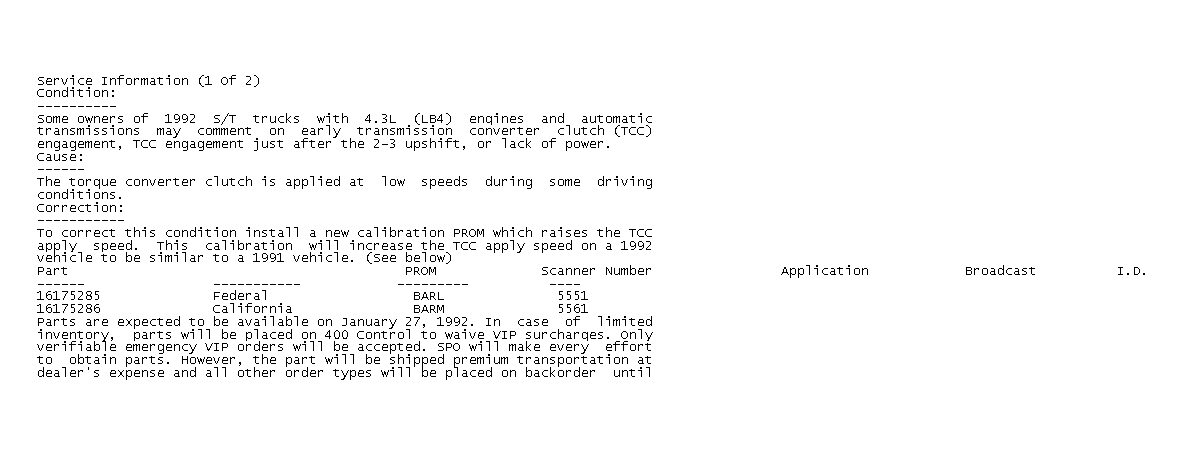

Fig 1: Service Information (1 Of 2)

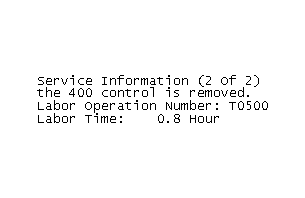

Fig 2: Service Information (2 Of 2)
