Test C: Left Power Window Does Not Operate Or Only Goes In One Direction

For testing procedure, see Fig 1 .

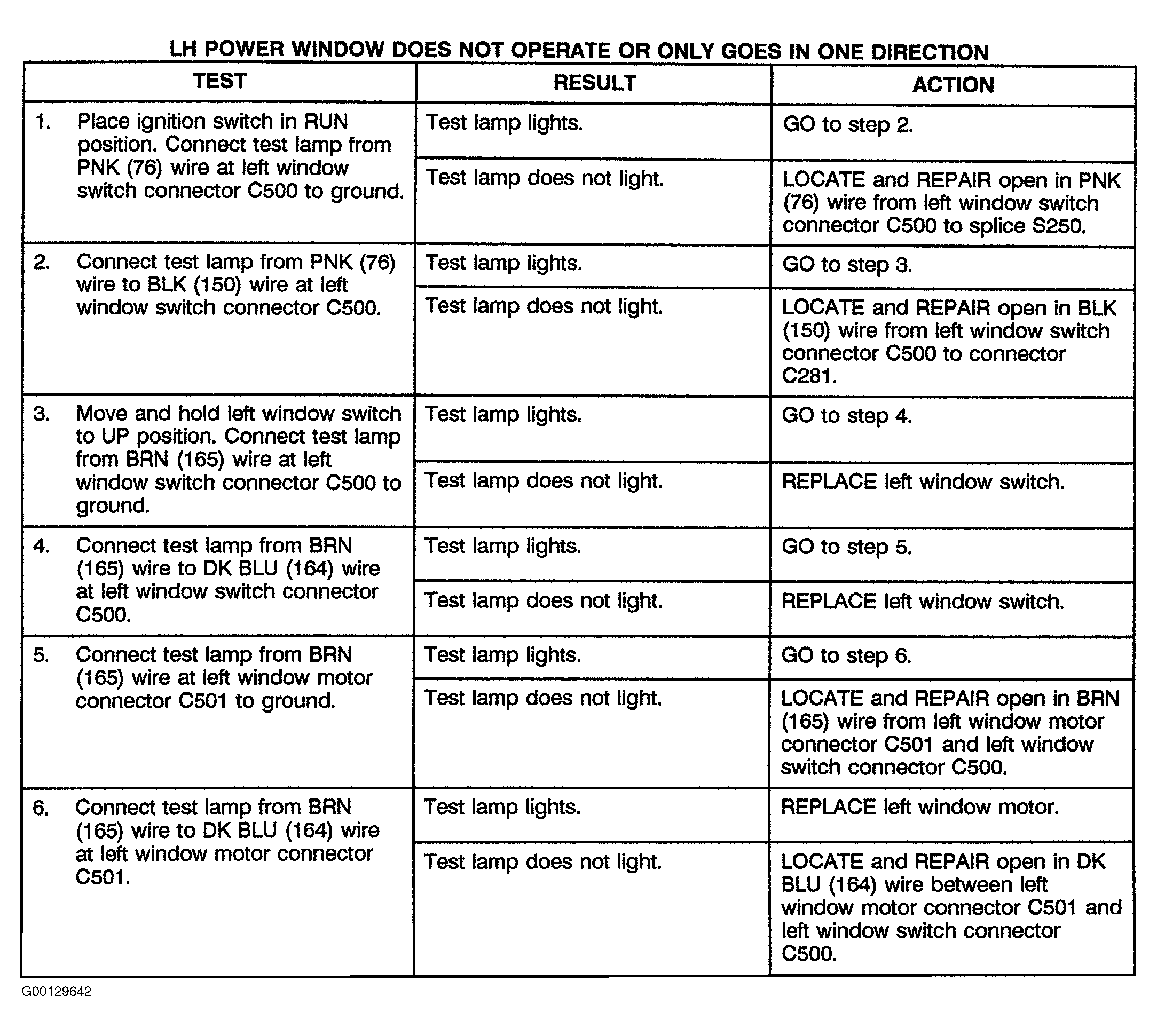

Fig 1: Left Window Does Not Operate Or Only In One Direction
G00129642Courtesy of GENERAL MOTORS CORP.
