Window Regulator: Installation
- Install motor to the regulator.

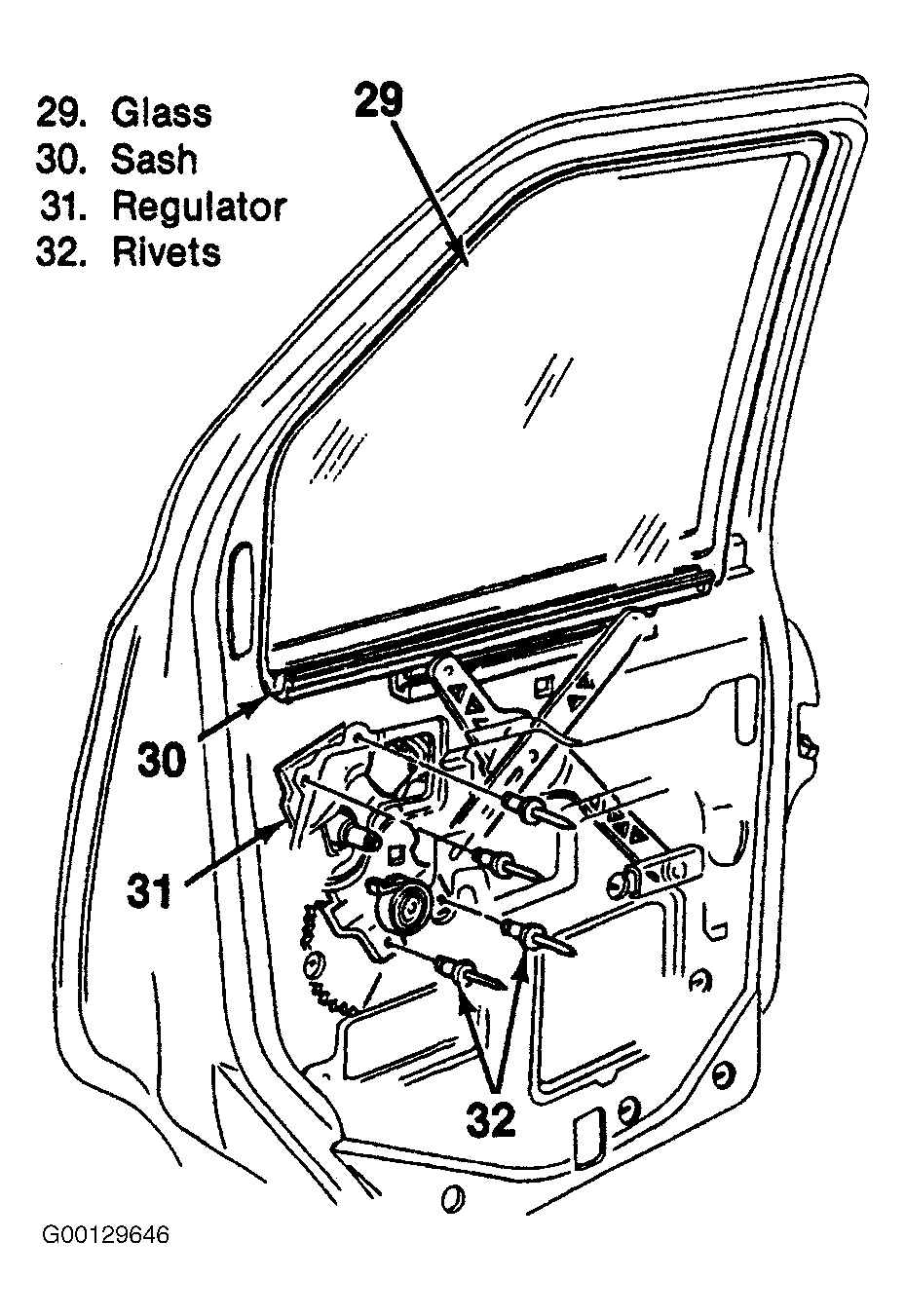

- Install regulator (31) to the door. See Fig 1
.
- Place the regulator into the door through the access hole.
- Place the regulator arm rollers into the sash (30) and the regulator rail.
- Push the regulator through the regulator door opening and align the holes in the regulator with the holes in the door.
- Install fasteners. Use a 6 mm (1/4") diameter bolt, 13 mm (1/2") long with a spring washer, and nut to attach the regulator to the door.
- Connect wiring harness from the regulator motor.
- Install armrest bracket and water deflector.
- Install door trim panel.
- Connect negative battery cable.
NOTE:
Remove the tape from the door and the window.
