Trim Panel: Installation

  1. Fit trim panel (3) to door. Place the window seal portion of the panel over the door frame. See Fig 2 .
  2. Install trim panel retainers (5).
  3. Install screw (4).
  4. Install trim panel retainers (5) to the door.
  5. Install door handle cover (1) to the door. See Fig 1 .
  6. Install window handle.
  7. Install armrest.

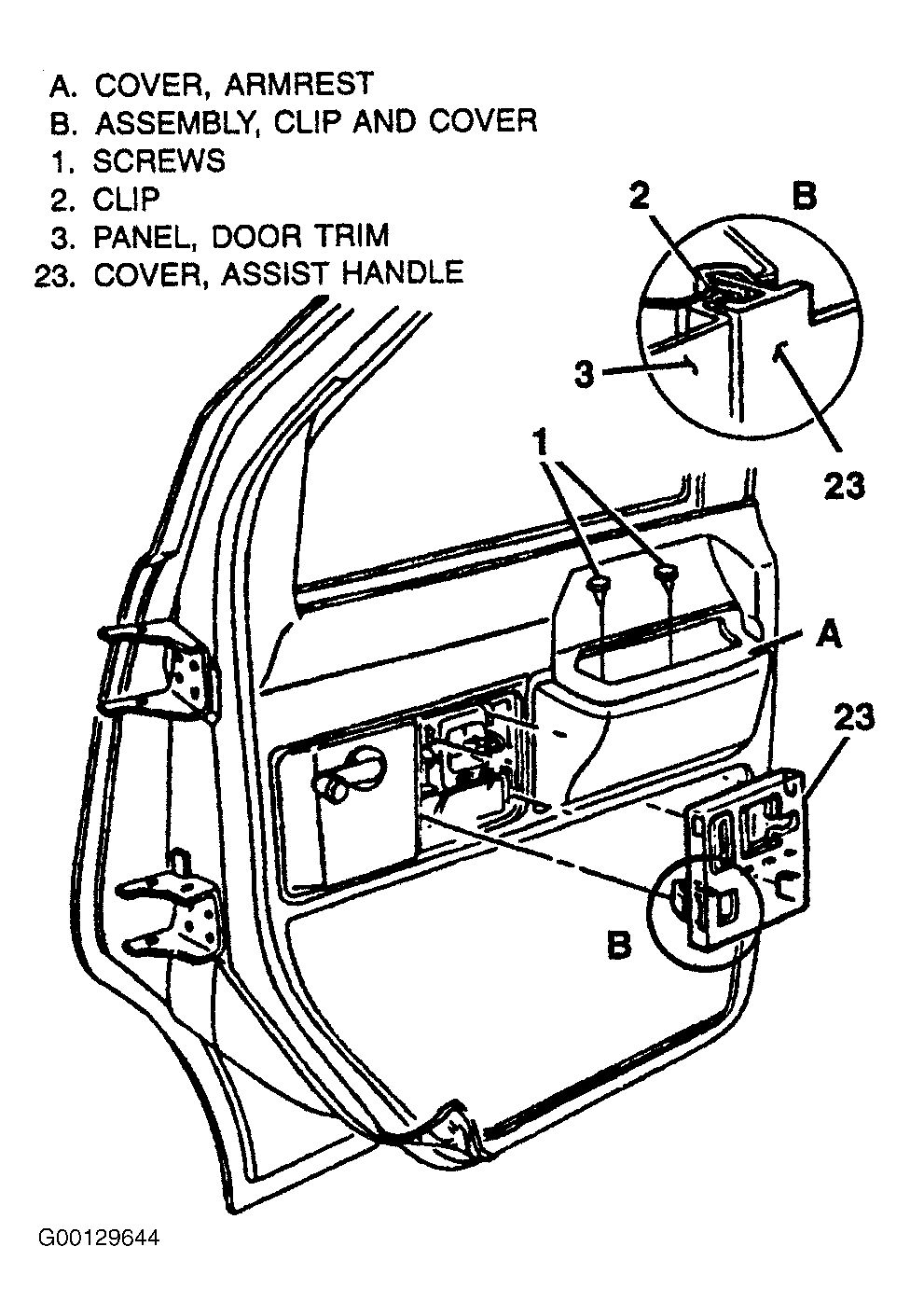

Fig 1: Removing/Installing Assist Handle Cover
G00129644Courtesy of GENERAL MOTORS CORP.

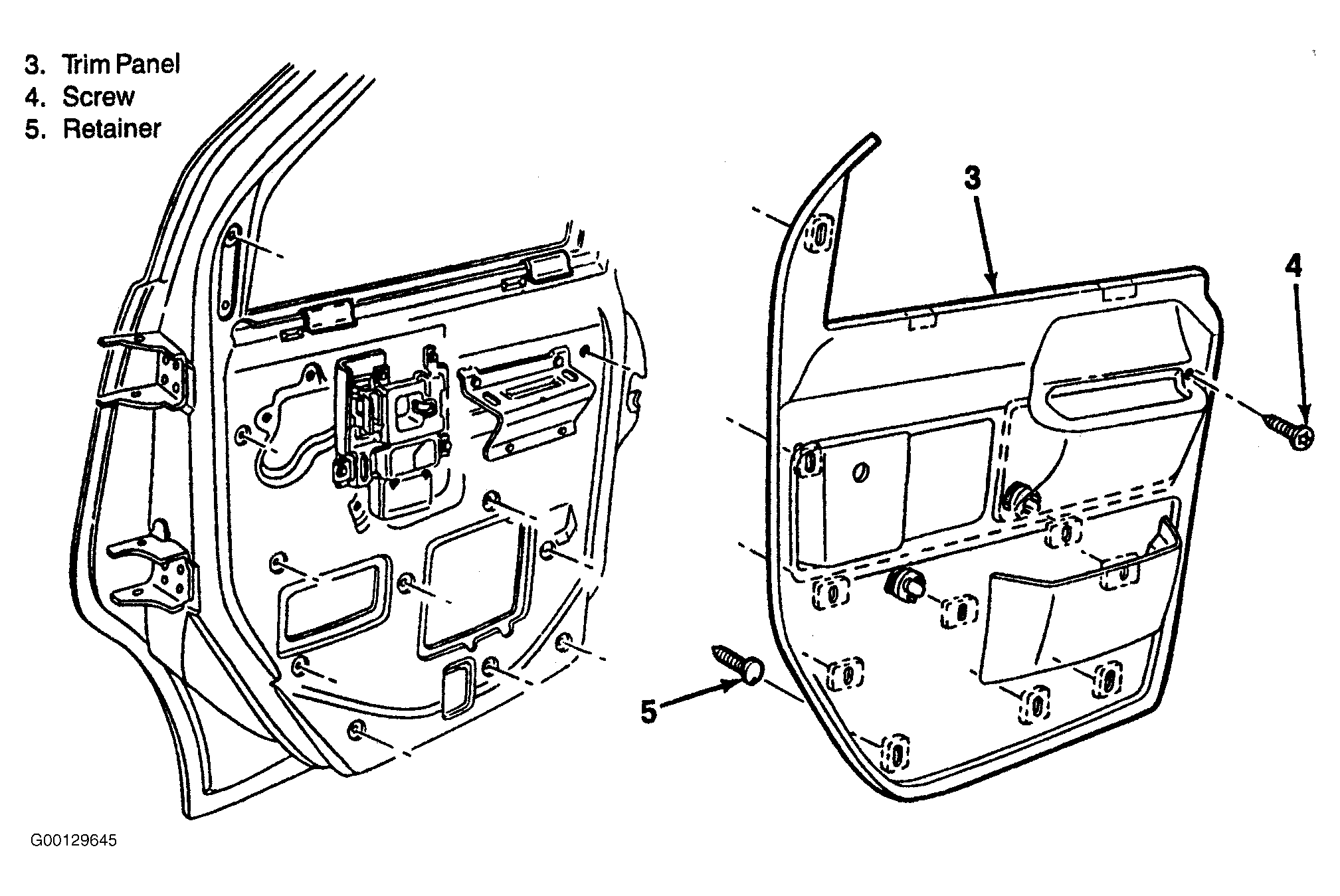

Fig 2: Removing/Installing Front Door Trim Panel
G00129645Courtesy of GENERAL MOTORS CORP.
