Diagnostic Aids

An intermittent Code A082 may be caused by a bad cell in EEPROM that is sensitive to temperature changes. If Code A082 set more than once, but is intermittent, replace EBCM. Frequency of problem can be checked by using Enhanced Diagnostic feature of Tech 1. See ENHANCED DIAGNOSTICS under DIAGNOSIS & TESTING .

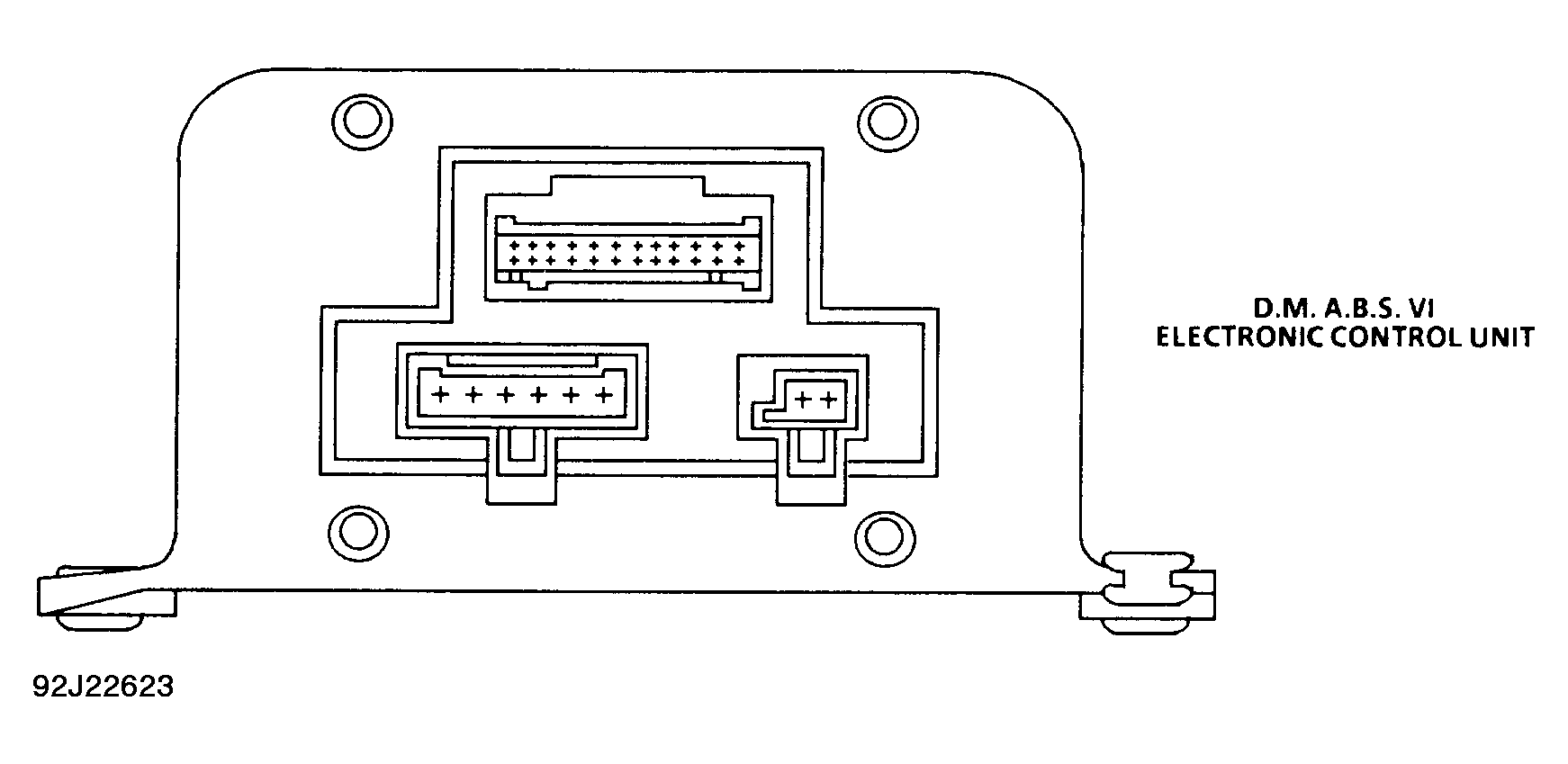

Fig 1: Code A082, Schematic, Calibration Memory Failure

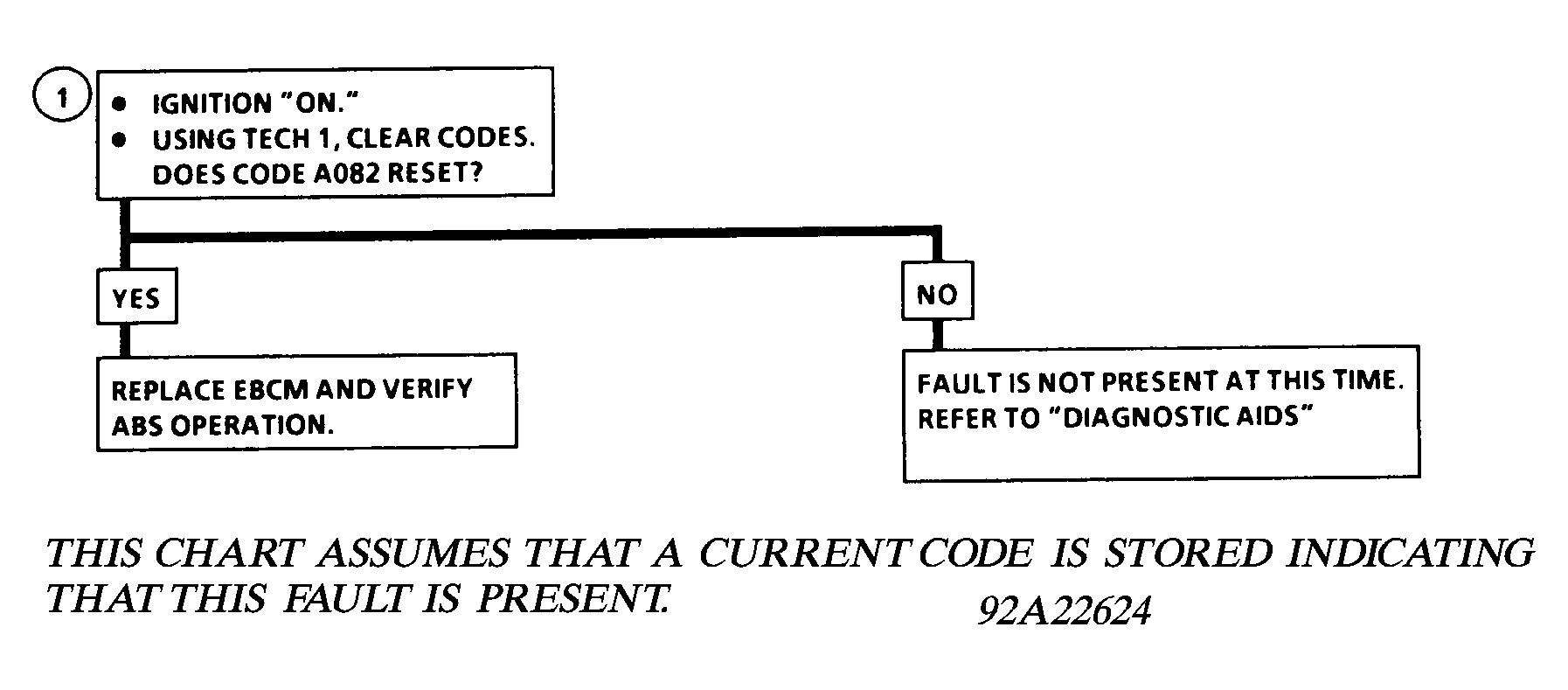

Fig 2: Code A082, Flow Chart, Calibration Memory Failure
