Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Auto. Seat Belt Module | Behind right side instrument panel. | |
| Chime Module | Behind right side of dash, in convenience center. See Figure . | |
| Cruise Control Module | Behind instrument cluster, to left of brake pedal support. | |
| Distributorless Ignition System (DIS) Module | ||
| 2.5L | On left rear of engine, below intake manifold. See Figure . | |

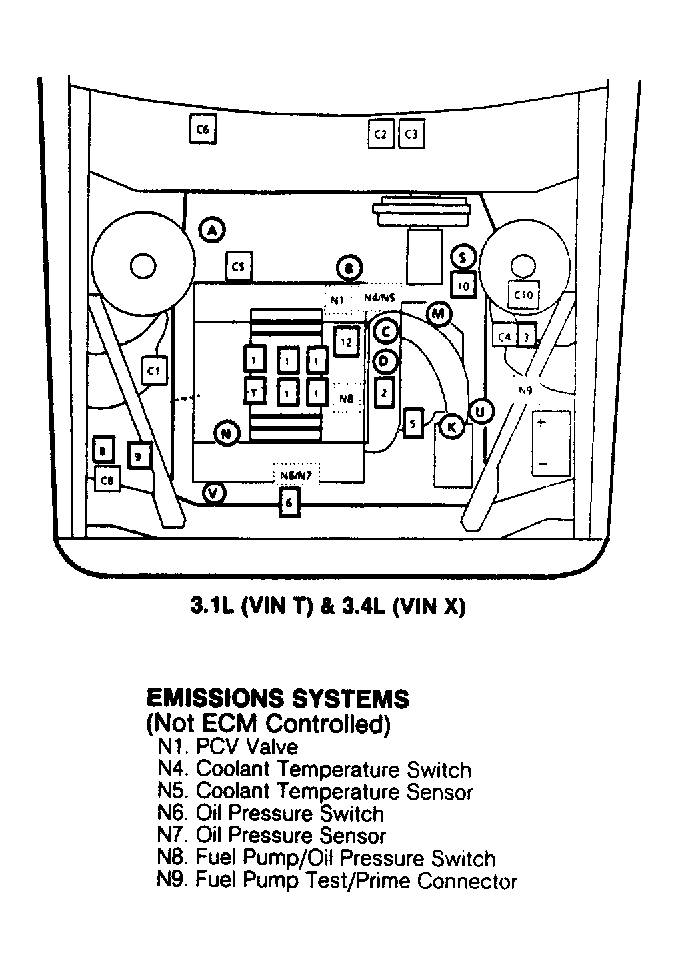

| 3.1L & 3.4L | On left front of engine, above starter assembly. See Figure . | |
| Electronic Control Module (ECM) | In engine compartment, in front of right strut tower. | |
| Seat Belt Timer Control Module | Behind right side of dash, in convenience center. | |
