Window Motor Test

To perform test, see Fig 1 .

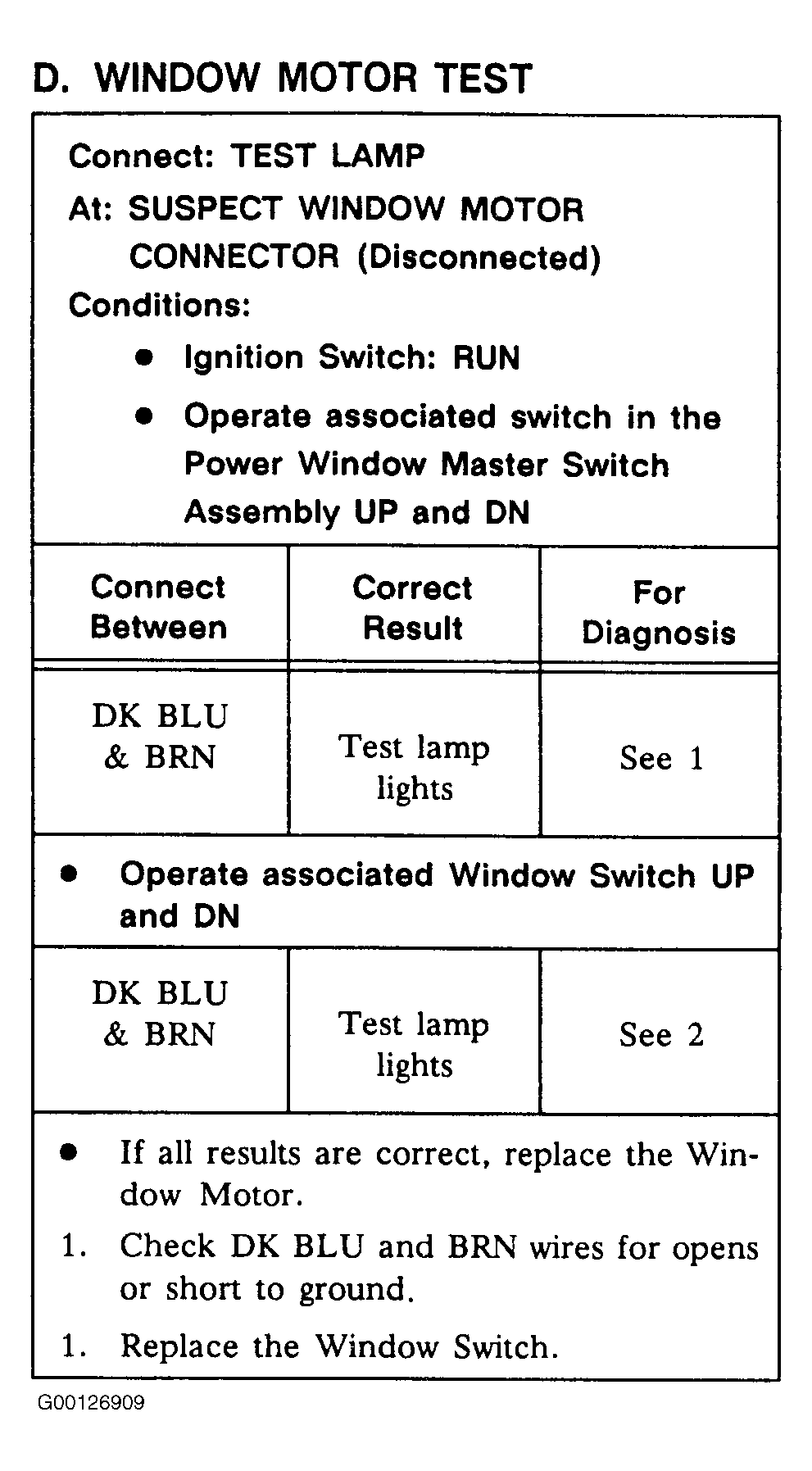

Fig 1: Window Motor Test

G00126909

Courtesy of GENERAL MOTORS CORP.
