Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

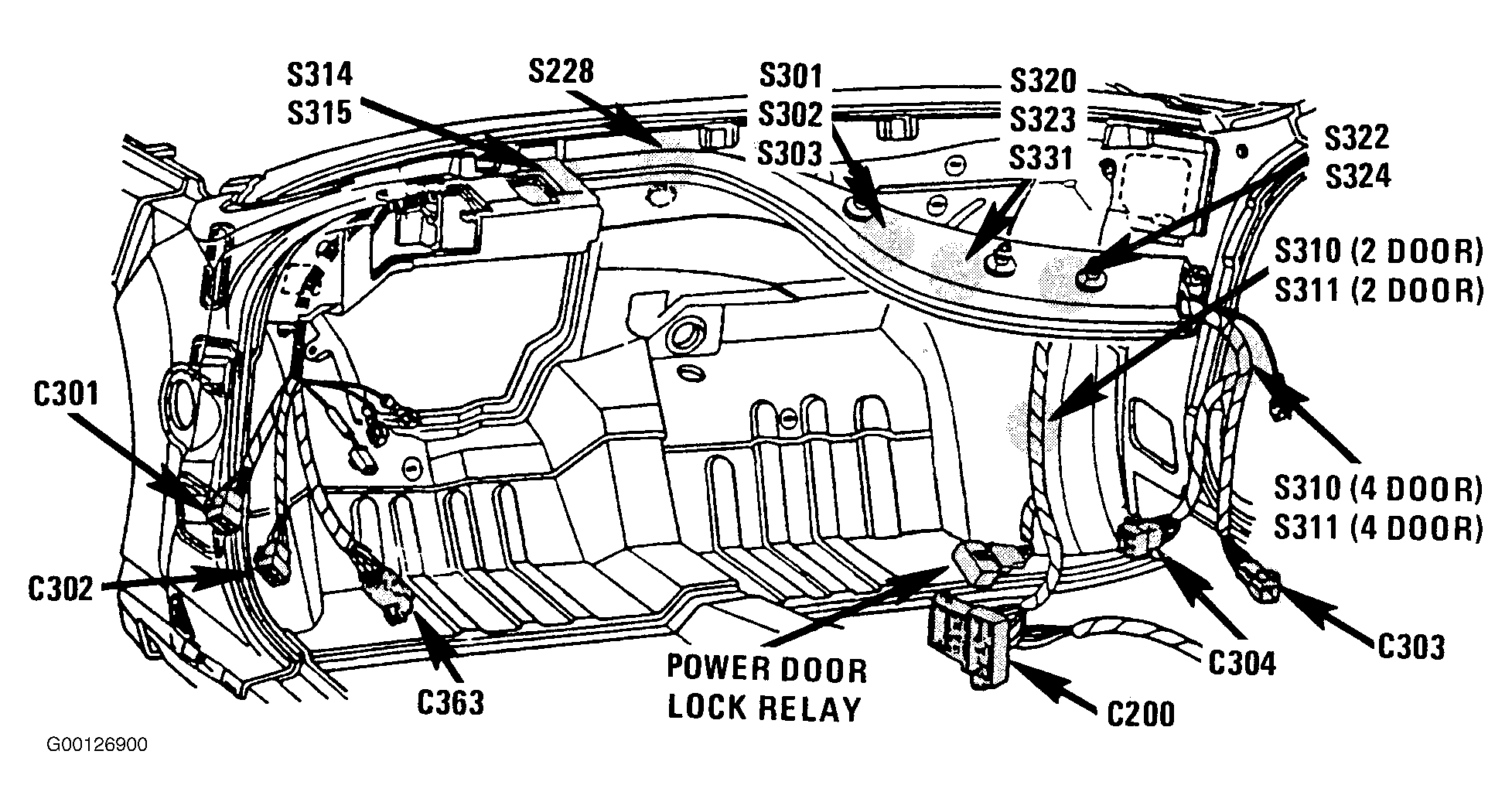

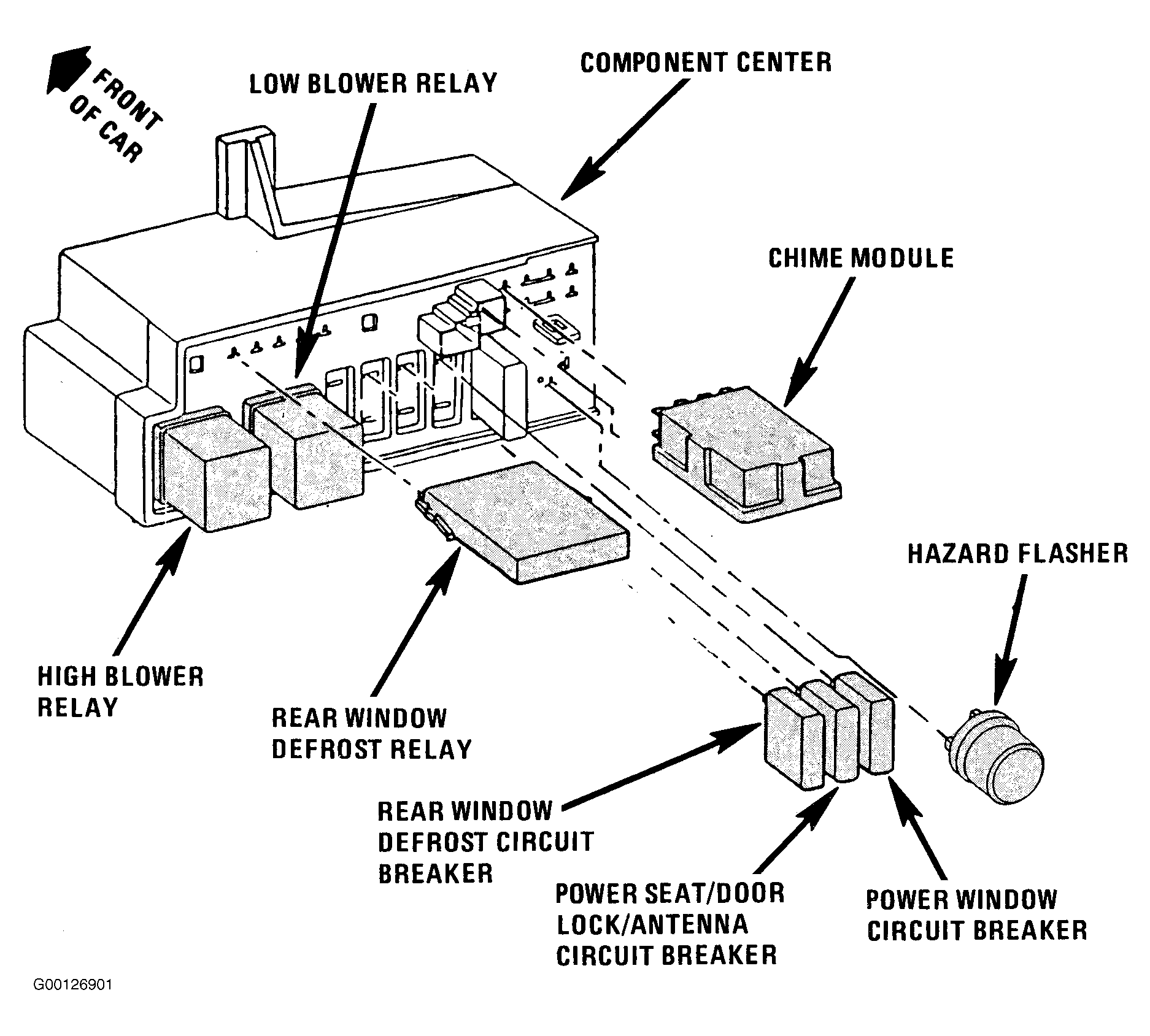

| Component Center | Behind Right Side Of Instrument Panel, Near Instrument Panel Compartment. See Fig 1 |

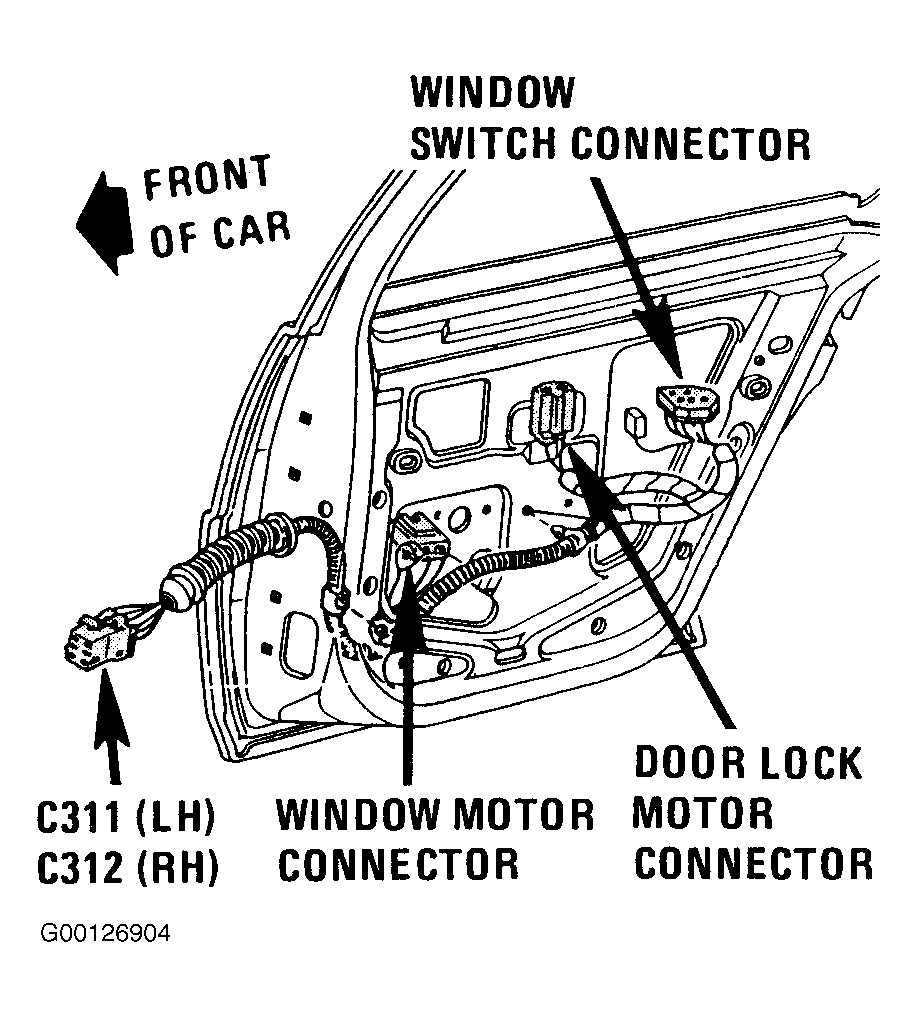

| Window Motor | In Respective Door. See Fig 2 |
| C200 (106 Cavities) | Behind Right Side Of Instrument Panel. See Fig 3 |
| C301 (6 Cavities) | Below Left Side Of Instrument Panel, At Left Shroud. See Fig 4 |
| C303 (6 Cavities) | Below Right Side Of Instrument Panel, At Right Shroud. See Fig 4 |

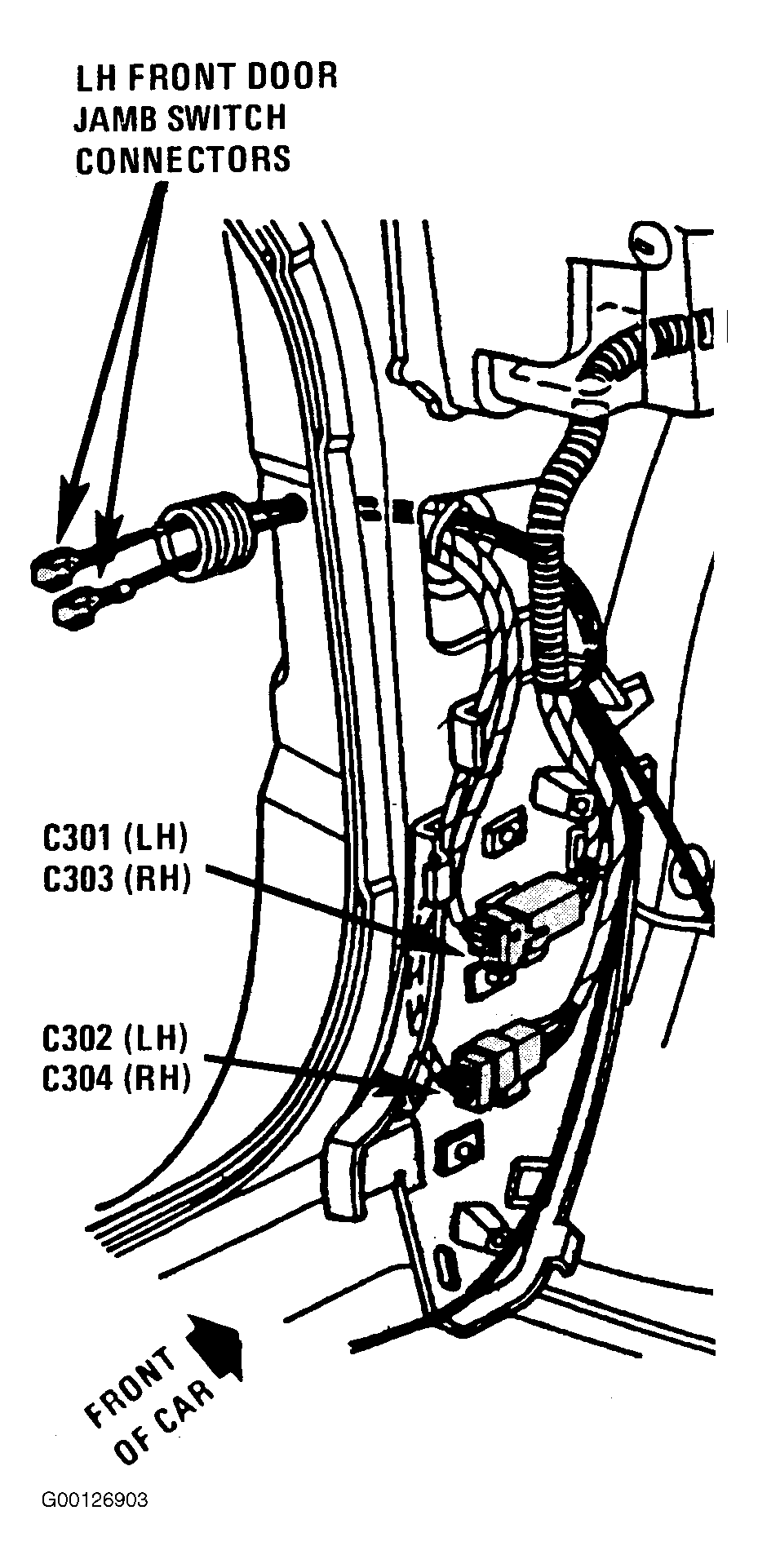

| C311 (6 Cavities) | Near Left Door Lock Pillar. See Fig 5 |
| C312 (6 Cavities) | Near Right Door Lock Pillar. See Fig 5 |
| C363 (6 Cavities) | Below Left Side Of Instrument Panel, At Shroud. See Fig 2 |

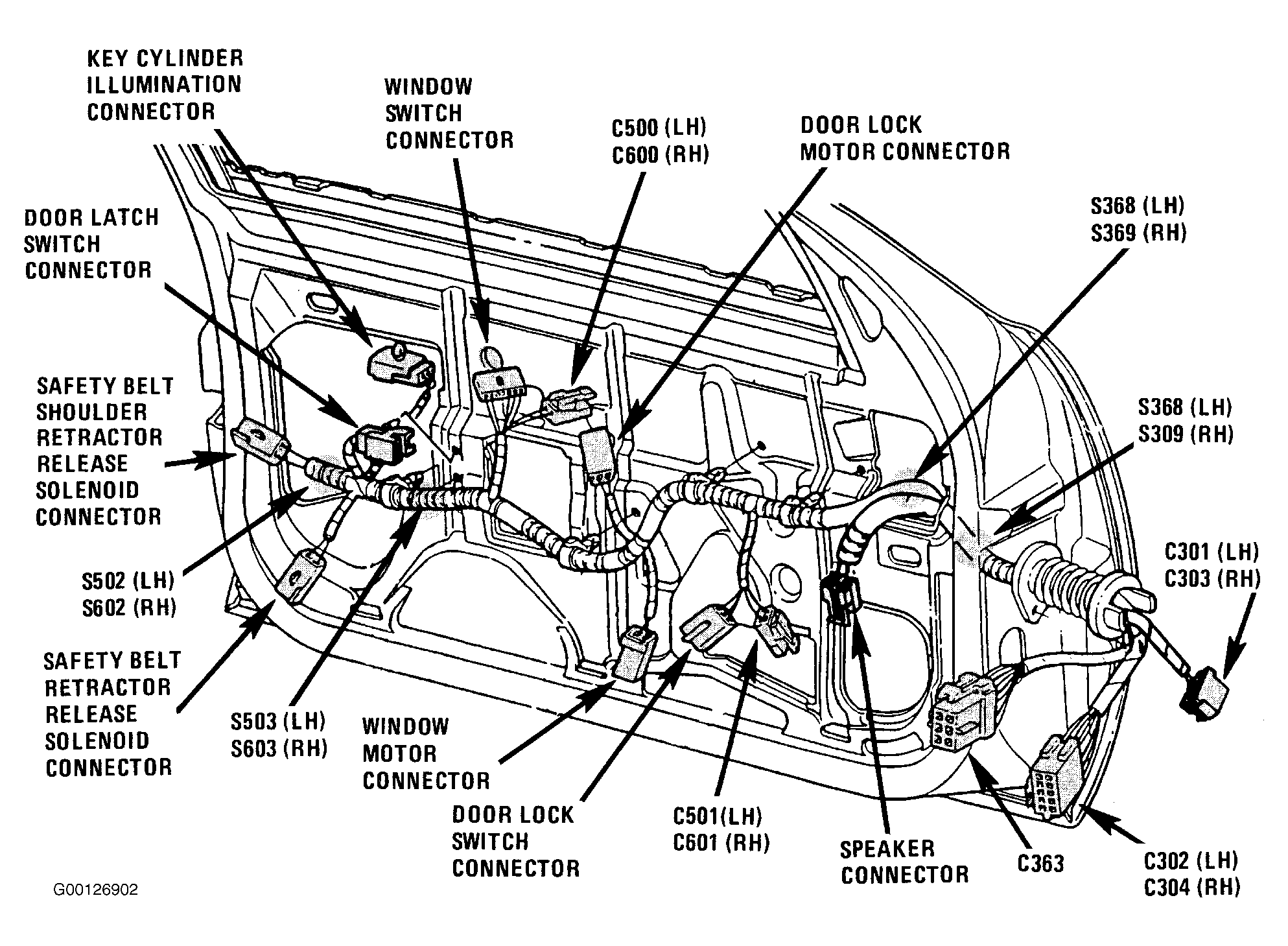

| C500 (2 Cavities) | In Left Front Door, Near Power Window Master Switch Assembly. See Fig 2 |
| C600 (2 Cavities) | In Right Front Door, Near Right Front Window Switch. See Fig 2 |

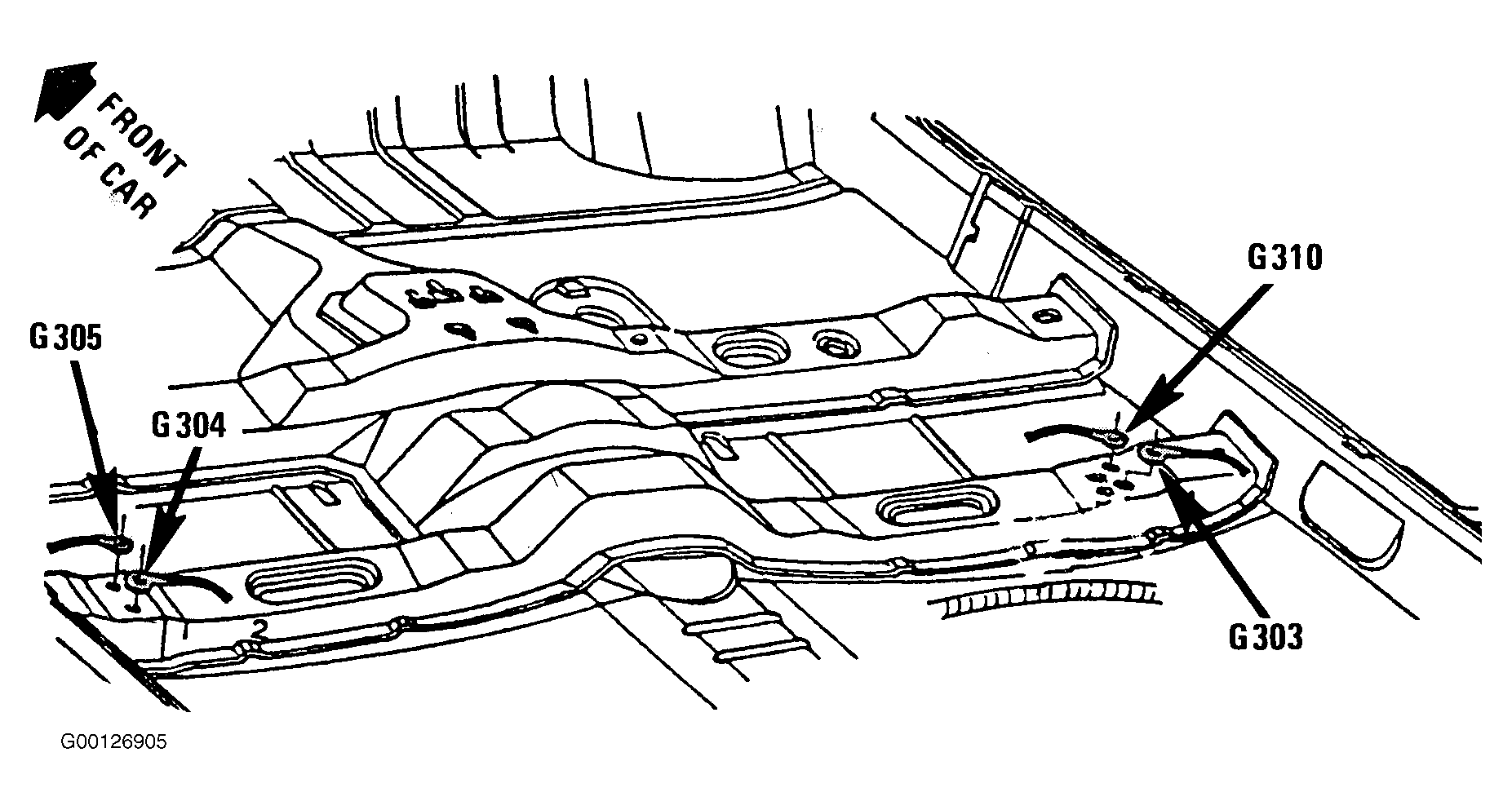

| G305 | Under Left Front Seat. See Fig 6 |
| S228 | Crosscar Harness, Behind Center Of Instrument Panel. See Fig 3 |
| S303 | Crosscar Harness, Behind Right Side Of Instrument Panel. See Fig 3 |
| S308 | Left Door Harness, Center Rear Of Left Door. See Fig 2 |
| S309 | Right Door Harness, Inside Right Front Door Near Window Motor. See Fig 2 |
