Connector Identification

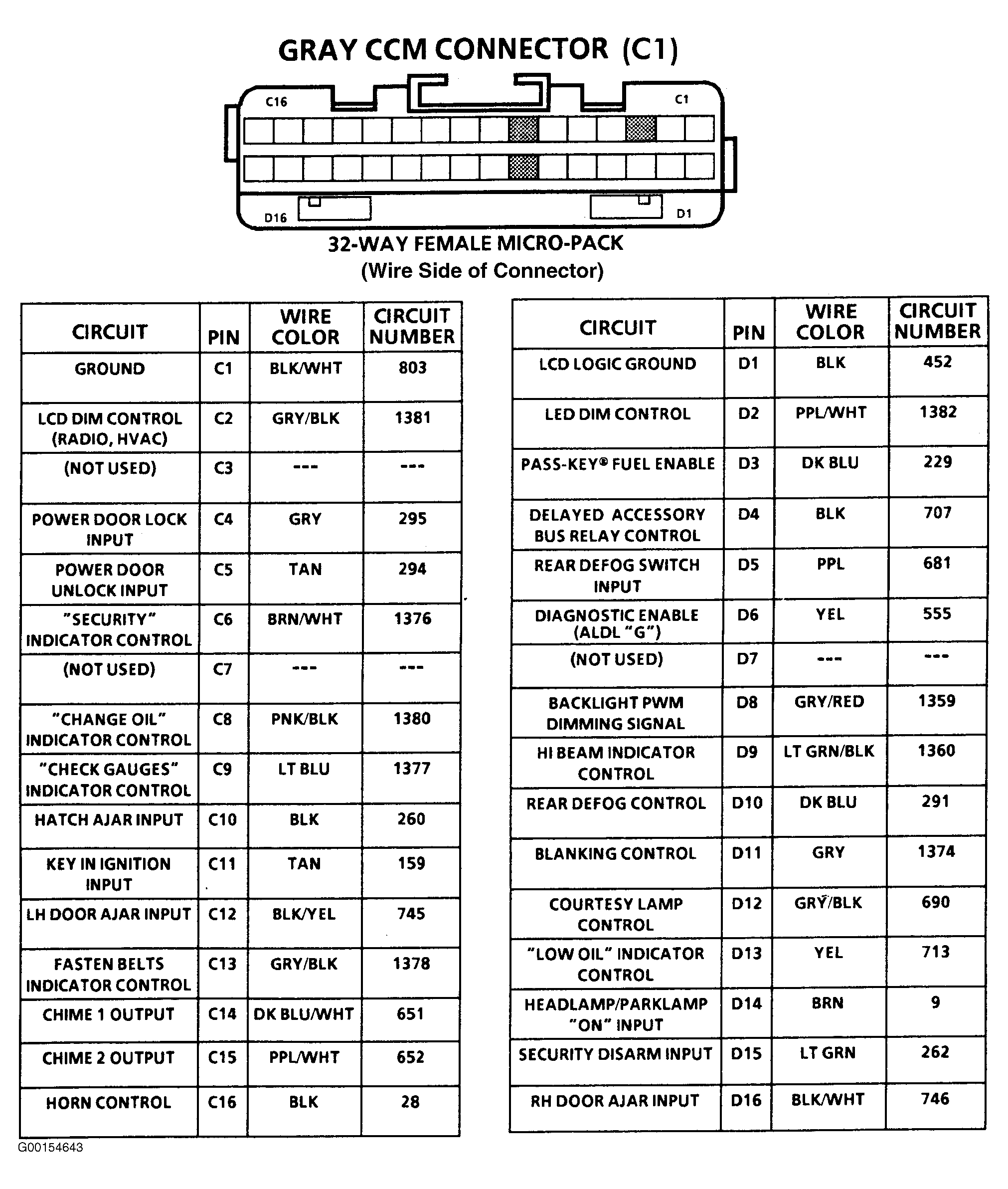

Fig 1: Identifying CCM C1 (Gray) Connector Terminals
G00154643Courtesy of GENERAL MOTORS CORP.

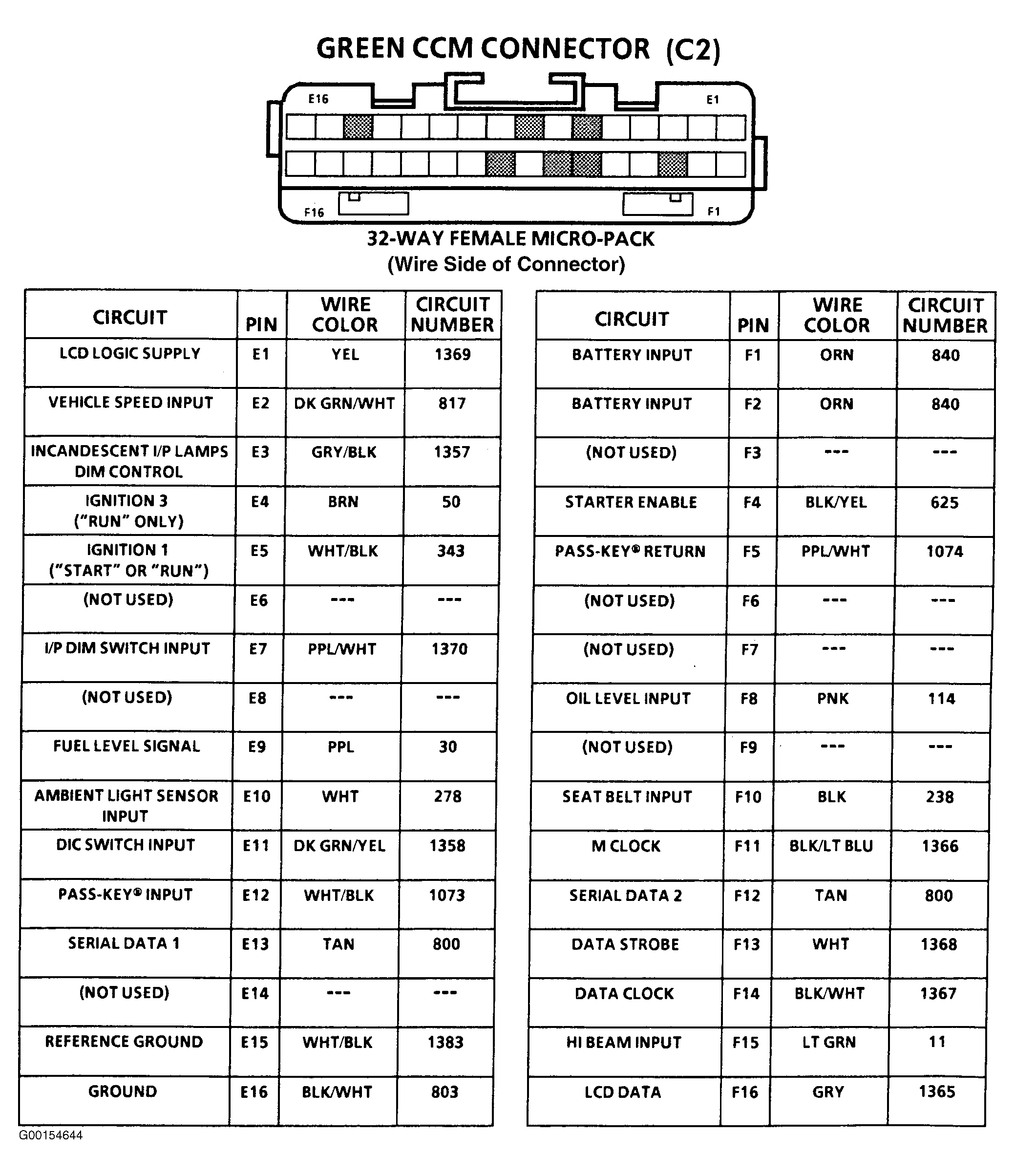

Fig 2: Identifying CCM C2 (Green) Connector Terminals
G00154644Courtesy of GENERAL MOTORS CORP.

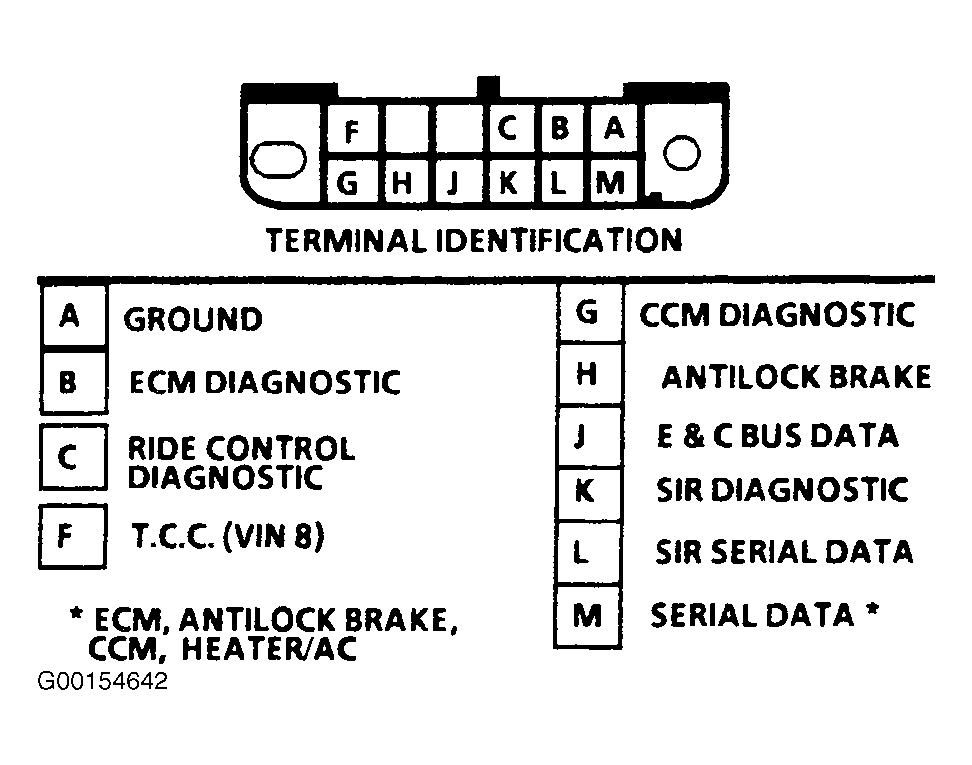

Fig 3: Identifying ALDL Connector Terminals
G00154642Courtesy of GENERAL MOTORS CORP.
