Component Locations

For component locations, refer to illustrations. See Fig 1 -Fig 3 .

COMPONENT LOCATIONS

Component	Location
Fuse Block	Behind Left Side Of Instrument Panel
Power Door Lock Actuator	Behind Respective Door Panel
Power Door Lock Relay	Attached To Brake Pedal Bracket, Below Instrument Panel

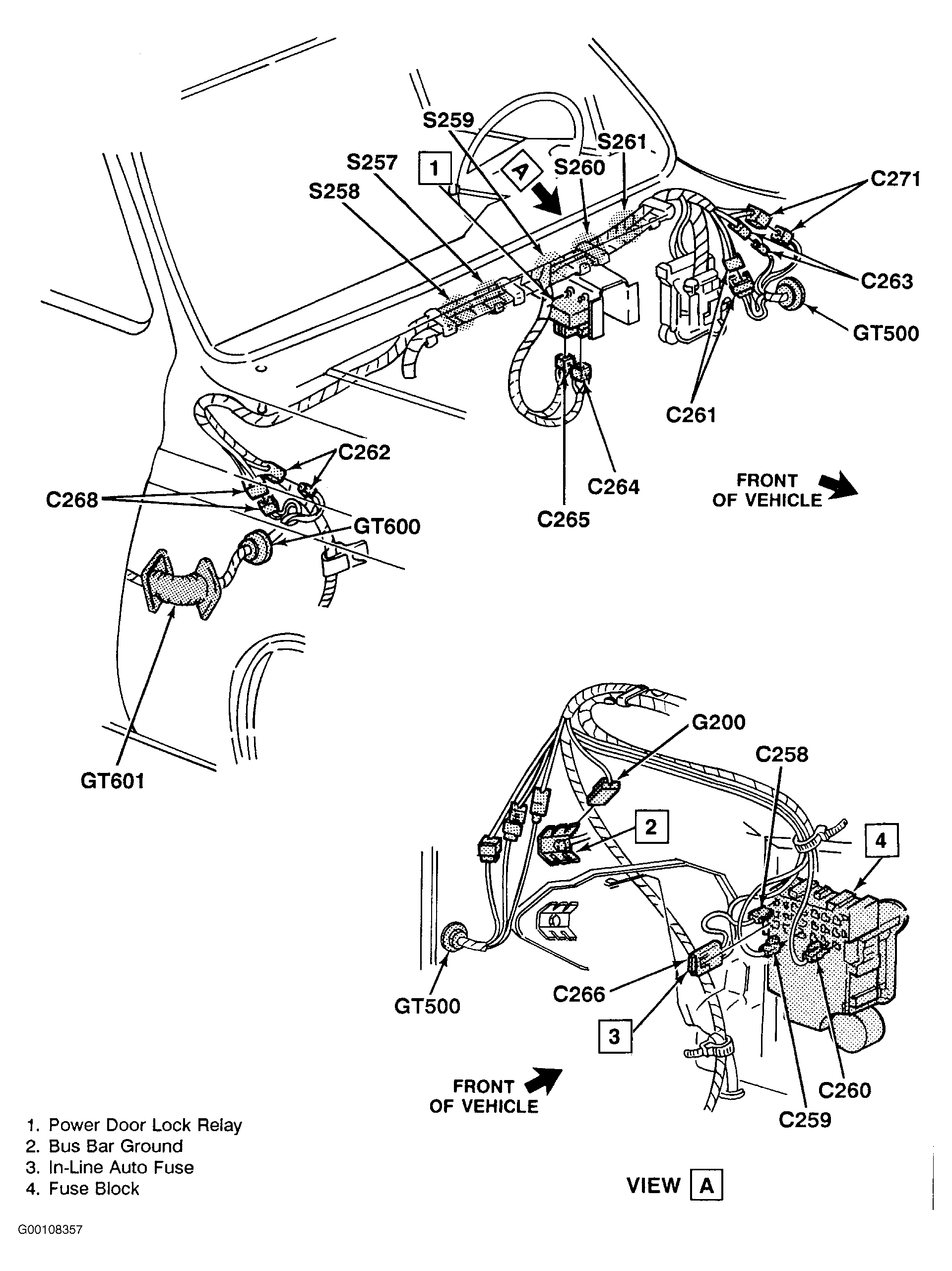

Fig 1: Locating Power Door Lock Relay

Courtesy of GENERAL MOTORS CORP.

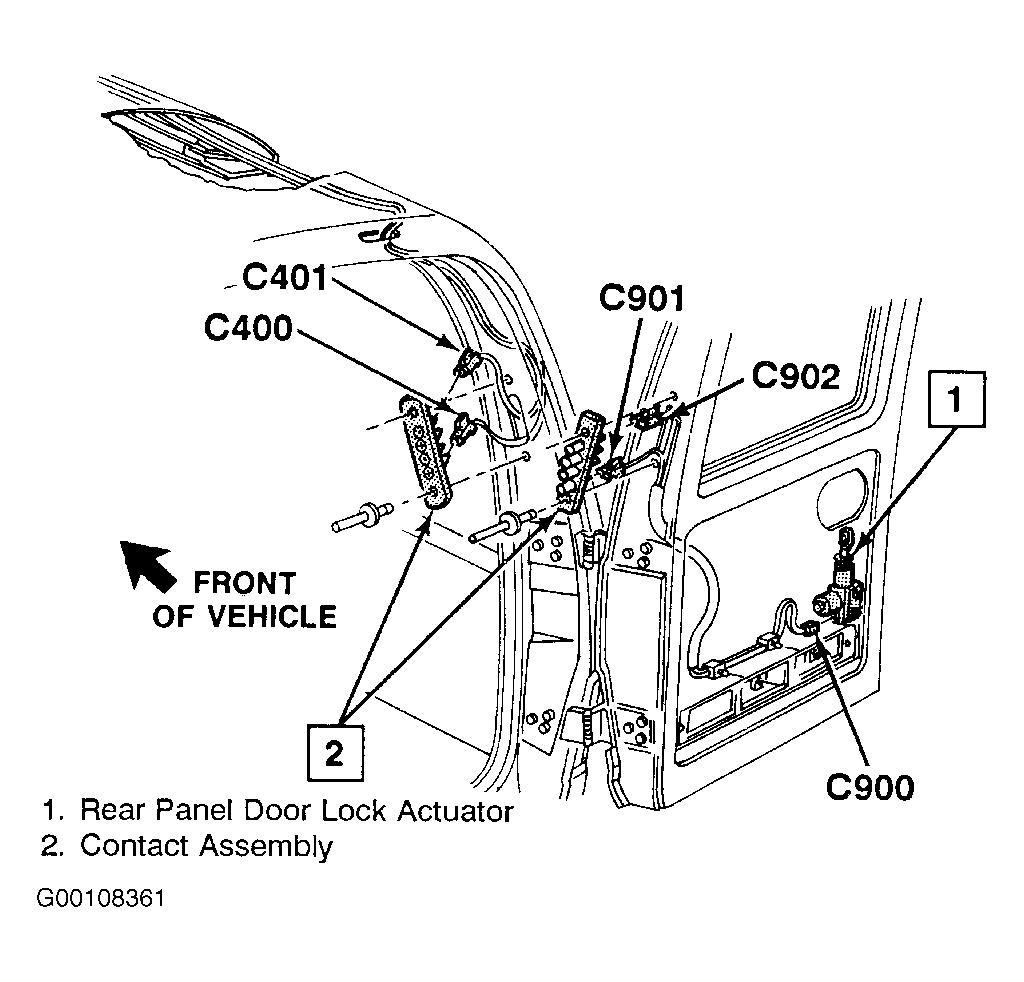

Fig 2: Locating Rear Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

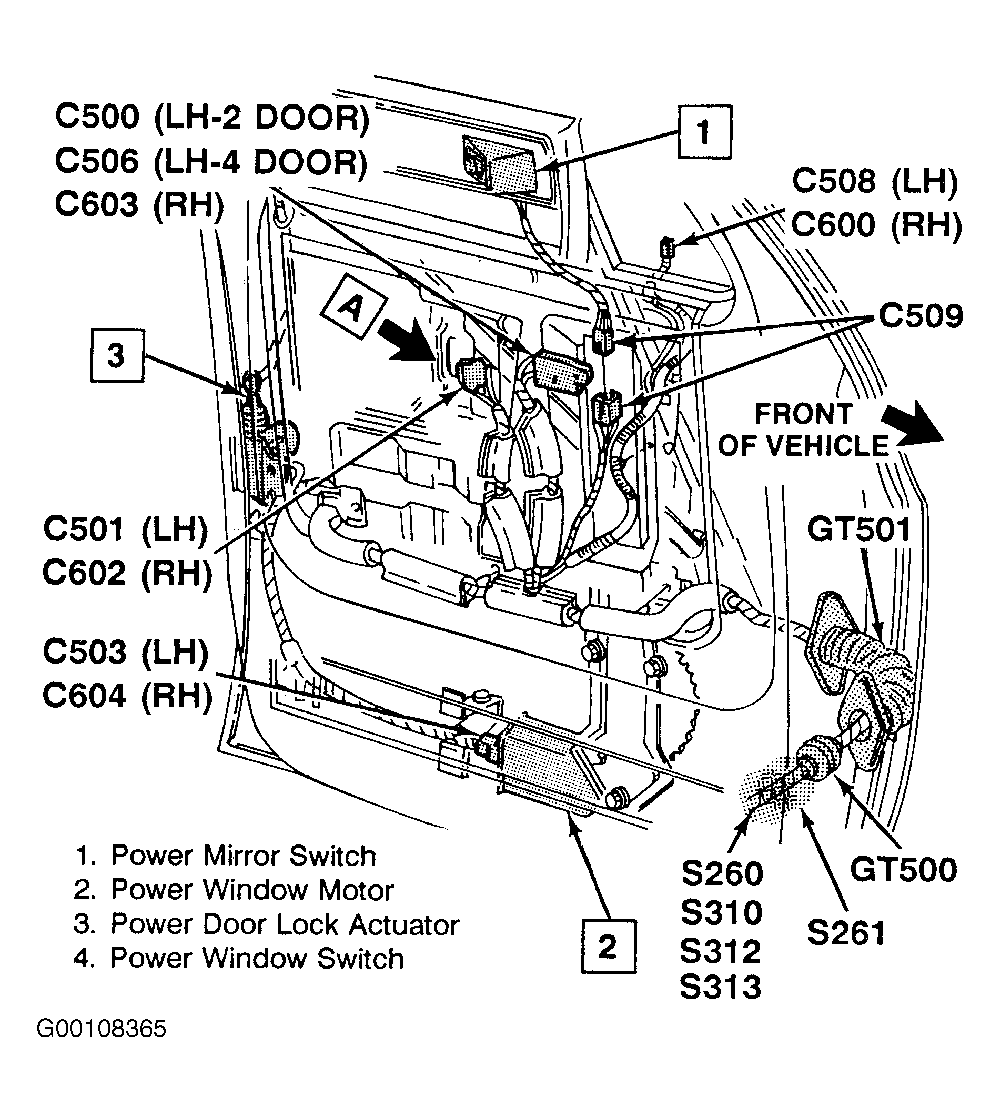

Fig 3: Locating Front Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.
