Test B: Master Switch Assembly Test

To test master switch assembly, see Fig 1 &Fig 2 .

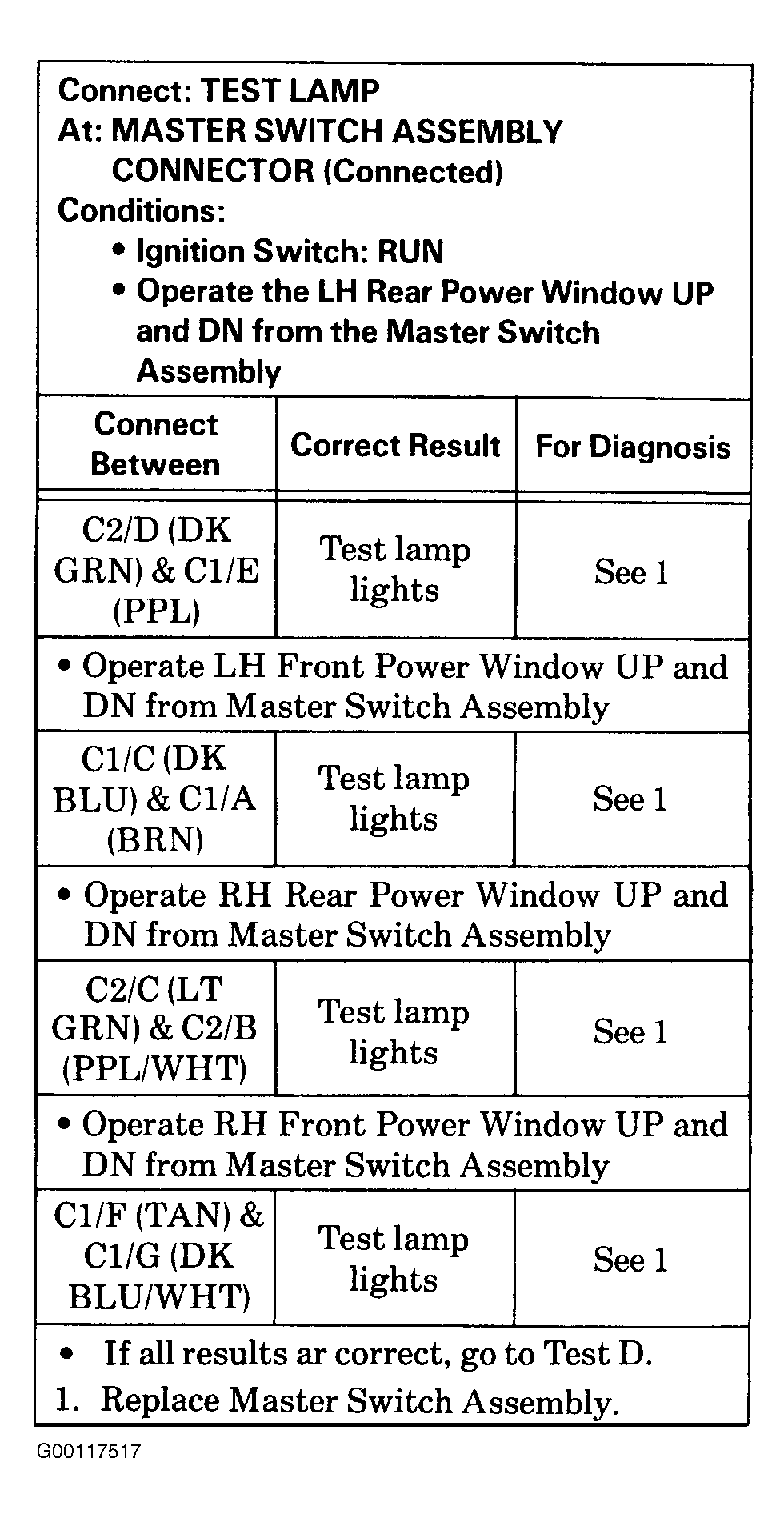

Fig 1: Test B: Master Switch Assembly Table 1 (2-Door)

Courtesy of GENERAL MOTORS CORP.

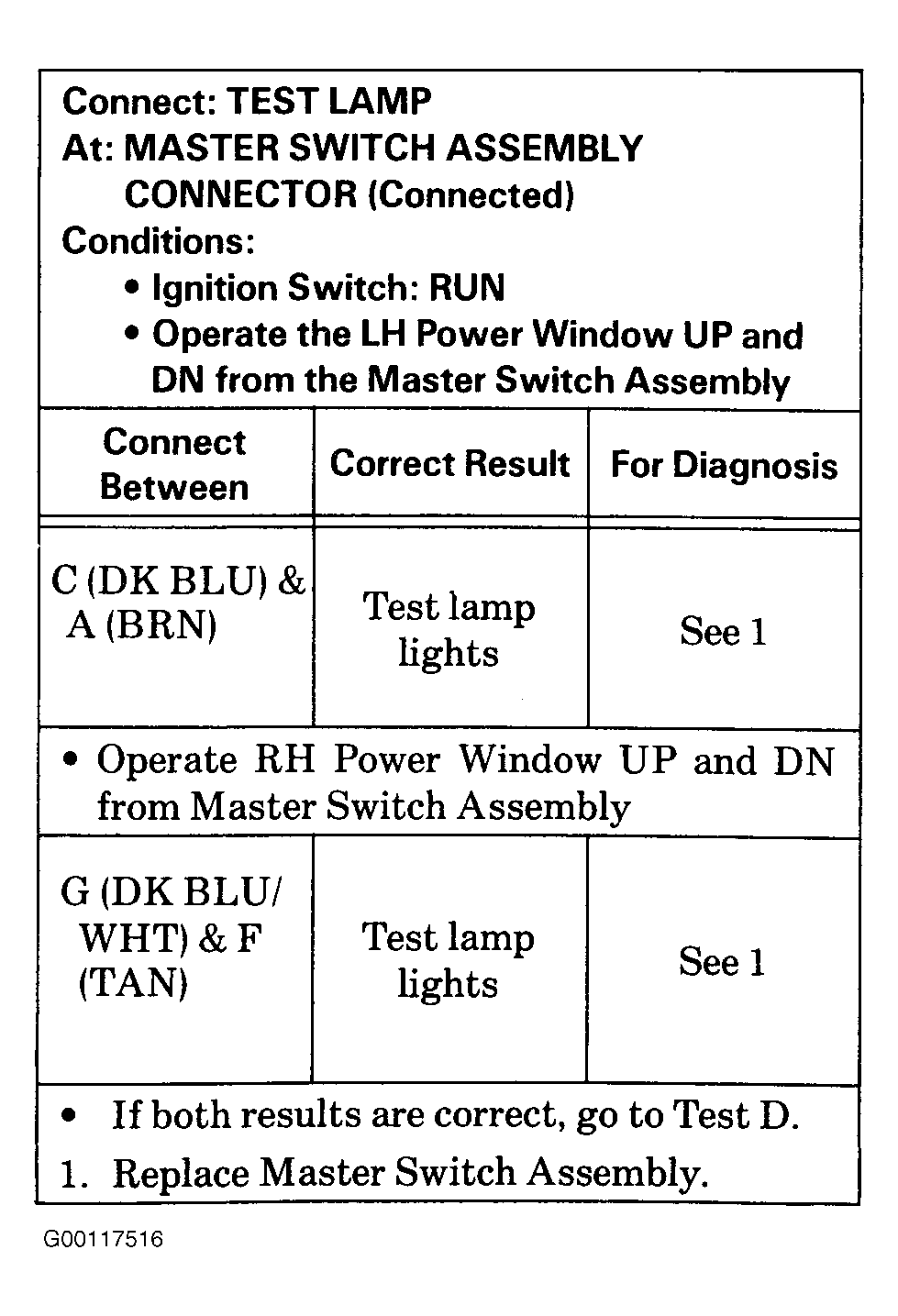

Fig 2: Test B: Master Switch Assembly Table 2 (4-Door & Convertible)

Courtesy of GENERAL MOTORS CORP.
