Component Locations

NOTE: For more information on fuses and circuit breakers, see FUSES & CIRCUIT BREAKERS article in ELECTRICAL.
COMPONENT LOCATIONS

Component Location
Fuse Block Behind Left Side Of Instrument Panel, Near Shroud. See Fig 1 .
Power Window Motor In Front Of Respective Door. SeeFig 2 .
C211 (3 Cavities) Behind Left Side Of Instrument Panel, Near Shroud. SeeFig 3 .
C306 (6 Cavities) Ahead Of Right Rear Door, At Base of Right Center Door Pillar. SeeFig 3 .
C307 (6 Cavities) Ahead Of Left Rear Door, At Base of Left Center Door Pillar. SeeFig 3 .
C310 Under Center Of Console. See Fig 4 .
G300 Under Left Front Seat, Near Door Sill. SeeFig 5 .
S310 Convertible Harness, Below Console. See Fig 4 .
S311 Crosscar Harness, Under Left Front Seat, Near Door Sill. See Fig 3 .
S312 Crosscar Harness, Under Left Front Seat, Near Door Sill. SeeFig 3 .
S318 Convertible Harness, In Console. SeeFig 4 .
Fig 1: Locating Fuse Block
G00117510Courtesy of GENERAL MOTORS CORP.

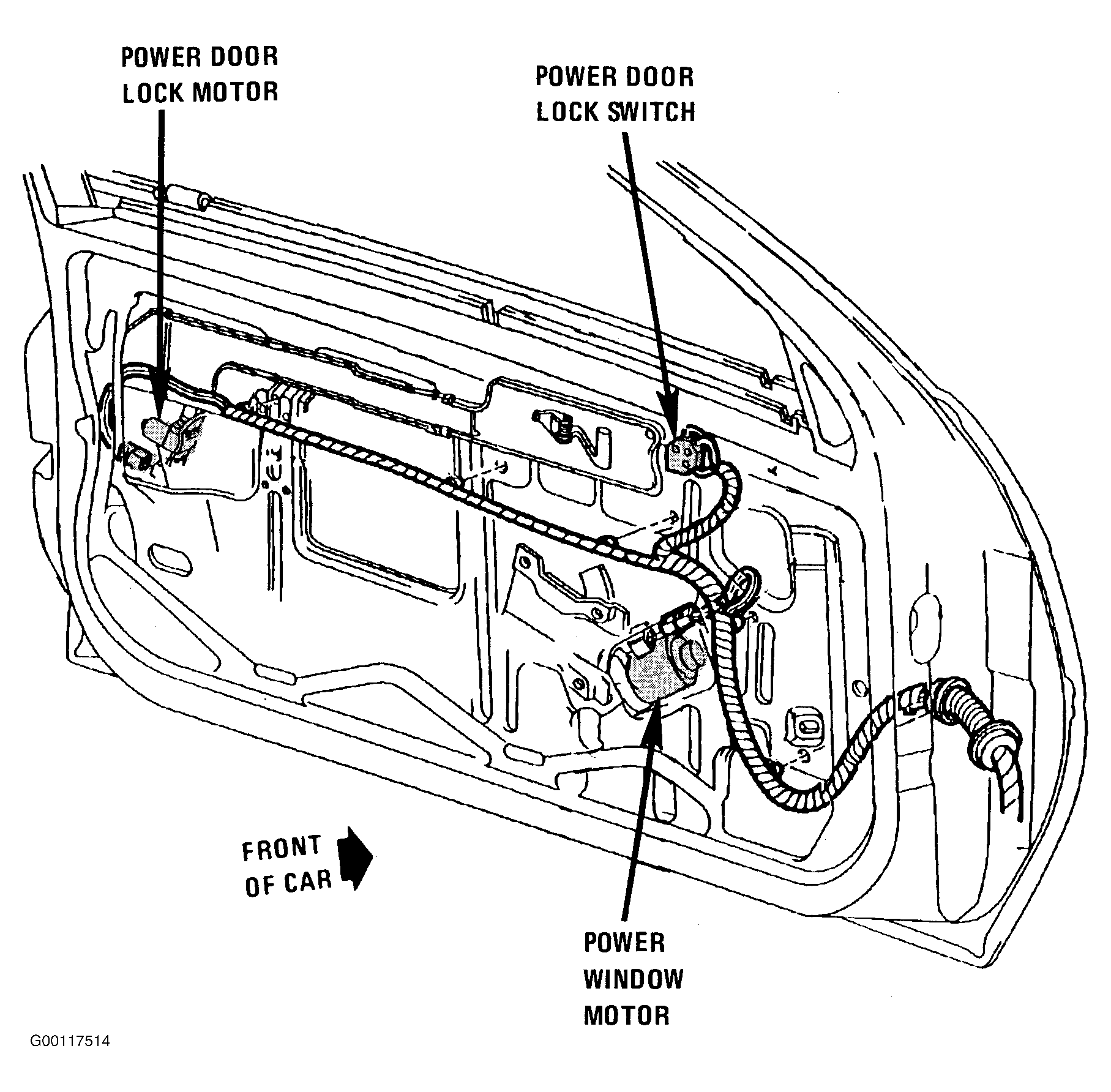

Fig 2: Locating Power Window Motor
G00117514Courtesy of GENERAL MOTORS CORP.

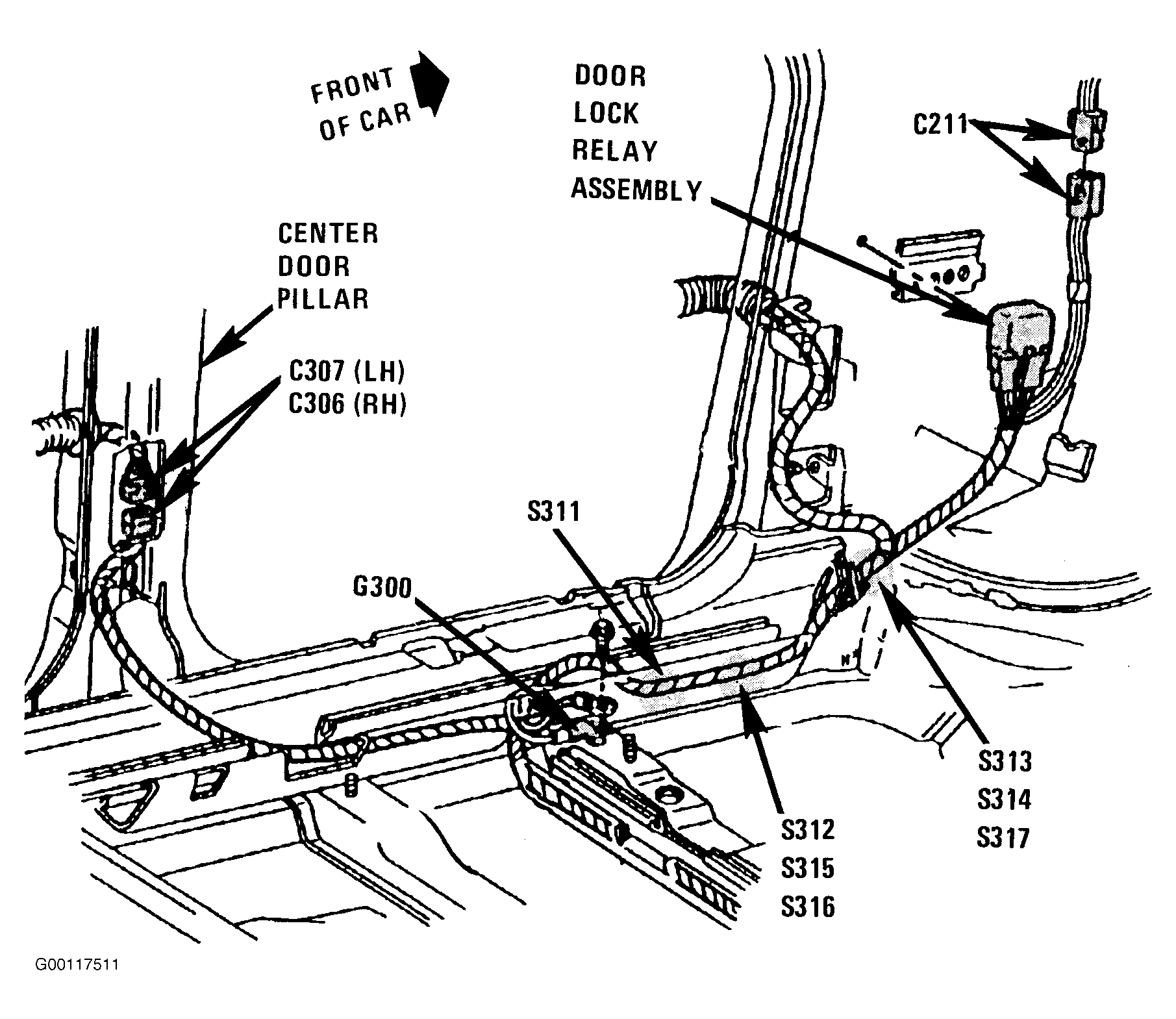

Fig 3: Locating Connectors C211, C306, C307 & Splices S311 & S312
G00117511Courtesy of GENERAL MOTORS CORP.

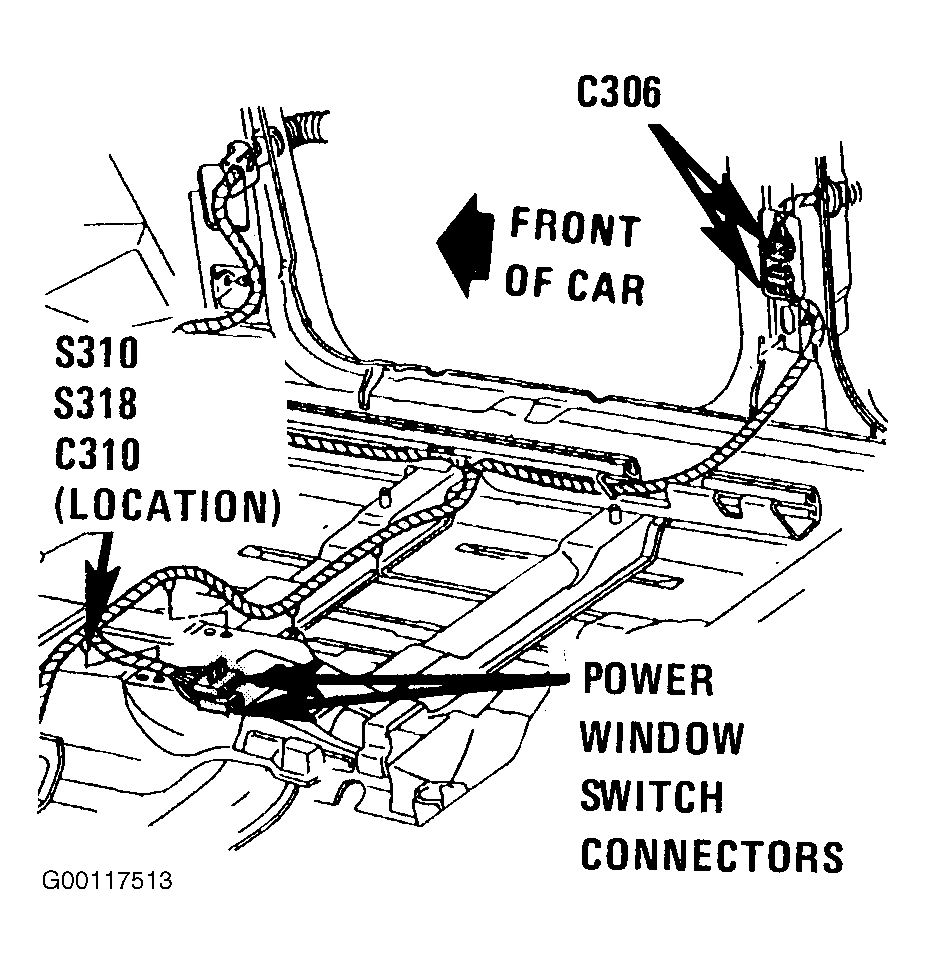

Fig 4: Locating Connector C310 & Splices S310 & S318
G00117513Courtesy of GENERAL MOTORS CORP.

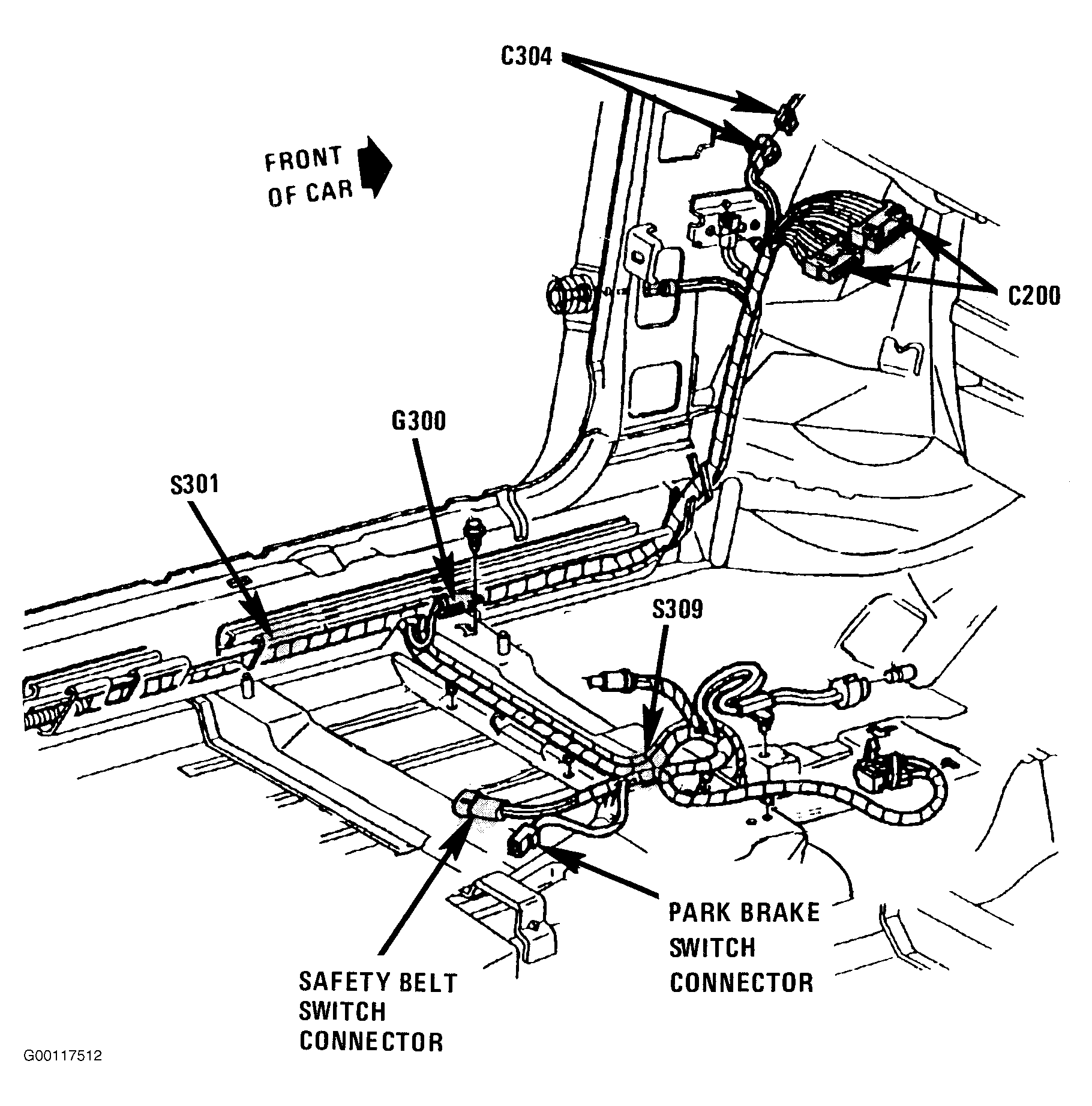

Fig 5: Locating Ground G300
G00117512Courtesy of GENERAL MOTORS CORP.
