Service Indicator & Warning Lights: Notes

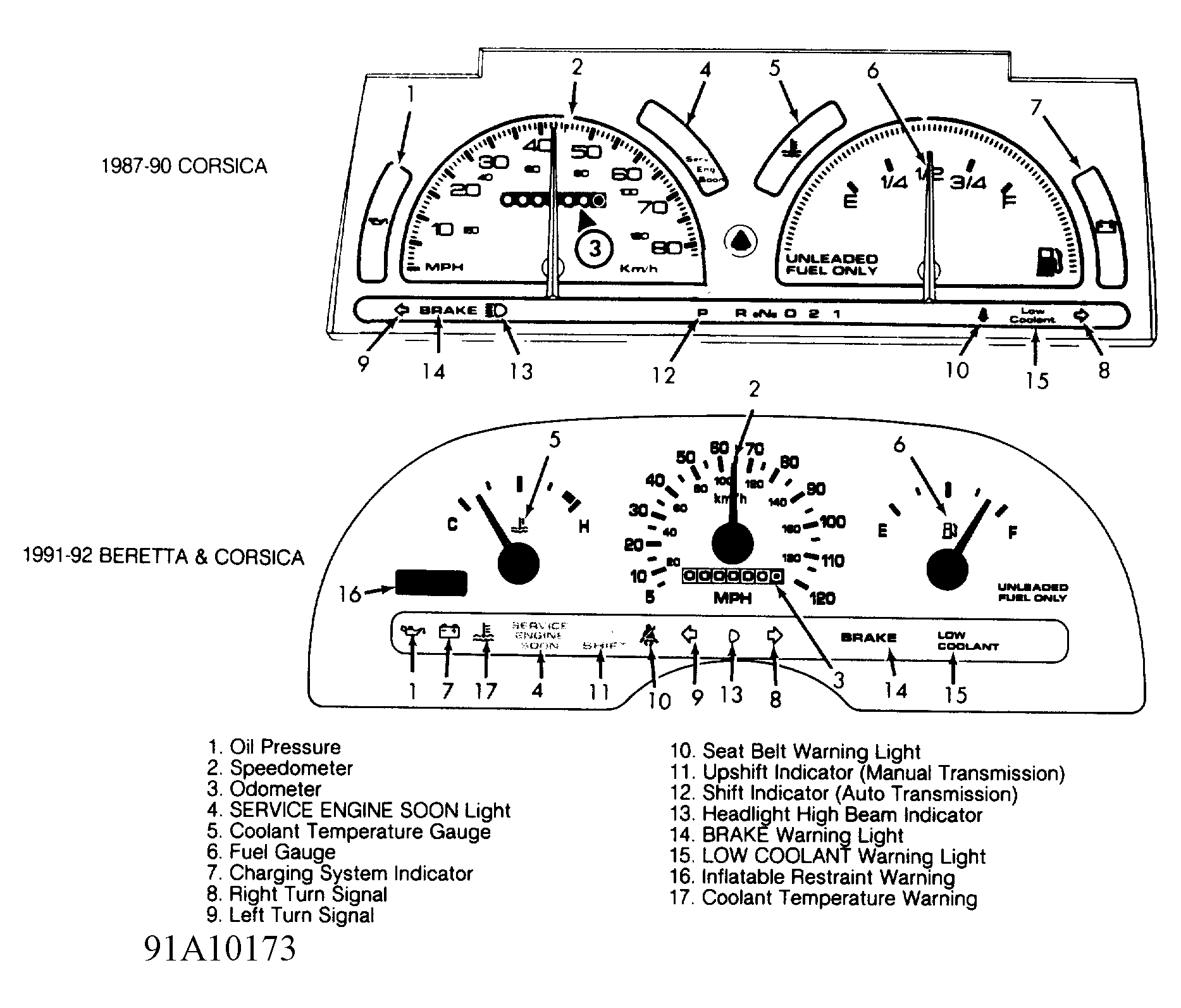

Fig 1: Dash Gauges & Warning Lights (Standard Cluster)
G91A10173Courtesy of GENERAL MOTORS CORP.

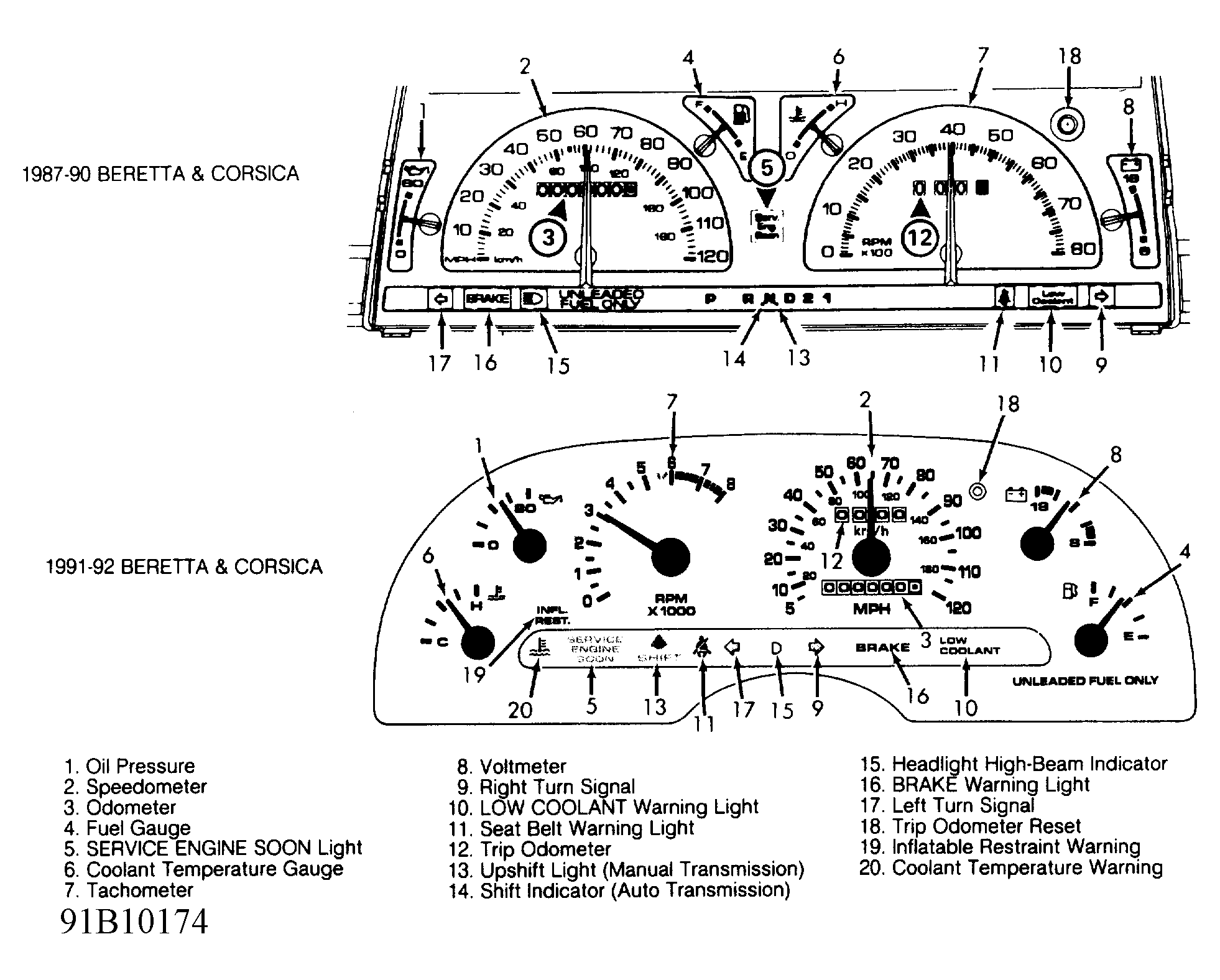

Fig 2: Dash Gauges & Warning Lights (Optional Cluster)
G91B10174Courtesy of GENERAL MOTORS CORP.
