Wiring Diagrams

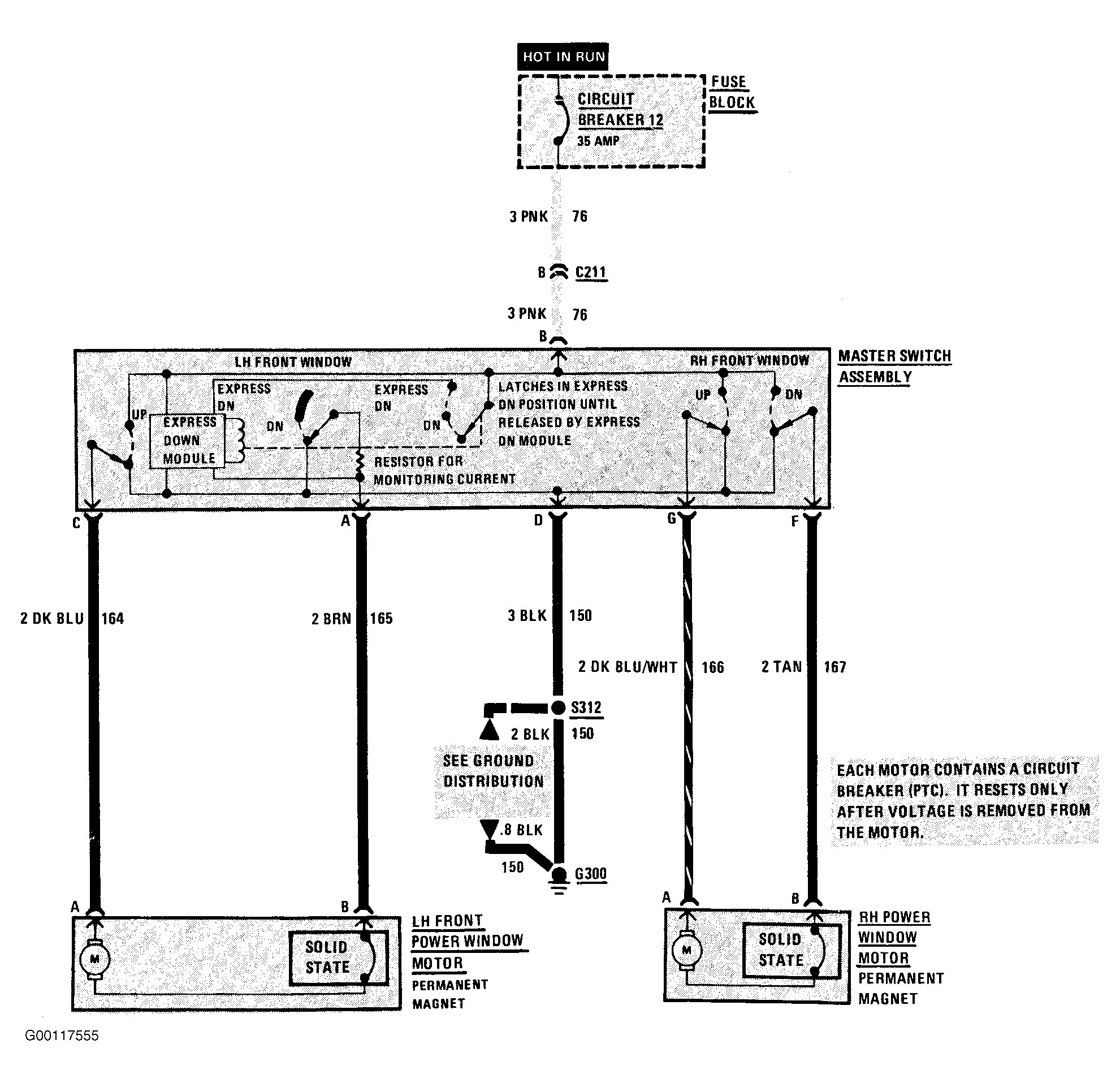

Fig 1: Power Windows Wiring Diagram (Coupe)
Courtesy of GENERAL MOTORS CORP.

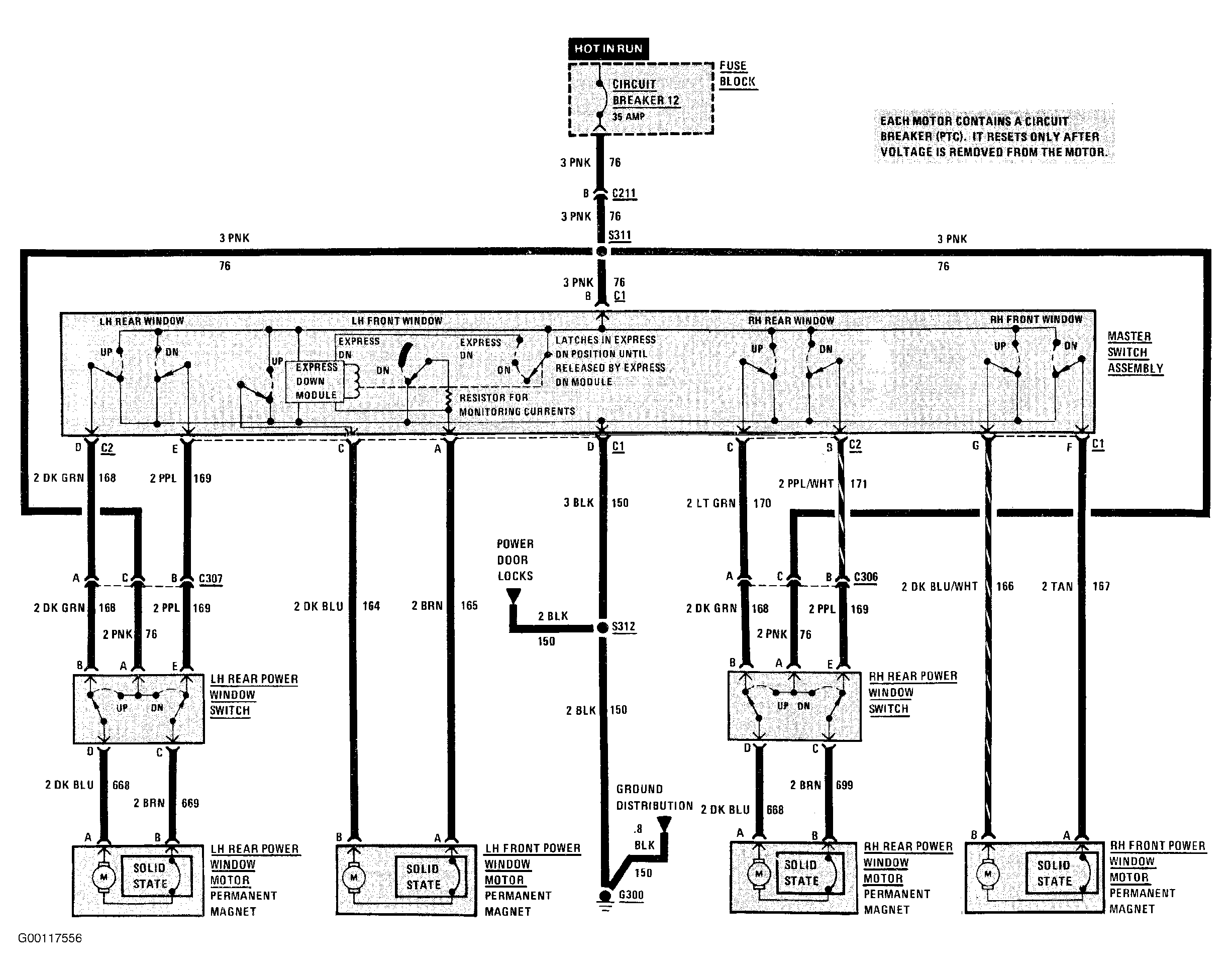

Fig 2: Power Windows Wiring Diagram (Sedan & Hatchback)
Courtesy of GENERAL MOTORS CORP.

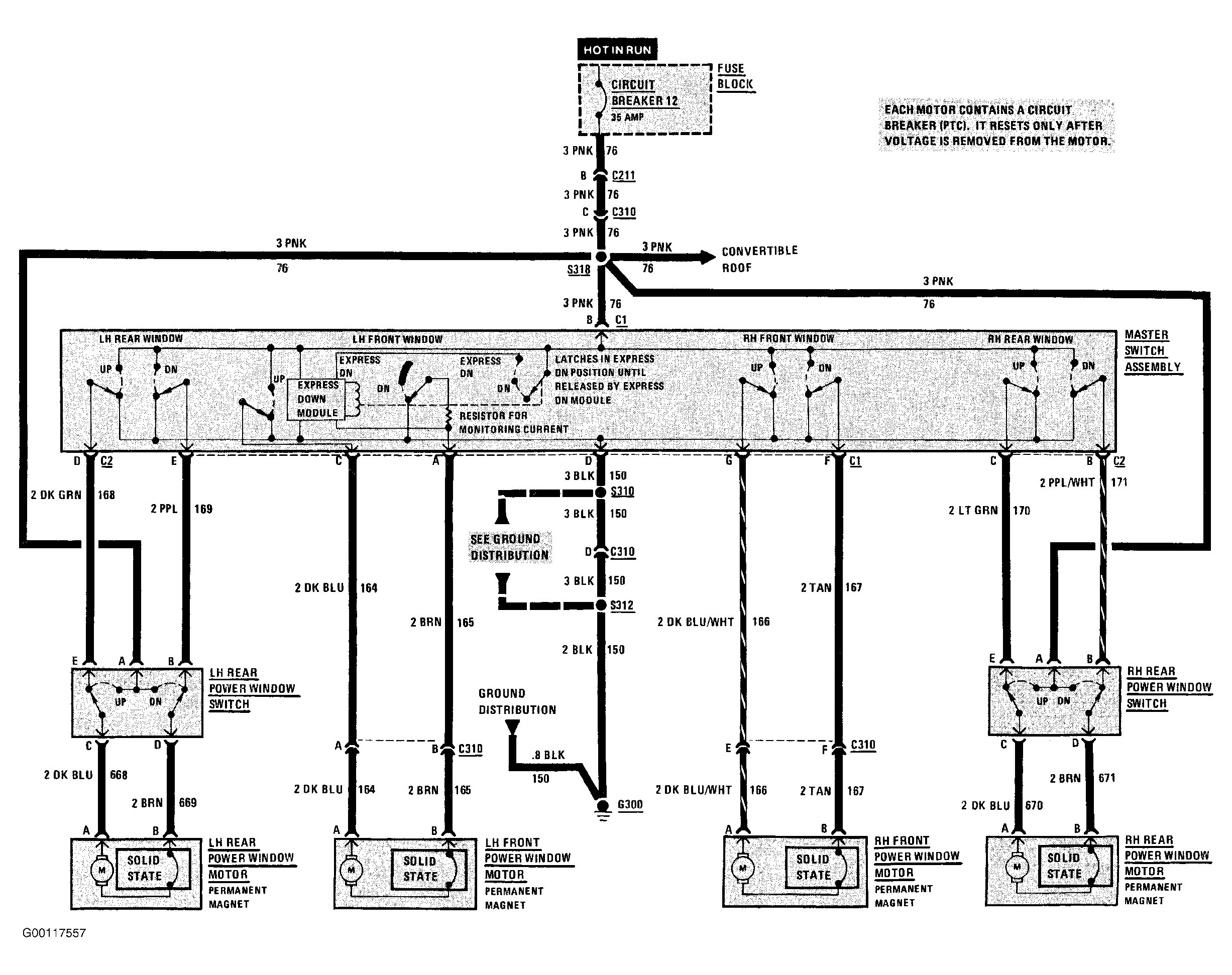

Fig 3: Power Windows Wiring Diagram (Convertible)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
