Test D: Power Window Motor Test

To test power window motor, see Fig 1 Fig 1 .

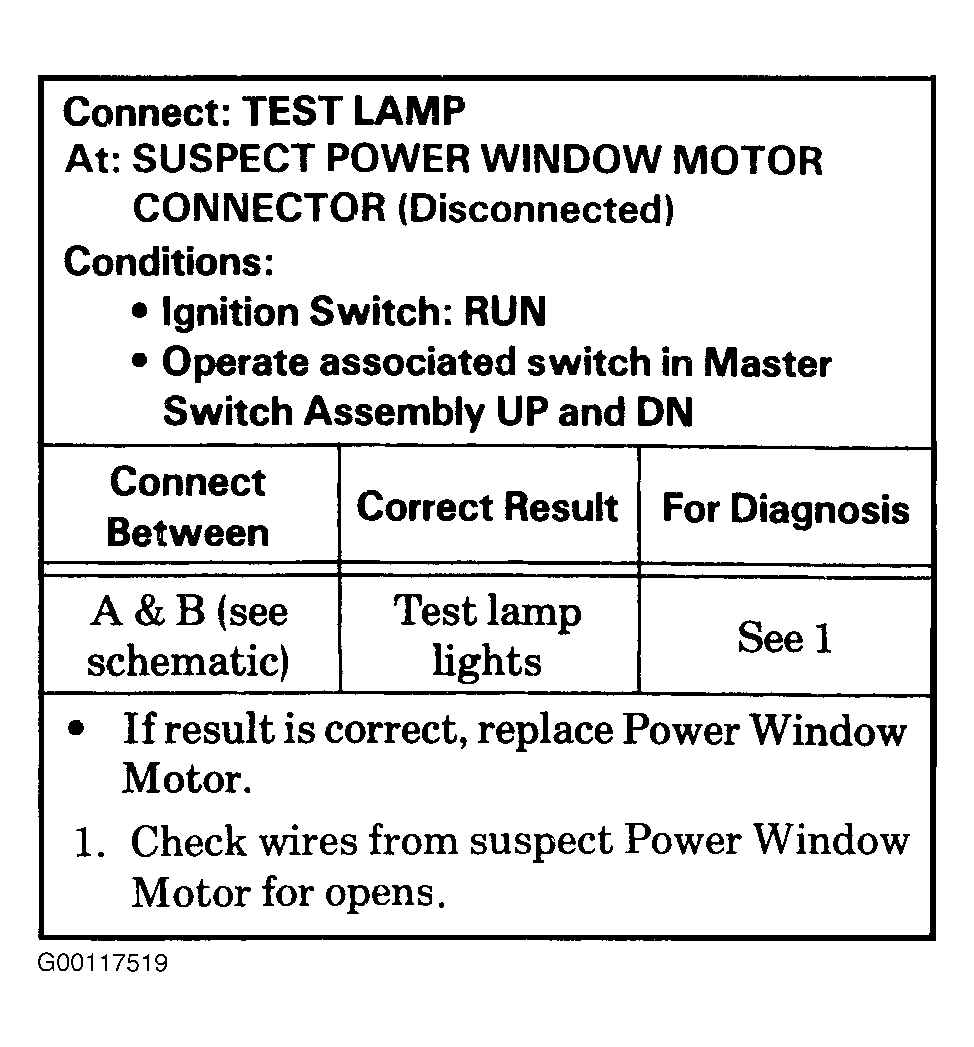

Fig 1: Test D: Power Window Motor Test

G00117519

Courtesy of GENERAL MOTORS CORP.
