Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Battery Junction Block | On fender panel, next to battery. | |
| Circuit Breakers | ||
| Auxiliary A/C | In convenience center. See Figure . | |
| Auxiliary Heater | In convenience center. See Figure . | |
| Fog Light Relay | In convenience center. | |

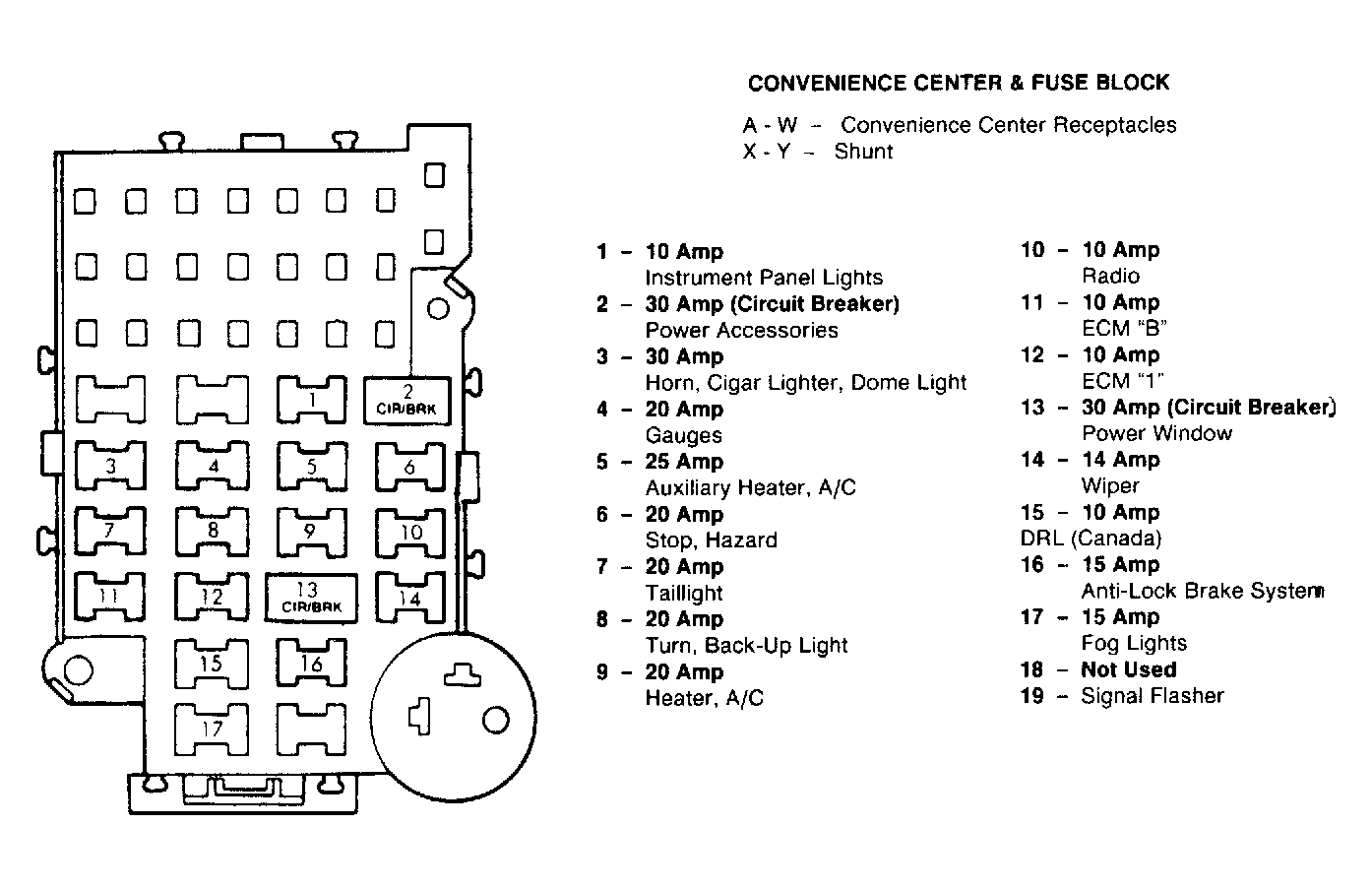

| Power Accessories | In fuse block. See Figure . | |
| Power Seats | In convenience center. | |
| Power Window, Door Lock & Mirror | In convenience center. See Figure . | |
| Convenience Center | ||
| Under Dash | Under dash, left of steering column. See Figure . | |
| Fuse Block | Under dash, left of steering column. See Figure . | |
| Fuse Block | ||
| Fuse Block | Under left side of dash. See Figure . | |
| Engine Compartment | Under left side of dash. See Figure . | |
| Fusible Links | ||
| A/C Clutch Control Relay (Gray) | At battery junction block. | |
| Alternator (Rust) | At starter solenoid (2 links). | |
| Ignition Switch/Fuse Block (Black) | At battery junction block (2 links). | |
