EXPERTEC TSB (91-38-7A)

Publication date: 1990-08-31
Reference number: 91-38-7A

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 91-38-7A, Date of Issue: 08/31/90

(SRTA) MODEL UPDATE - W/3T340 (125C)

08/31/1990

Chevrolet 91-38-7A

SUBJECT

SERVICE REPLACEMENT TRANSMISSION ASSEMBLY (SRTA)

Model and Year: 1982-87 - CH EVETTE 1982-91 CAVALIER 1985-90 CELEBRITY 1987-91 BERETTA AND CORSICA 1990-91 LUMINA AND U VAN WITH 3T40 (125C) AUTOMATIC TRANSMISSION

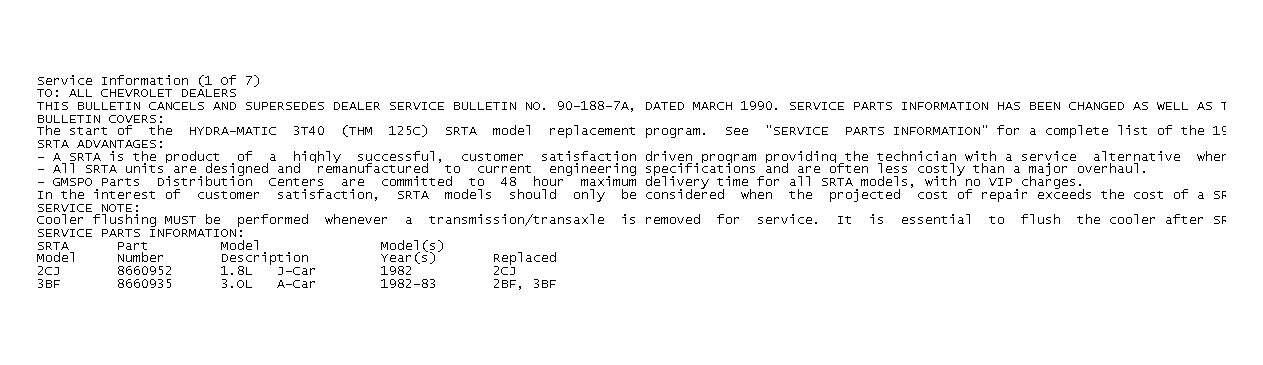

Fig 1: Service Information (1 Of 7)

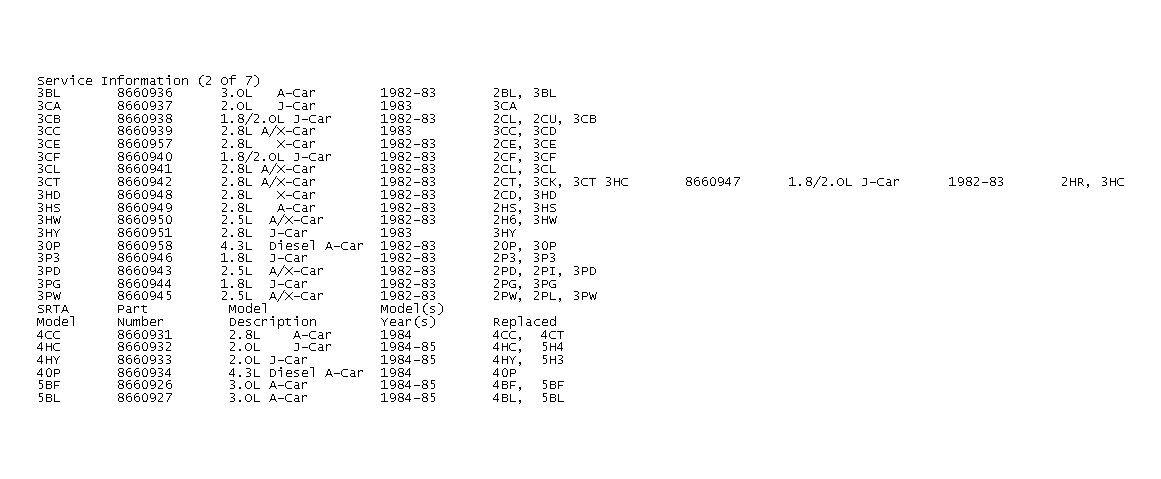

Fig 2: Service Information (2 Of 7)

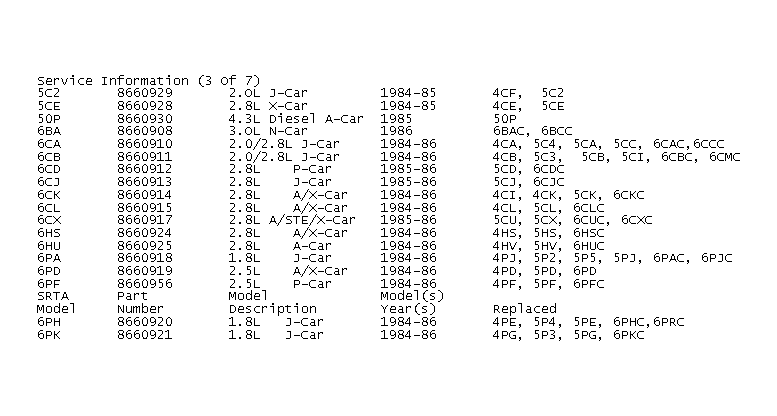

Fig 3: Service Information (3 Of 7)

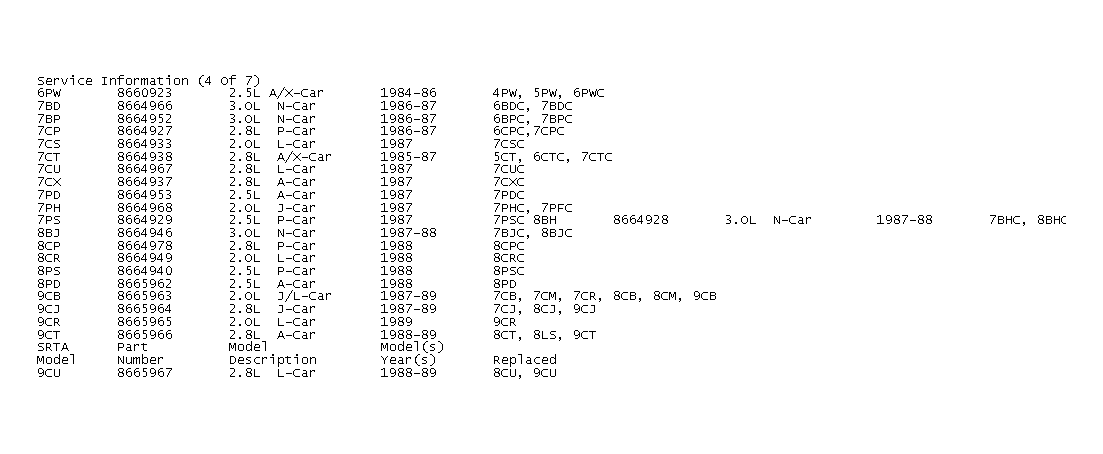

Fig 4: Service Information (4 Of 7)

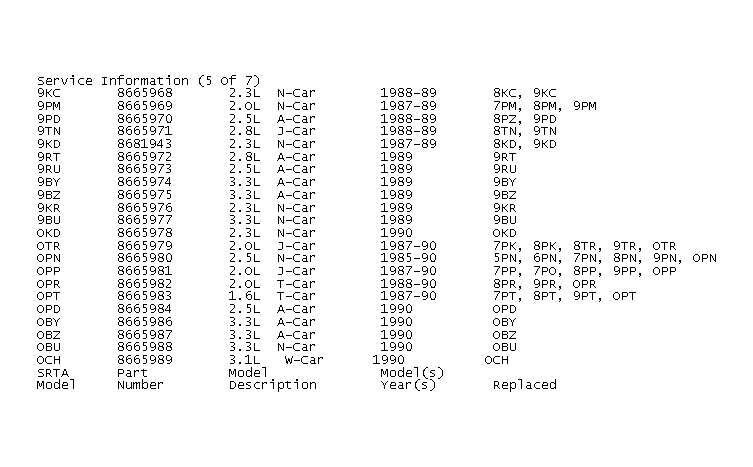

Fig 5: Service Information (5 Of 7)

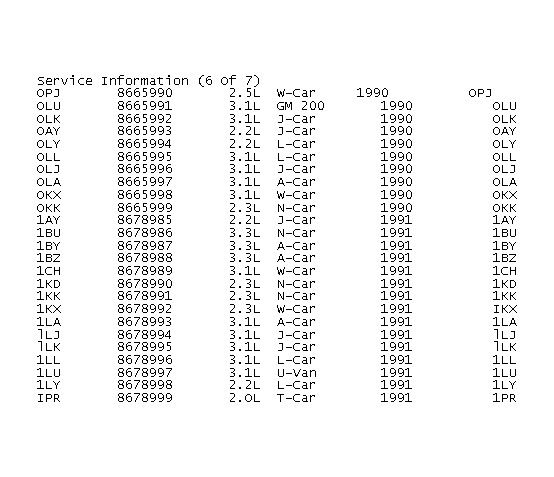

Fig 6: Service Information (6 Of 7)

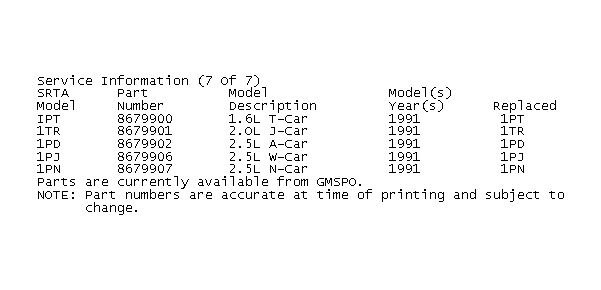

Fig 7: Service Information (7 Of 7)
