Wiring Diagrams

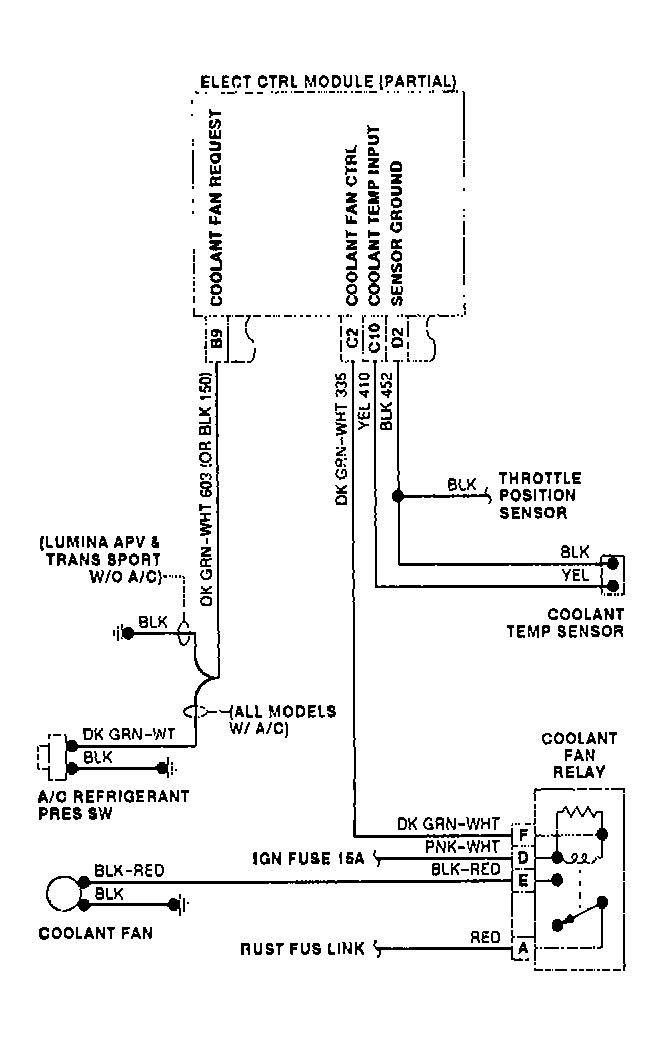

Fig 1: Cooling Fan Circuit Wiring Diagram (Lumina APV, Trans Sport & Silhouette)
G91H05398

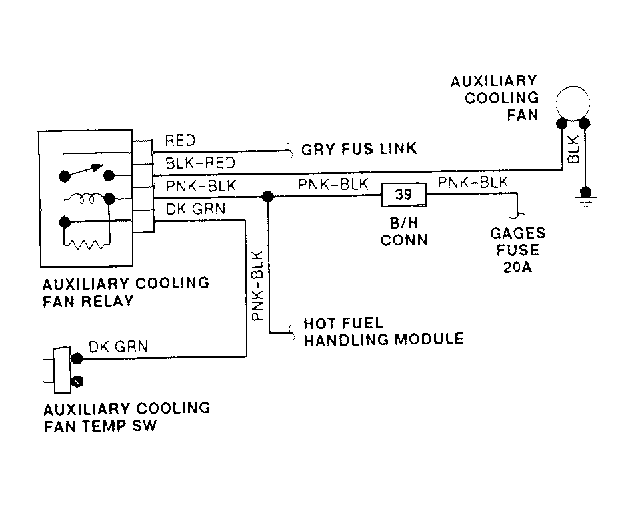

Fig 2: Cooling Fan Circuit Wiring Diagram ("C" & "K" Series with 7.4L with A/C)
G91B05395

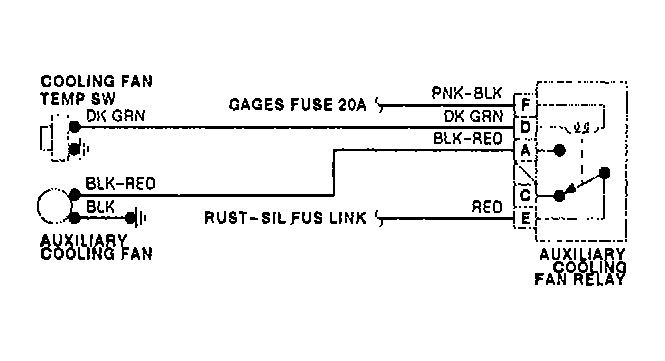

Fig 3: Cooling Fan Circuit Wiring Diagram ("G" Series with 7.4L with A/C)
G91D05396

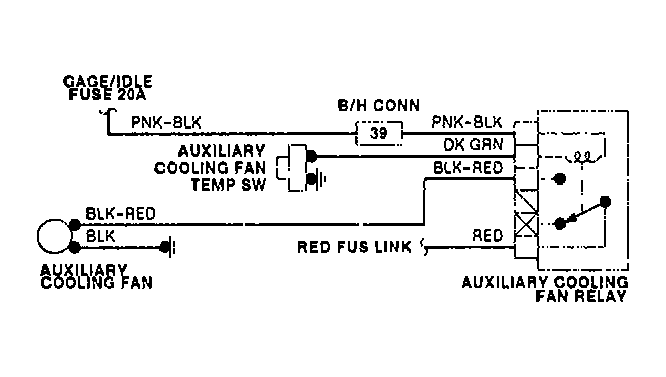

Fig 4: Cooling Fan Circuit Wiring Diagram ("R" & "V" Series with 7.4L with A/C)
G91F05397
