Alternator Identification & Output

ALTERNATOR IDENTIFICATION & OUTPUT

Application	Part No.	Rated Amps
Astro & Safari
CS130	1101500	100
CS130	1101521	85
"C" & "K" Series
CS130	1101110	85
CS130	1101111	100
CS130	1101293	100
CS130	1101317	85
CS130	1101318	105
CS130	1105688	100
CS130	1105712	85
CS130	1105716	105
"G", "P", "R" & "V" Series
CS130	1101293	100
CS130	1101317	85
CS130	1101318	105
CS144	1101493	120
CS130	1101571	105
CS130	1101623	124
CS130	1101634	85
CS130	1101635	100
CS130	1101636	105
CS130	1101806	105
CS130	1101812	100
CS130	1101814	100
CS144	1102635	124
12SI	1105632	70
CS130	1105688	100
CS130	1105710	85
CS130	1105711	100
CS130	1105712	85
CS130	1105715	105
CS130	1105716	105
CS130	1105718	105
CS130	1105720	105
CS144	10479809	124
CS144	10479812	124
Lumina APV, Silhouette & Trans Sport
CS130	1105694	100
Bravada, "S" & "T" Series
CS130	1101259	85
CS130	1101293	100
CS130	1101317	85
CS130	1101346	96
CS130	110479808	85

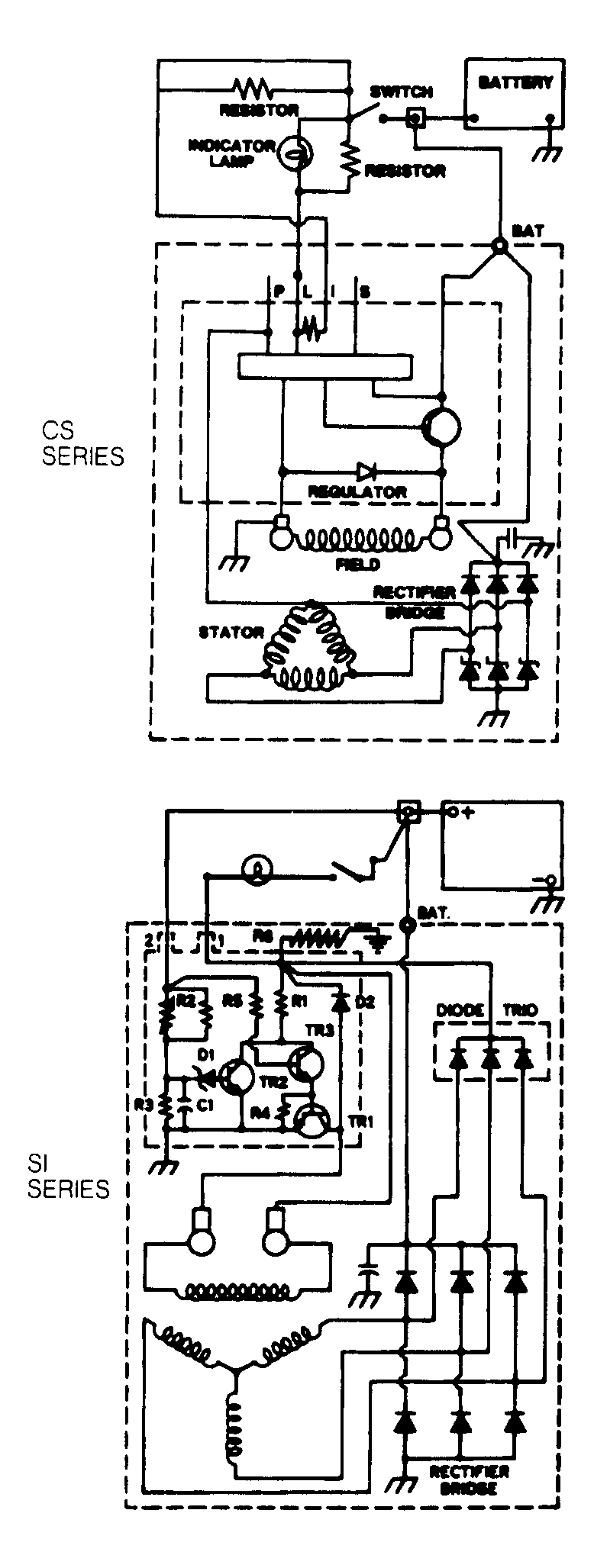

Fig 1: Charging System Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
