Chart No. 2: Left Power Window Inoperative, Right Power Window Operates Normally

To perform test, see Fig 1 .

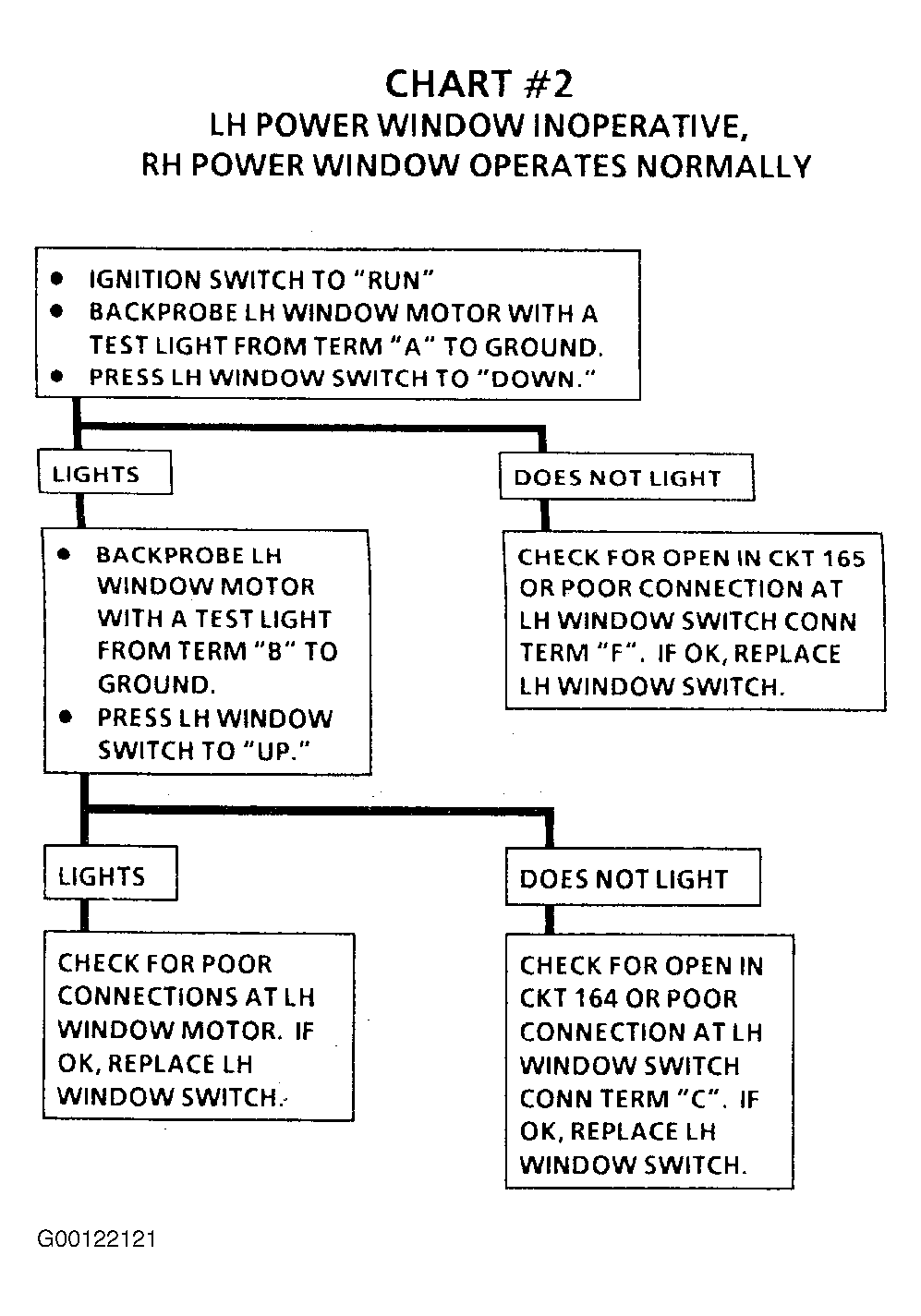

Fig 1: Chart No. 2 - Left Power Window Inoperative, Right Power Window Operates Normally
G00122121Courtesy of GENERAL MOTORS CORP.
