Component Locations

Component	Location

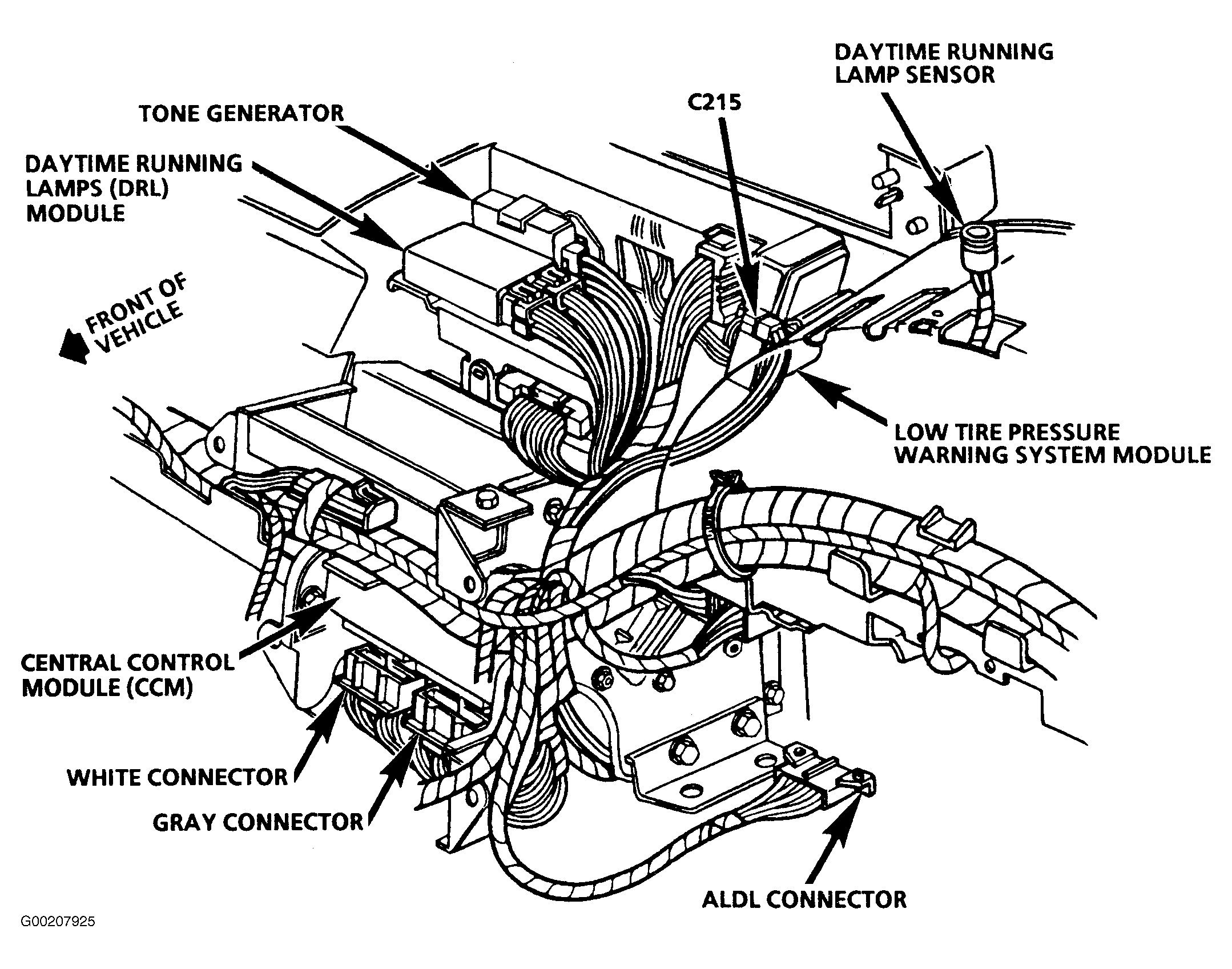

ALDL Connector	Under left side of I/P. See Fig 1 .
Central Control Module (CCM)	Behind middle of I/P. See Fig 1 .
Defogger Relay	Bottom right side of I/P. See Fig 2 .

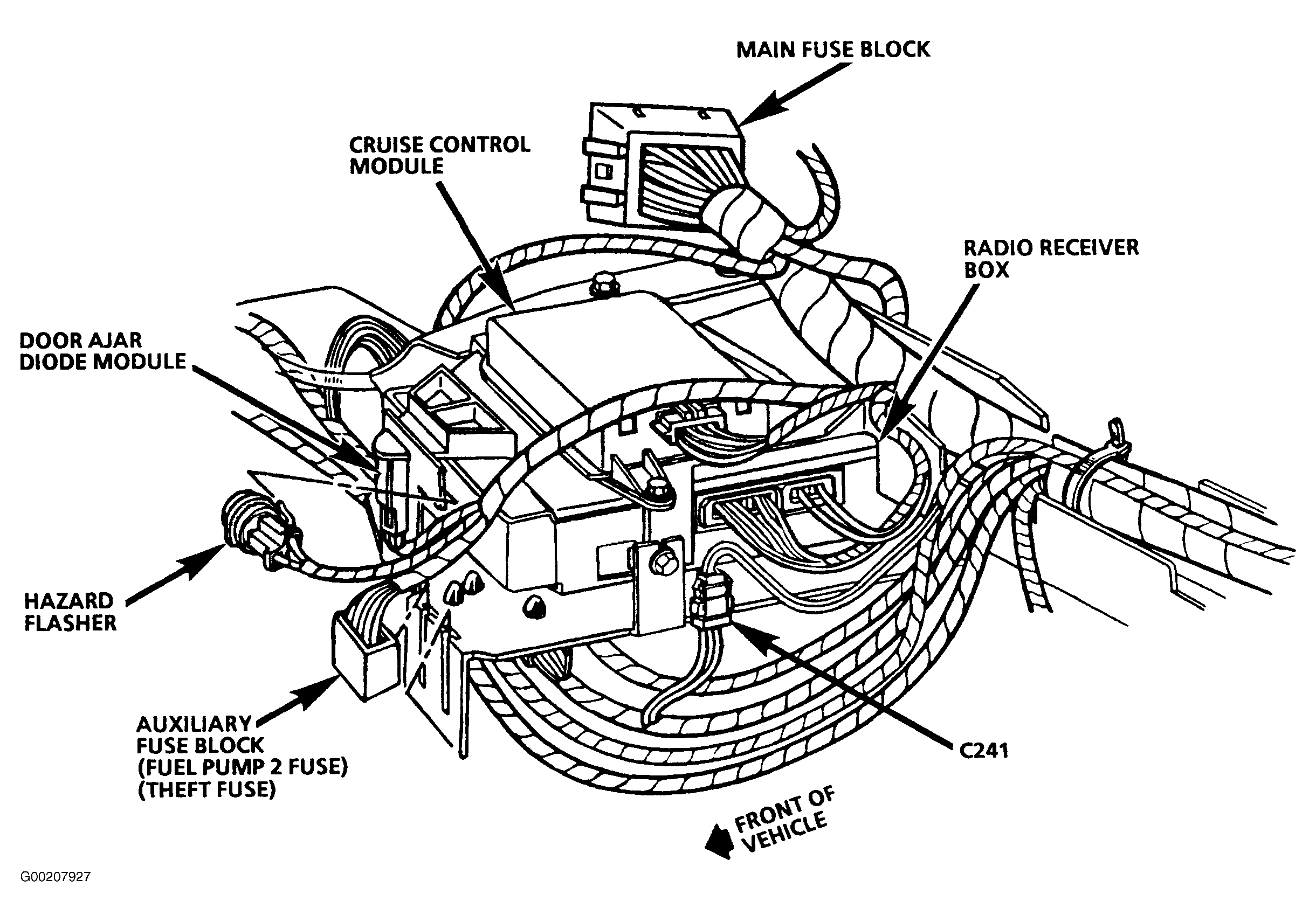

Diode Module	Below right side of I/P. See Fig 3 .

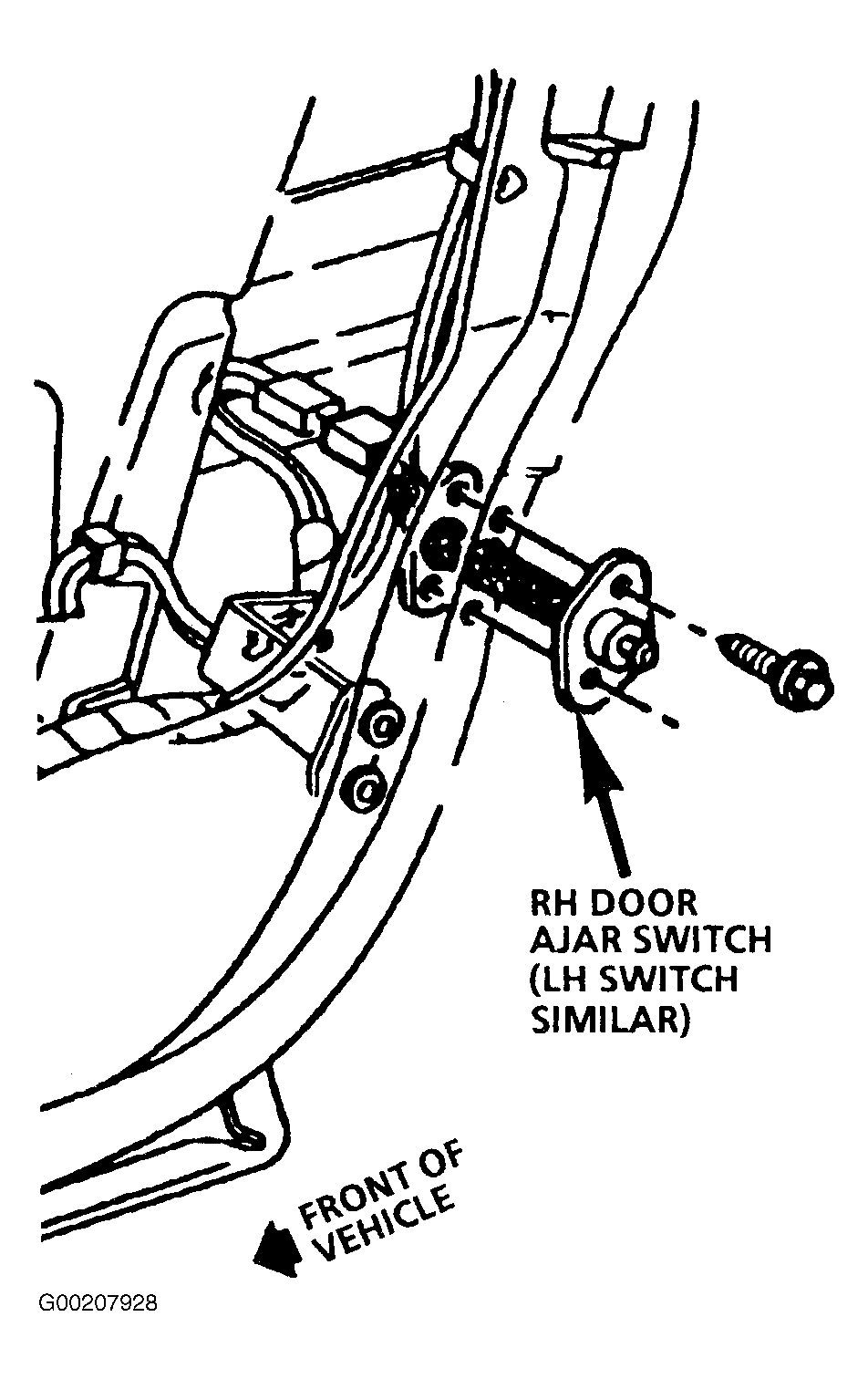

Door Ajar Switches	In each door. See Fig 4 .
Door Key Switches	In each door, at lock cylinders.

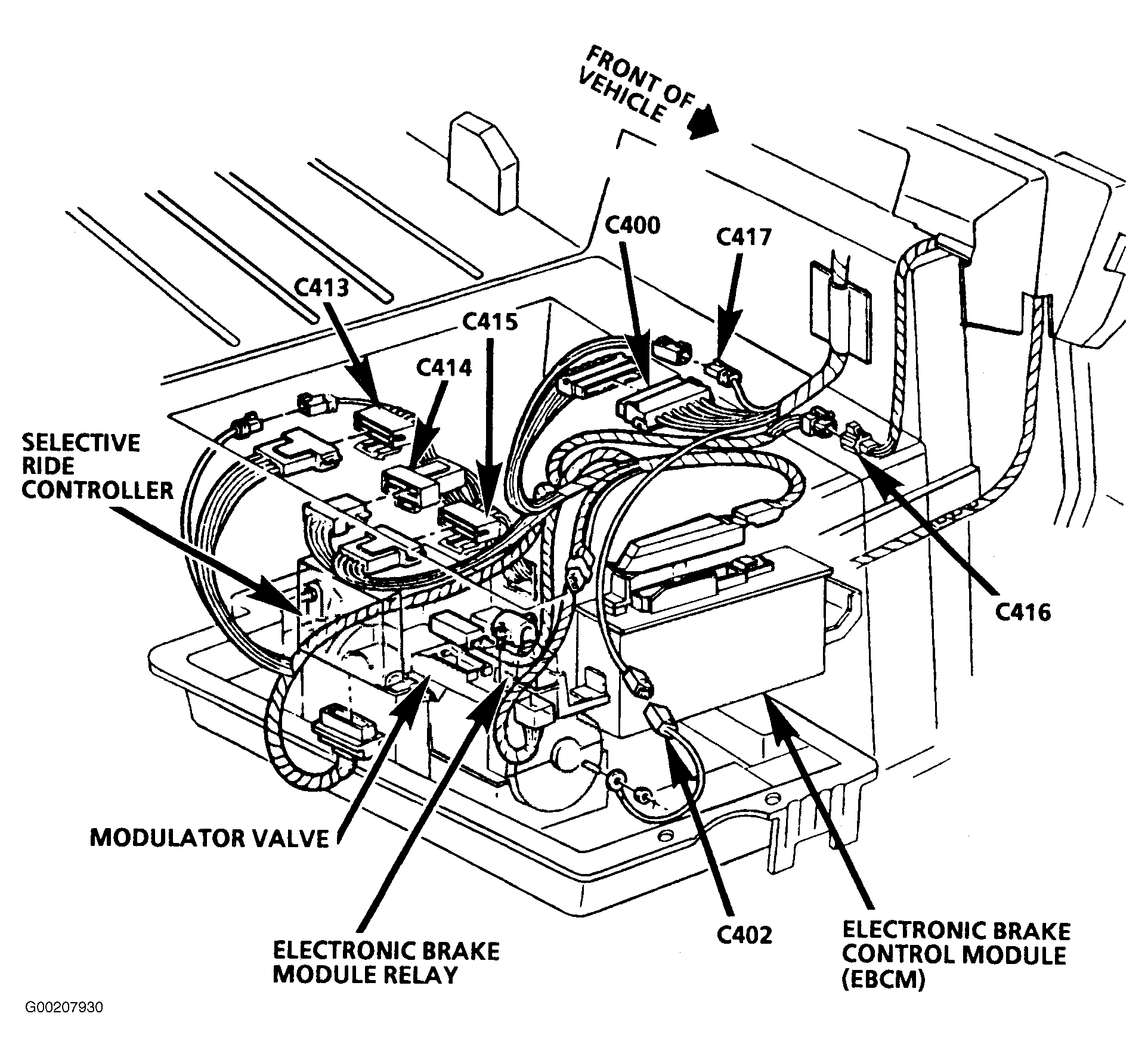

Electronic Brake Control Module	Rear of cargo Compartment, under cargo deck. See Fig 6 .

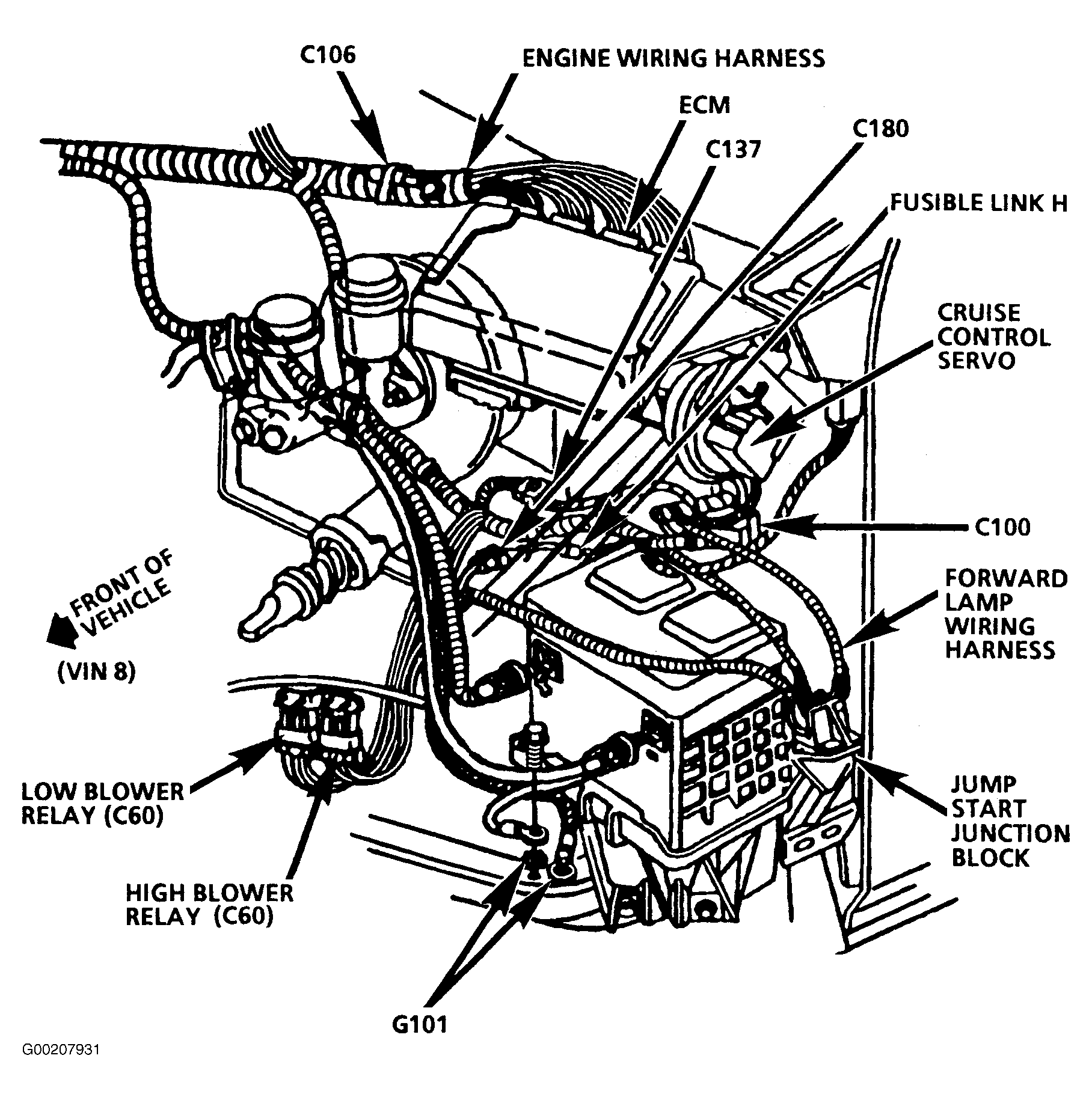

Electronic Control Module (ECM)	Left rear of engine compartment.
Fuel Tank Unit	Rear of vehicle, on top of fuel tank.

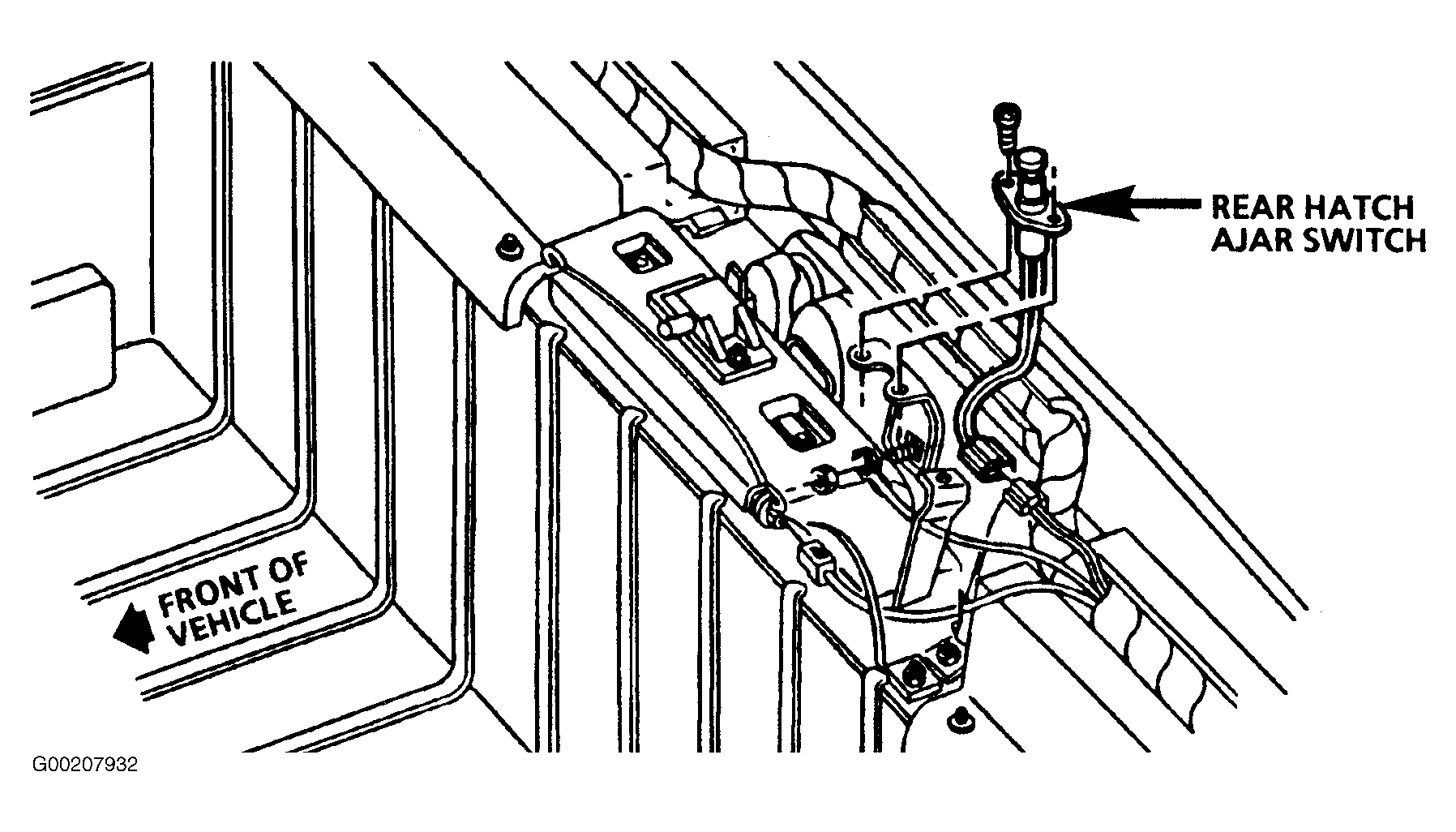

Hatch Ajar Switch	Rear of cargo compartment, on end panel. See Fig 8 .

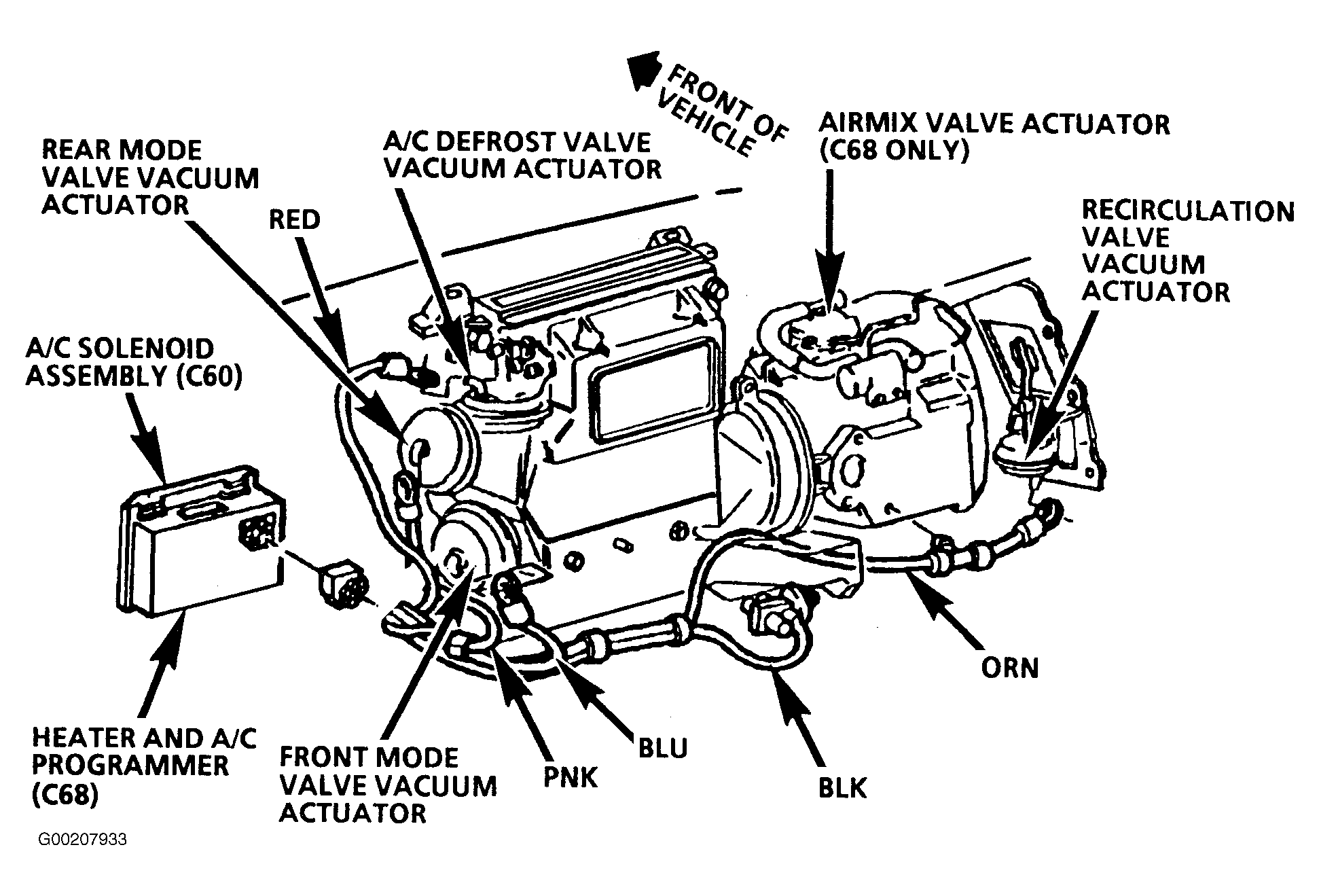

Heater & A/C Programmer	Behind left side of I/P, right of steering wheel. See Fig 9 .
Horn Relay	Bottom right side of I/P. See Fig 2 .
Ignition Switch	Beneath I/P, on top of steering column. See Fig 10 .
Key-In-Ignition Switch	Back of ignition switch key cylinder.
Main Fuse Block	Far right side of I/P.
Oil Pressure Switch (VIN 8)	Top left rear of engine.
Oil Pressure Switch (VIN J)	Right front of engine.

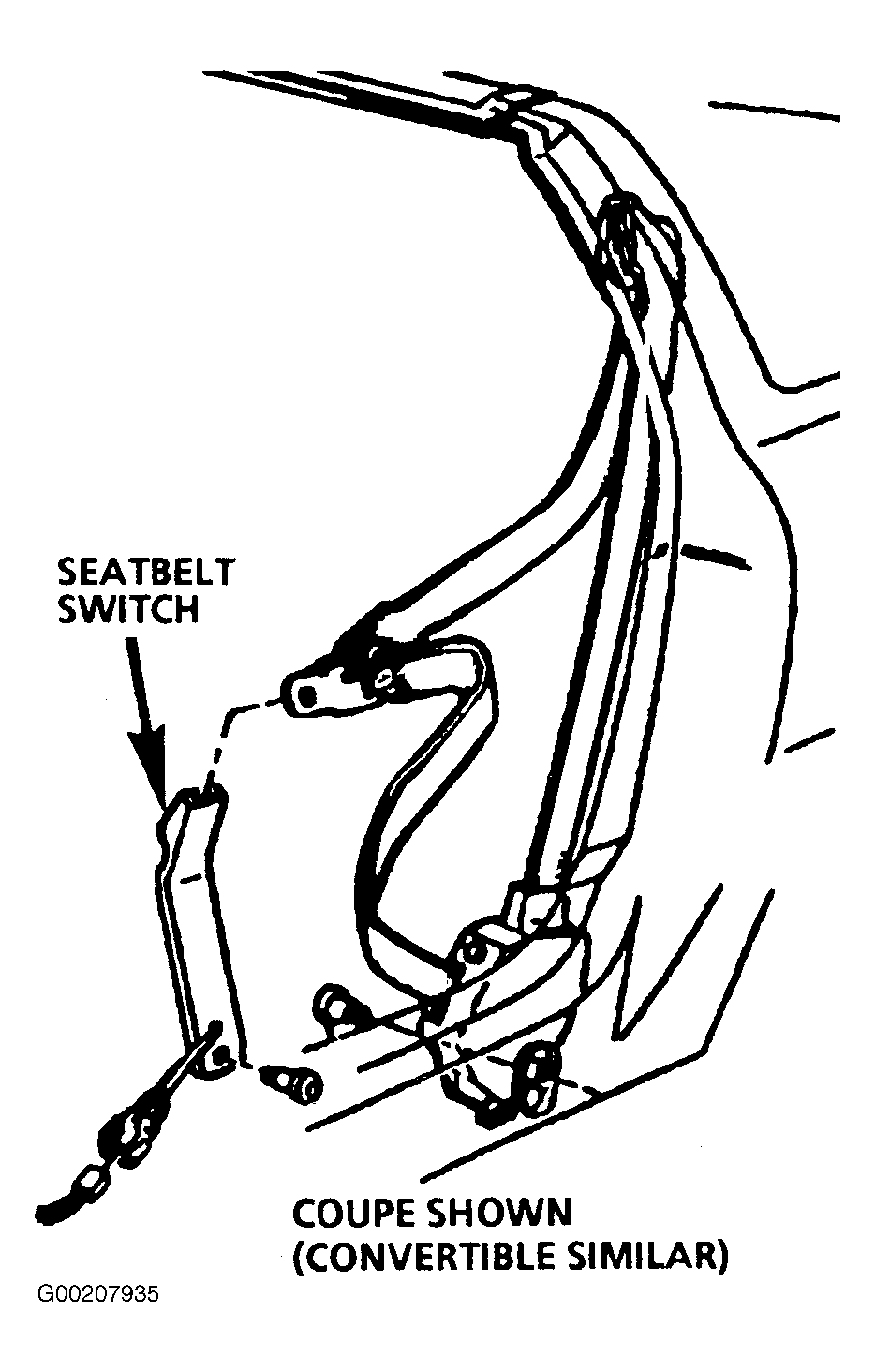

Seatbelt Switch	Part of driver's seatbelt buckle assembly. See Fig 11 .

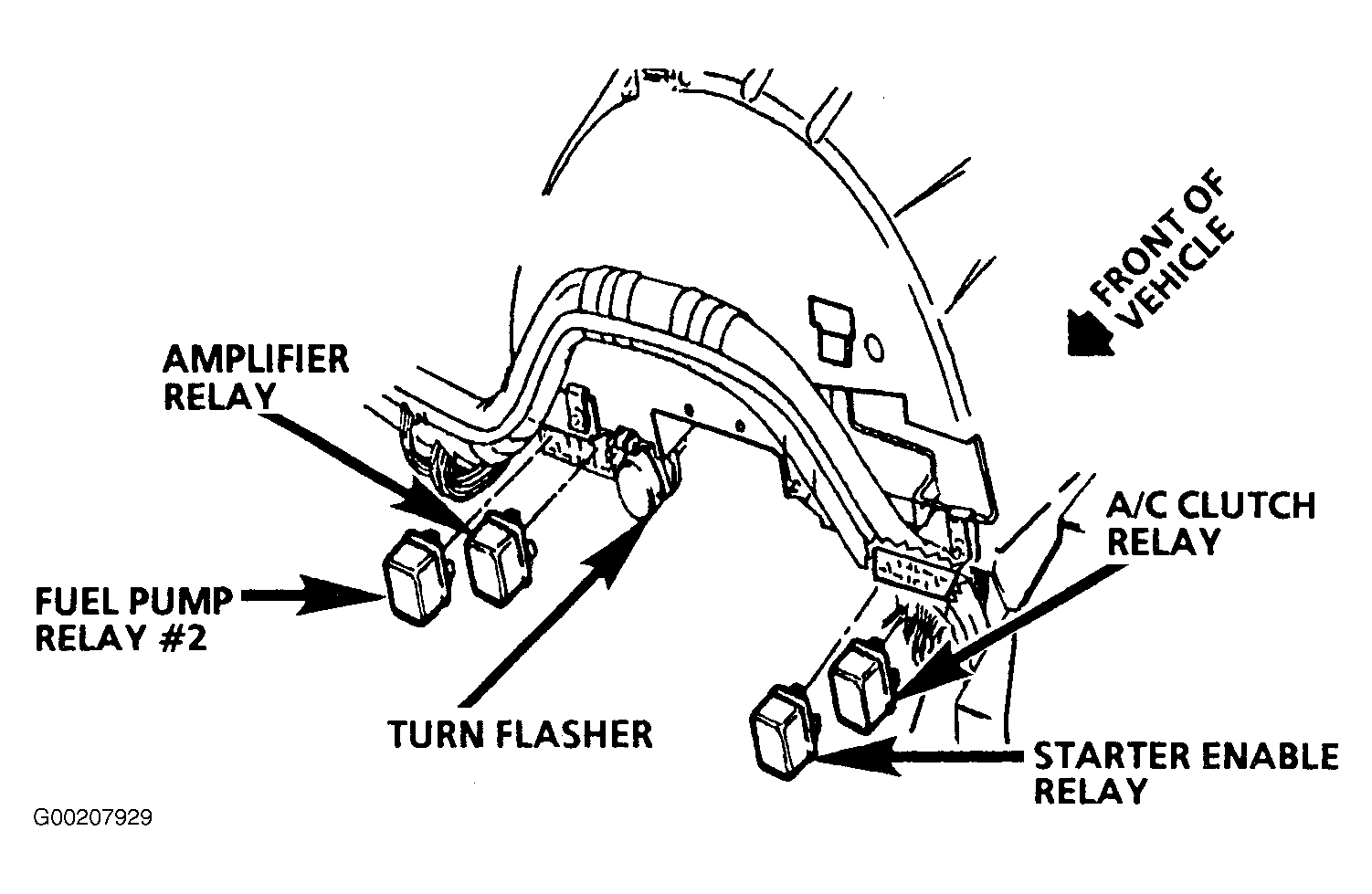

Starter Enable Relay	Bottom left side of I/P, left of steering column. See Fig 5 .

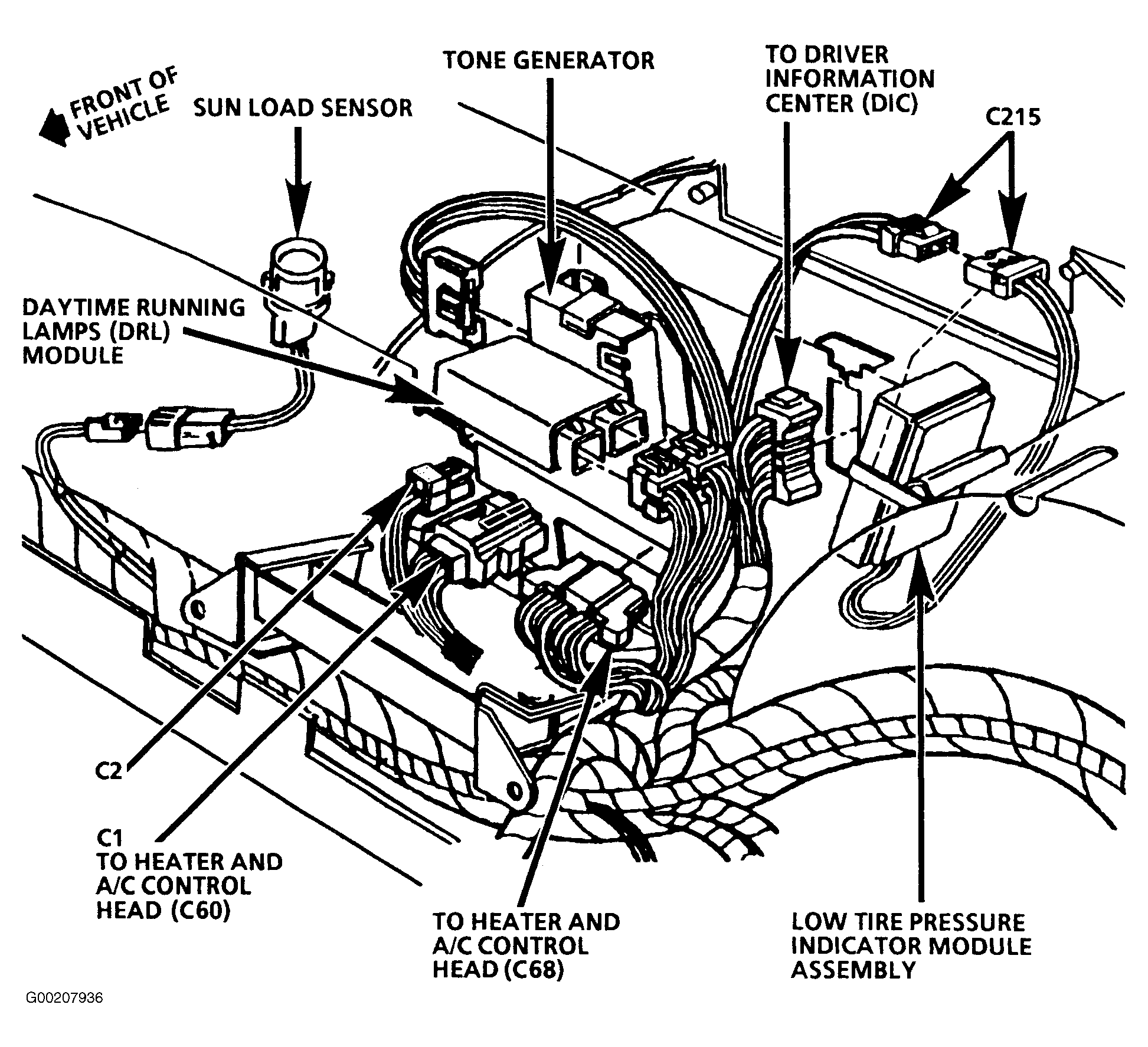

Tone Generator	Left top of I/P, near driver information center. See Fig 12 .

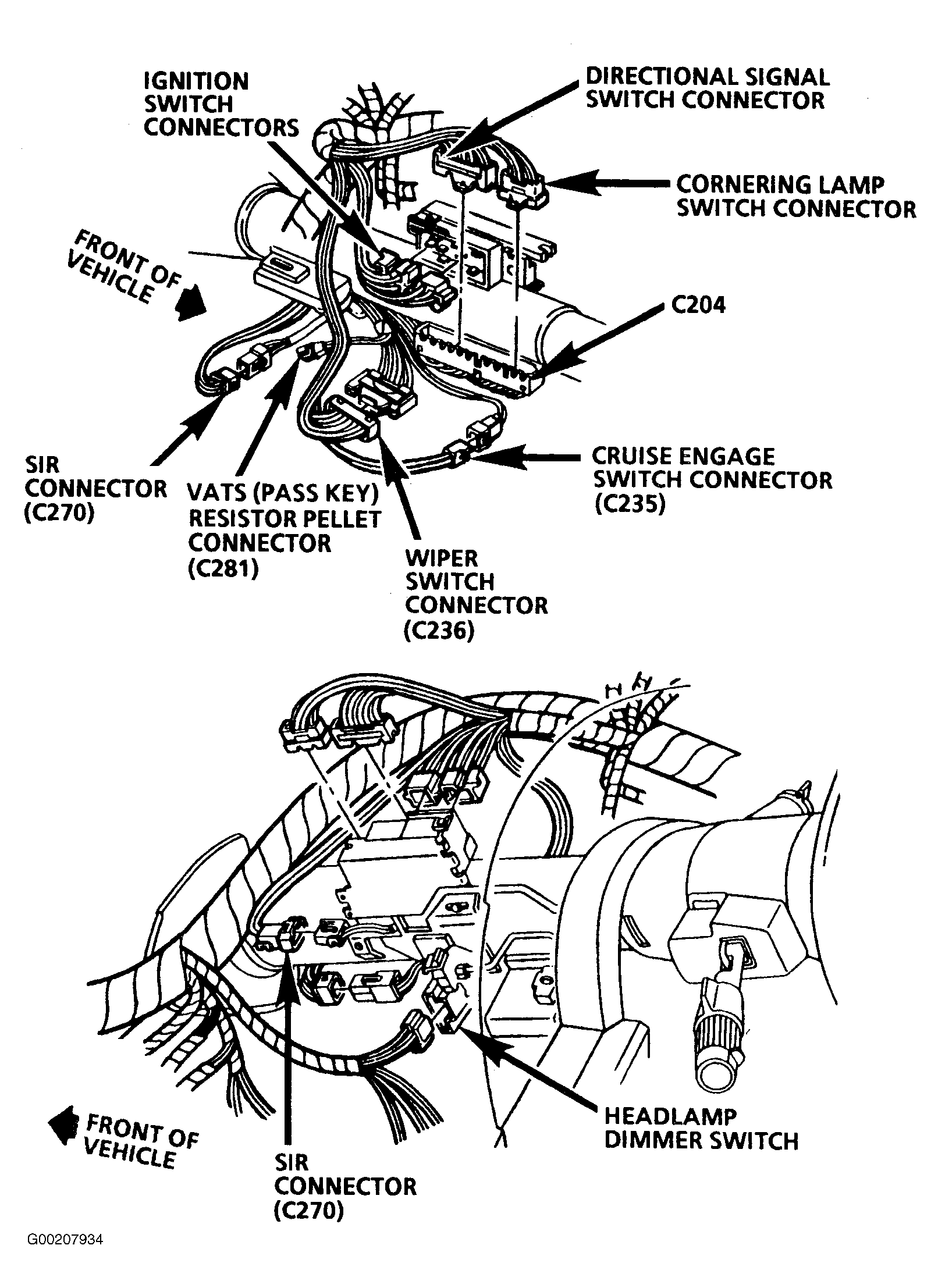

C204 (11 Cavities)	Base of steering column. See Fig 10 .
C209 (15 Cavities)	Behind right side of I/P.
C237 (16 Cavities)	Behind right side of I/P/
C238 (10 Cavities)	Behind right side of I/P.
C239 (10 Cavities)	Behind right side of I/P.
C400 (15 Cavities)	Left rear of cargo compartment. See Fig 6 .
C401 (15 cavities)	Right rear of cargo compartment.
C450 (4 Cavities)	Near Top Of Fuel Tank
G106 (Engine VIN 8)	Left rear of engine, near oil filter. See Fig 13 .
G106 (Engine VIN J)	Right rear of engine, on bell housing.
G109	Right middle of engine compartment, on frame.
G401 (Convertible)	Cargo compartment, behind right seat.
