Floor Jack

When supporting vehicle with floor jack, the support should be placed at suspension lift points or frame lift points. Refer to Figs. Fig 1 through Fig 3 .

Fig 1: Lifting Points

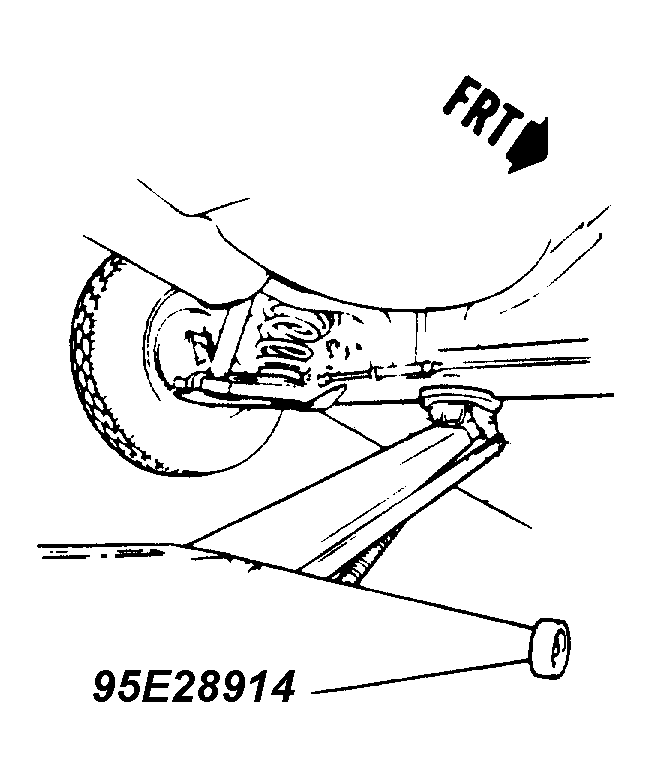

Fig 2: Using Floor Jack on Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

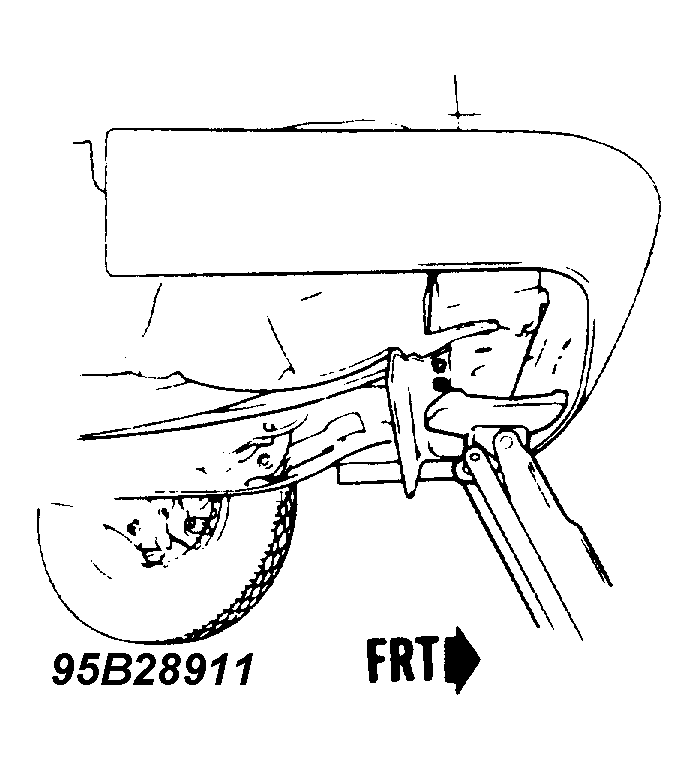

Fig 3: Using Floor Jack on Rear of Vehicle

Courtesy of GENERAL MOTORS CORP.
