Frame Contact Hoist

Proper adapters must contact vehicle in areas shown in illustrations. Adapters must be positioned to distribute load and support vehicle in a stable manner. DO NOT allow lift pads to contact exhaust system components. See Fig 1 and Fig 2 .

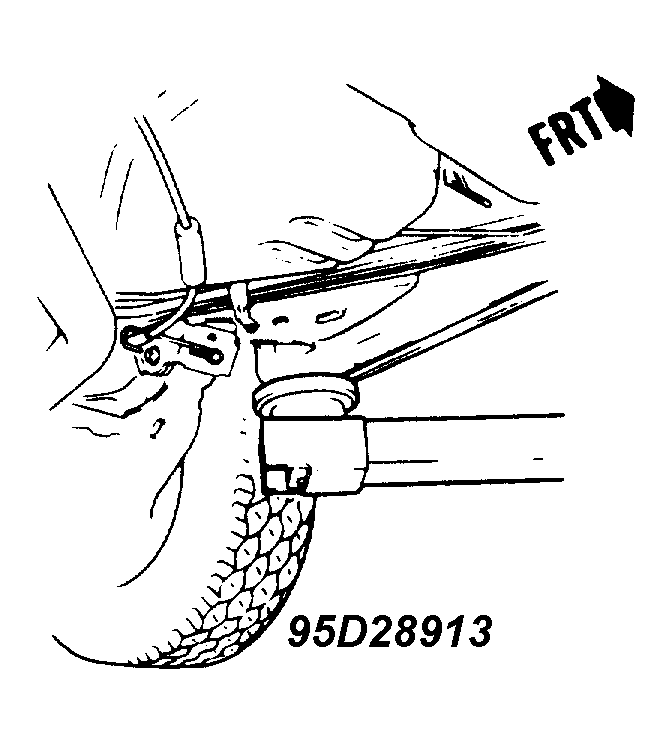

Fig 1: Using Frame Contact Hoist Rearward of Front Tire

Courtesy of GENERAL MOTORS CORP.

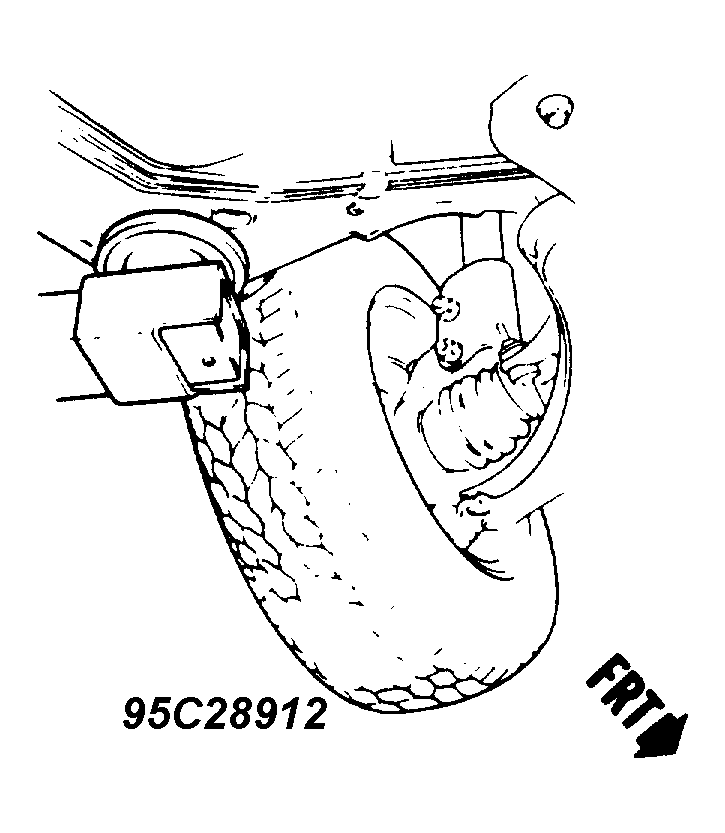

Fig 2: Using Frame Contact Hoist on Forward of Rear Tire

Courtesy of GENERAL MOTORS CORP.
