EGR Problem

EGR valve sticking open at idle is usually accompanied by a rough idle and/or stalling. If Code 45 is intermittent, see INTERMITTENTS in H - TESTING W/O CODES article.

Fig 1: Code 45, Rich Exhaust Ckt Diag

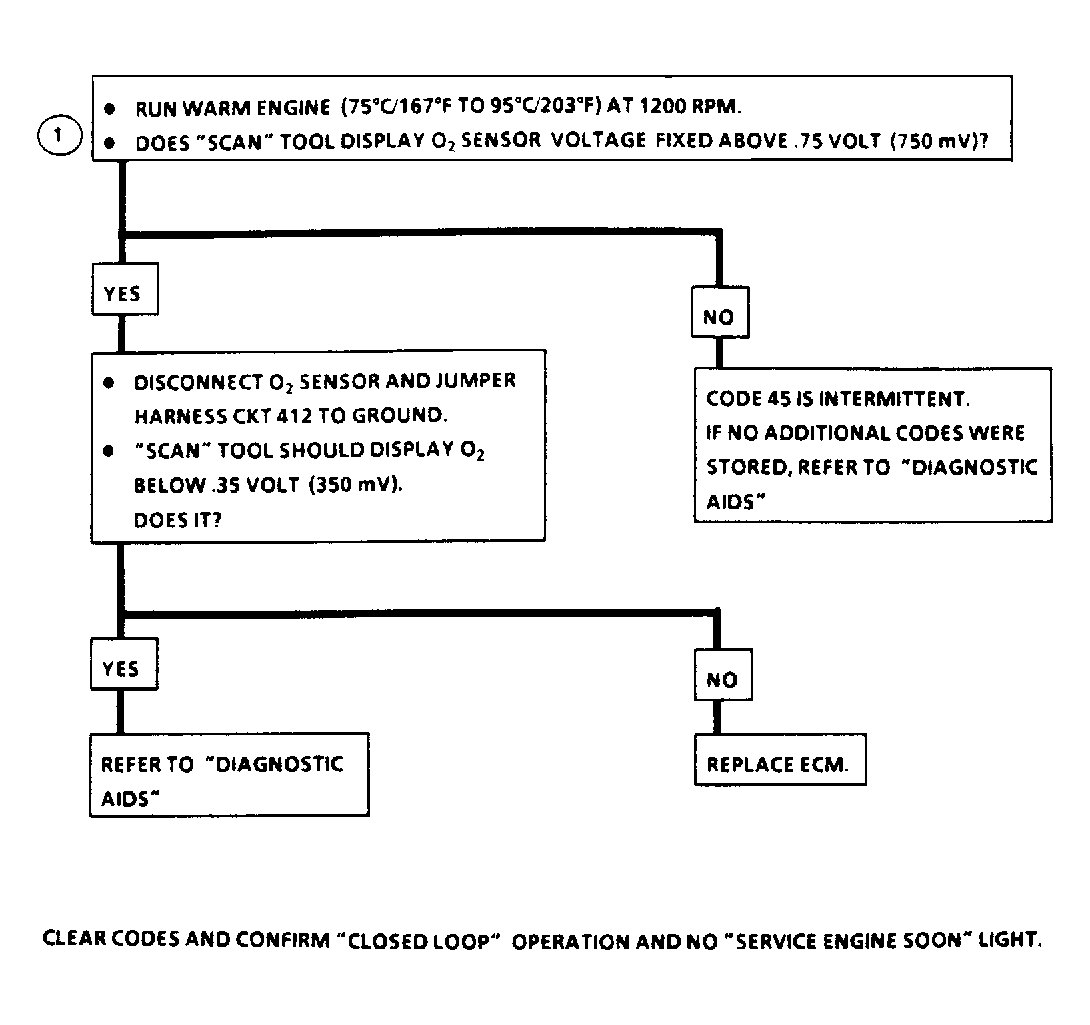

Fig 2: Code 45, Rich Exhaust Flow Chart
