Indicators & Gauges Pin Testing

Checking voltage or resistance at instrument cluster connector can be used to determine if proper readings are supplied to the instrument cluster.

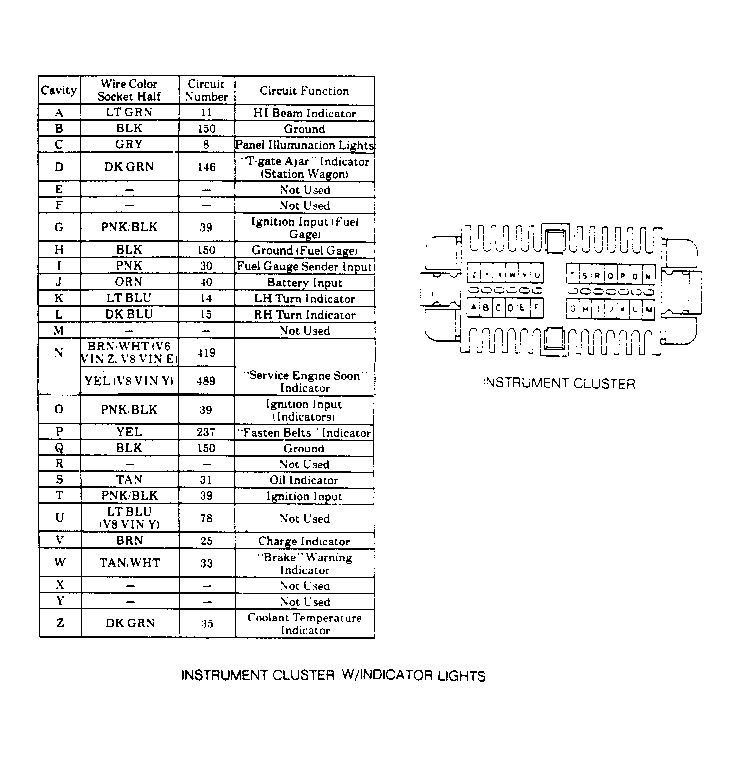

Fig 1: B Body Instrument Cluster Pin Testing. (1 OF 2)

Courtesy of GENERAL MOTORS CORP.

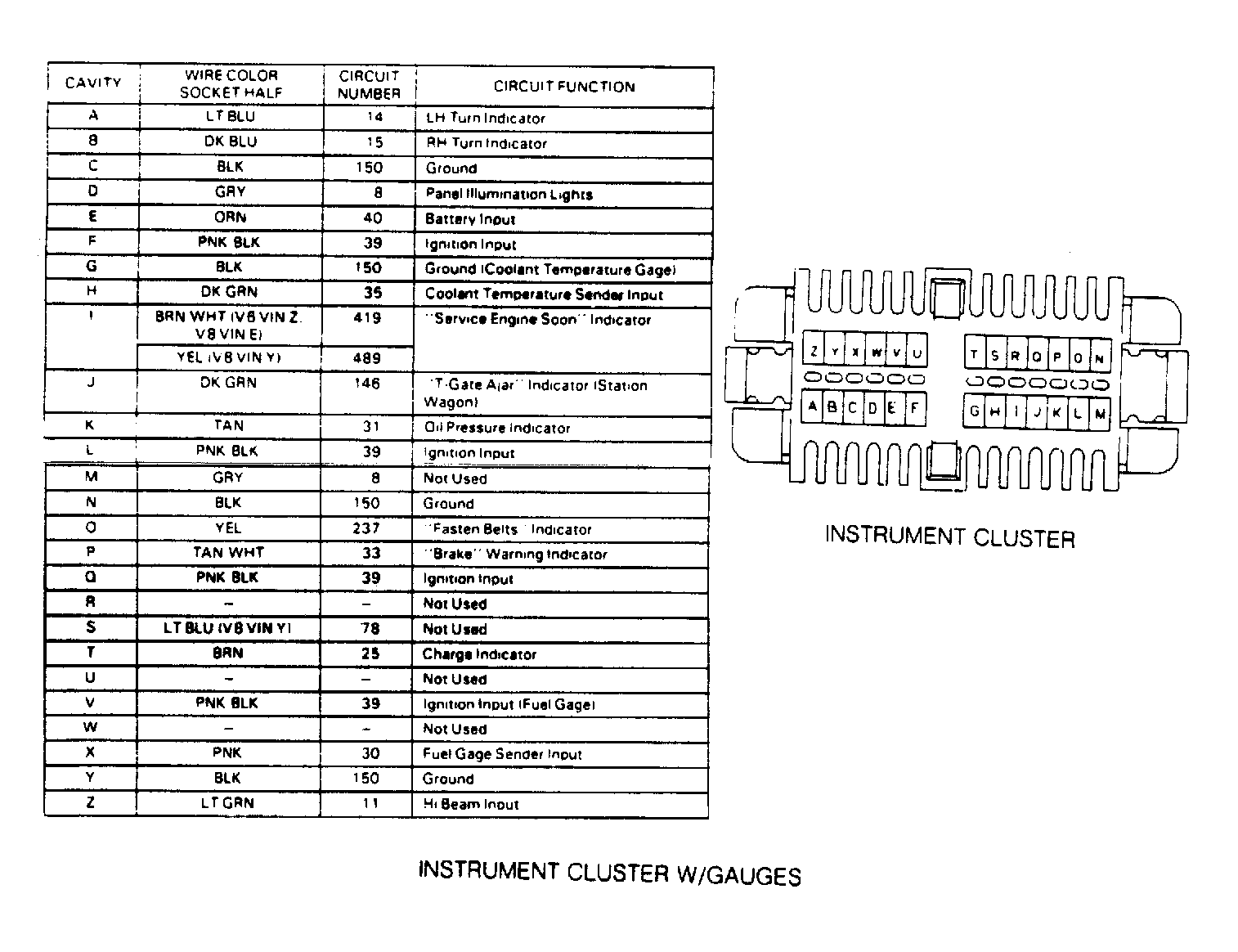

Fig 2: B Body Instrument Cluster Pin Testing. (2 OF 2)

Courtesy of GENERAL MOTORS CORP.
