Test A: Door Lock Motor Test

To perform door lock motor test, see Fig 1 .

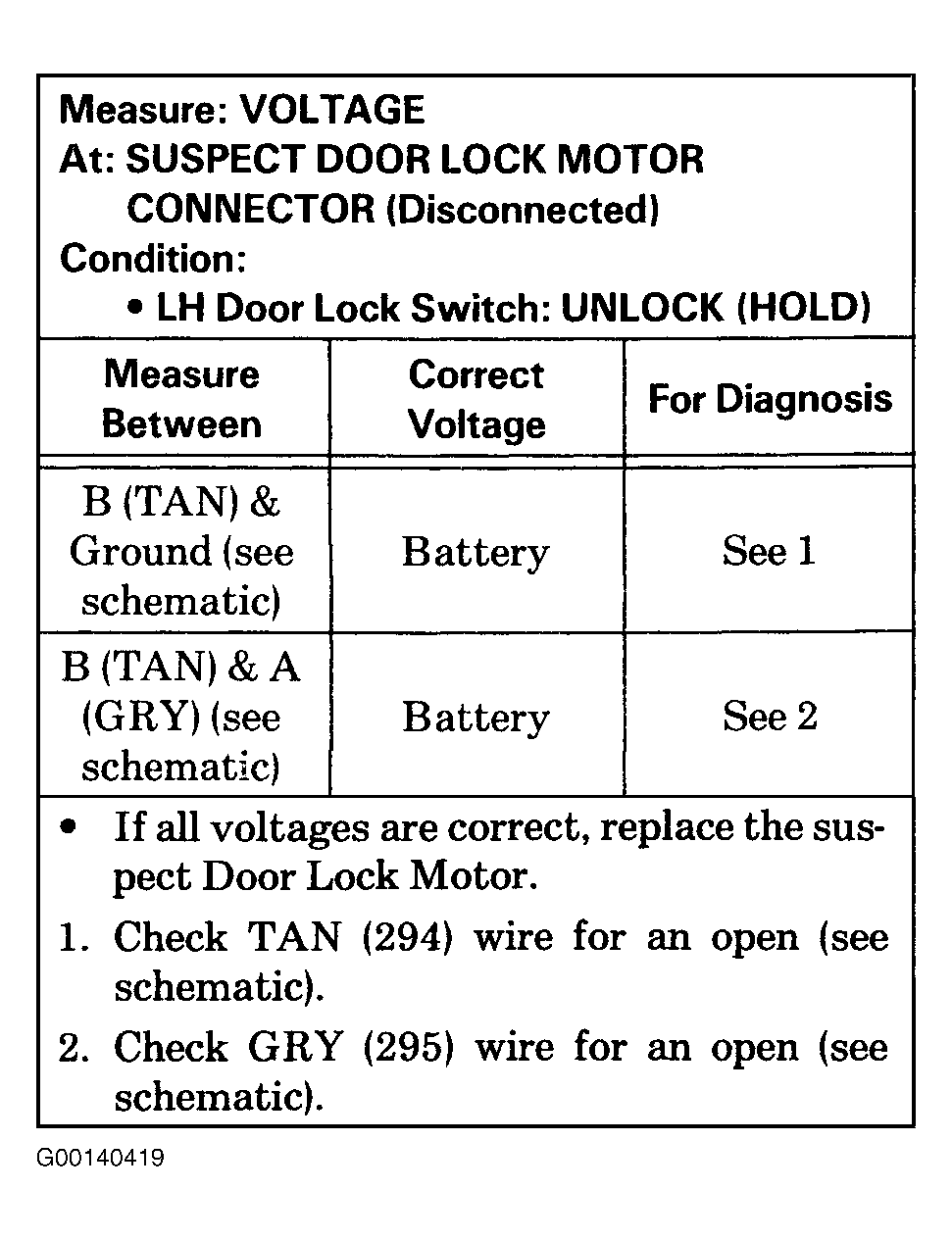

Fig 1: Test A: Door Lock Motor Test
G00140419Courtesy of GENERAL MOTORS CORP.
