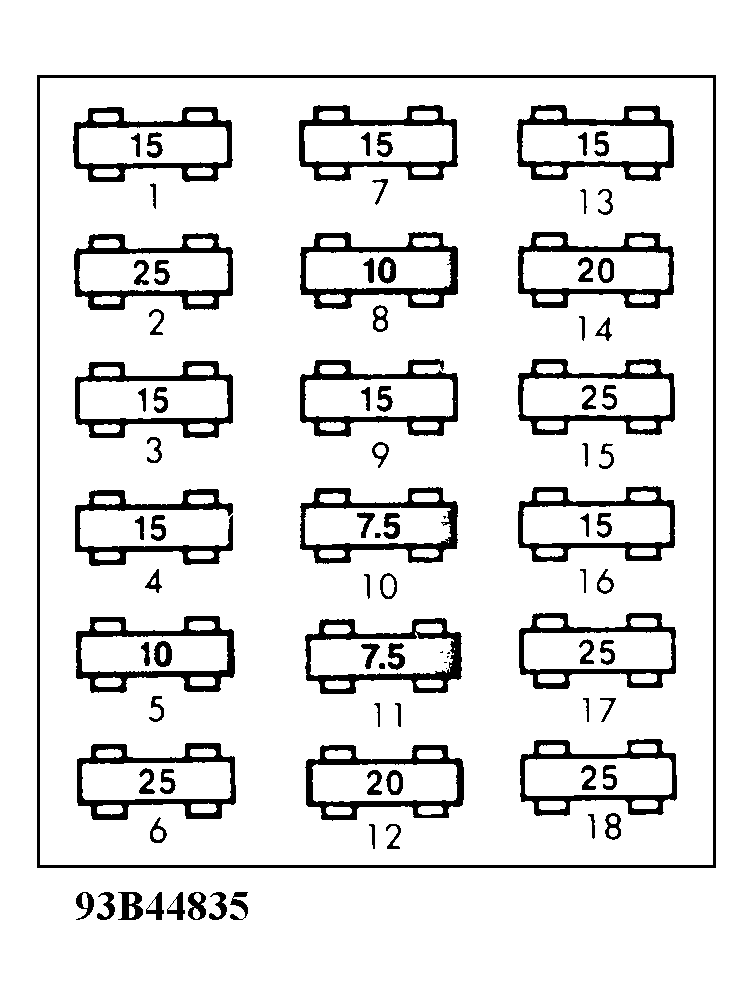

Fuse Panel Identification - 1991 Models
Courtesy of GENERAL MOTORS CORP.
- 1 - 15 Amp
- Instrument Panel Light, Overhead Console, Dome Lights, Courtesy Lights, Underhood Light, Reading Lights, Door/Key Lock Switches
- 2 - 25 Amp
- Electronic Level Control
- 3 - 15 Amp
- Horns, Audio Alarm Module
- 4 - 15 Amp
- Front Mark Lights, Front Turn Lights, Rear Stop/Turn Lights, Instrument Cluster Turn Indicators
- 5 - 10 Amp
- Fuel Pump Relay, Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
- 6 - 25 Amp
- Radio, Cigarette Lighter
- 7 - 15 Amp
- Front Park Lights, Front Marker Lights, Taillights, License Light, Rear Marker Lights, LPS Fuse, Headlight Switch, Daytime Running Lights
- 8 - 10 Amp
- Fuel Injectors, Electronic Control Module, Electronic Spark Control Module, EGR Electronic Vacuum Regulator Valve
- 9 - 15 Amp
- Instrument Cluster Turn Indicators, Front Mark Lights, Front Turn Lights, Rear Stop/Turn Lights, Back-Up Lights
- 10 - 7.5 Amp
- Instrument Cluster, Transaxle Converter Clutch Solenoid, Daytime Running Lights, Electronic Level Control Height Sensor
- 11 - 7.5 Amp
- Illumination Bulbs, Ashtray, Auxiliary Blower Switch, Door Lock Switches, Heater & A/C Control Assembly, Instrument Cluster, Headlight Switch, Radio, Rear Window Wiper/Washer Switch, Window Switches
- 12 - 20 Amp
- Accessory Power Outlet
- 13 - 15 Amp
- Radio
- 14 - 20 Amp
- Rear Window Wiper/Washer Switch, Rear Window Wiper Motor
- 15 - 25 Amp
- Windshield Wiper/Washer Switch, Windshield Wiper, Motor Module
- 16 - 15 Amp
- A/C Compressor Relay, Audio Alarm Module, Cooling Fan Relay, Cruise Control, Daytime Running Lights, Generator, Heater & A/C Control Assembly, Solenoid Box, Temperature Door Actuator, Vehicle Speed Sensor Buffer, Pusher Fan Relay Coil, Rear Window Defogger Relay, Instrument Cluster
- 17 - 25 Amp
- Blower Motor Low Speed Relay
- 18 - 25 Amp
- Auxiliary Blower Motor
