Circuit Breaker/Relay Panel

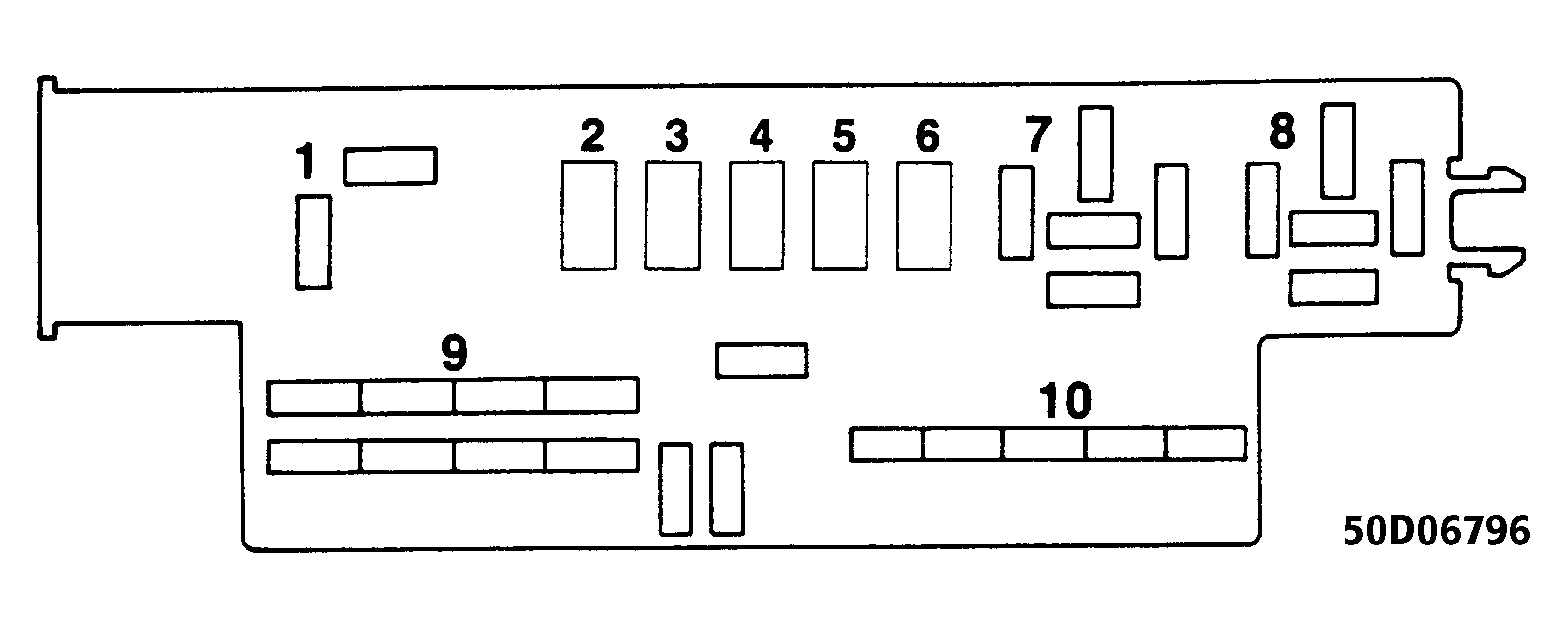

Fig 1: Circuit Breaker/Relay Panel - 1990-95
G50D06796Courtesy of GENERAL MOTORS CORP.
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
