Axle Shafts: Overhaul

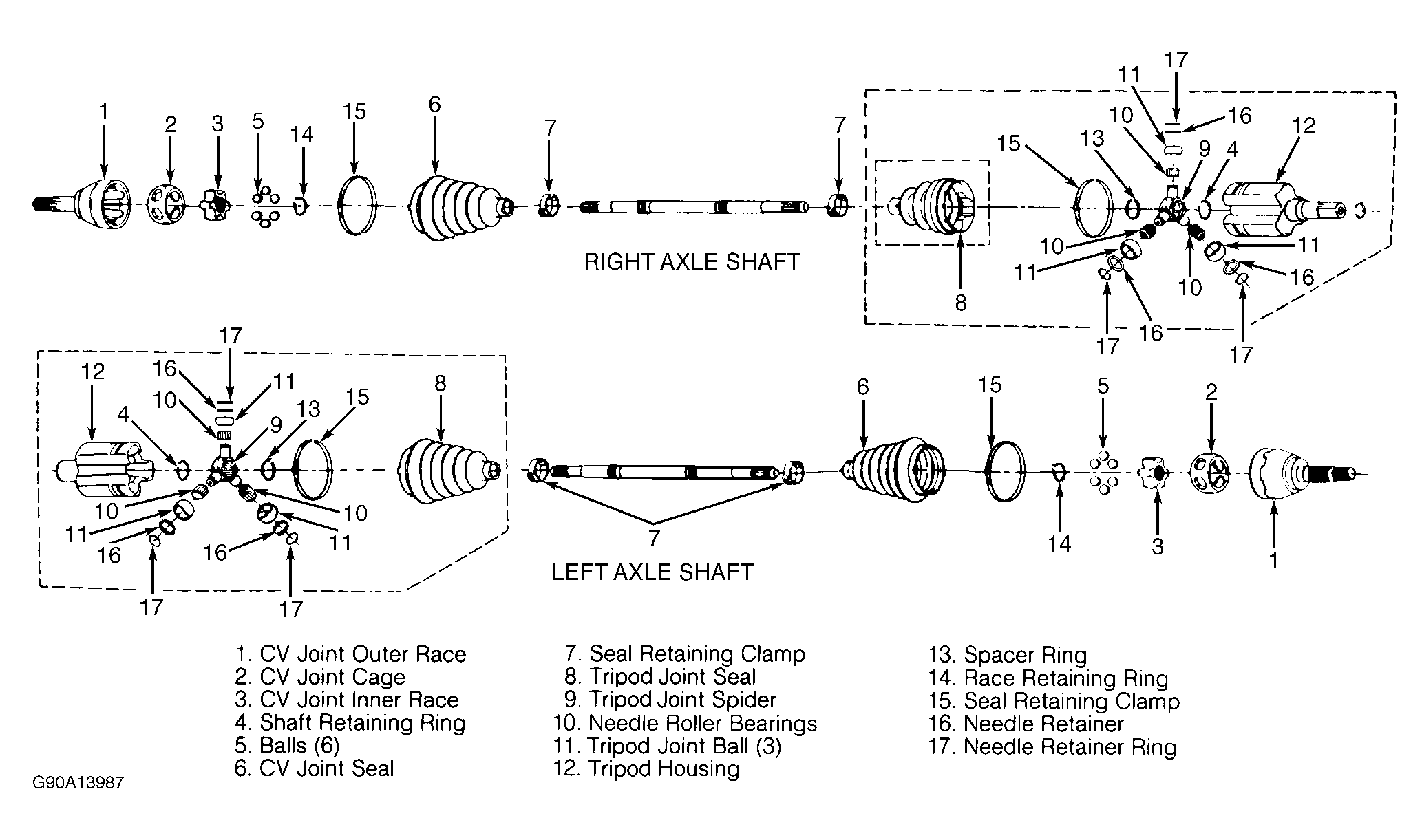

Fig 1: Exploded View of Right & Left Axle Shaft Assemblies

G90A13987

Courtesy of GENERAL MOTORS CORP.
