Electrical Component Locator: Switches

SWITCHES LOCATION

Component		Location
A/C Coolant Fan Switch		In right rear corner of engine compartment, on A/C line. See Figure .
A/C High Pressure Cut-Out Switch		In right rear corner of engine compartment, on A/C line. See Figure .
A/C Pressure Cycling Switch		On top front of evaporator. See Figure .
Ambient Temp. Override Switch		Below left side of dash, on bulkhead connector.

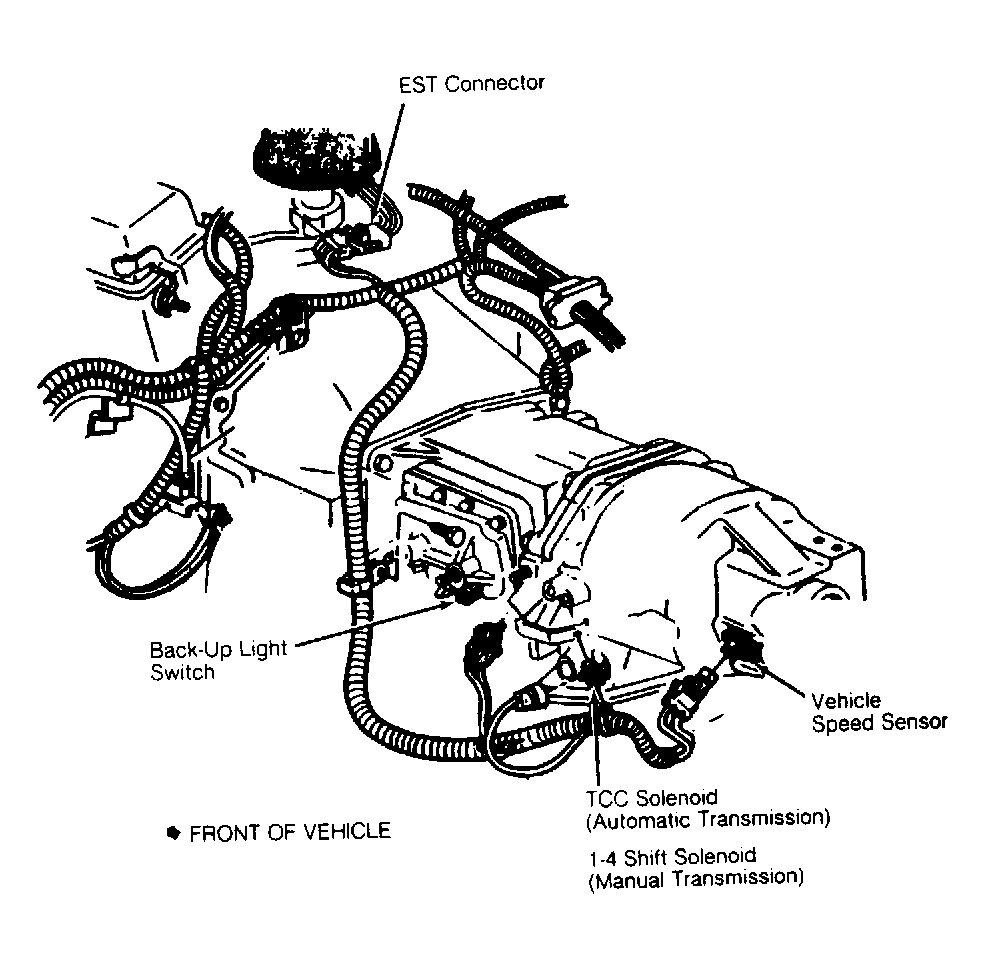

Back-Up Light Switch (Man. Trans.)		On lower left side of transmission. See Figure .
Brake Fluid Level Switch		On master cylinder.
Brake Pressure Switch		On master cylinder.
Brake Stoplight Switch		On steering column support, behind brake pedal.
Brake Switch		On brake pedal bracket.
Clutch Start Switch		On top of clutch pedal bracket.
Cooling Fan Temp. Sw. (H.D.)		On left side of engine, behind alternator.
Cruise Control Clutch Switch		On steering column support, behind brake pedal.
Cruise/TCC Brake Switch		On steering column support, behind brake pedal.
EGR Diagnostic Temp. Switch		On right rear of engine, near distributor. See Figure .

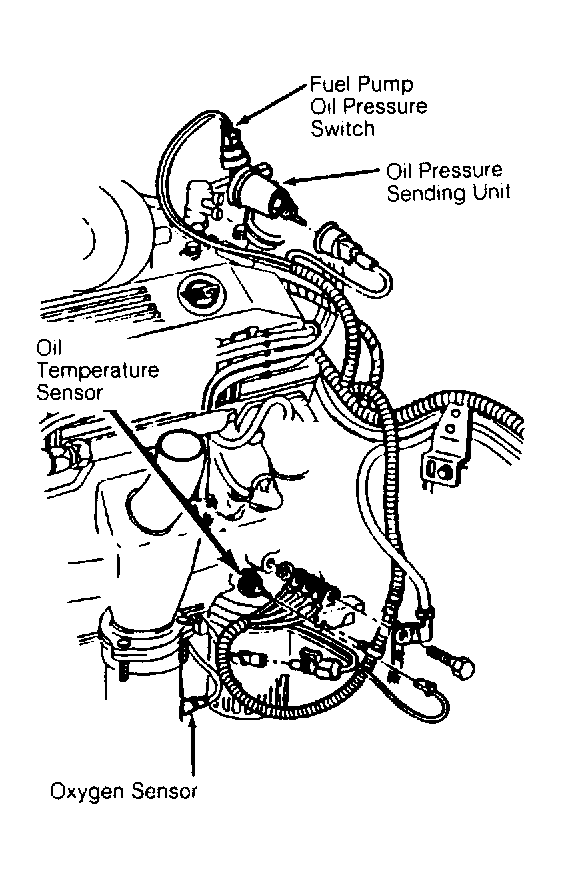

Fuel Pump Oil Pressure Switch		On rear of engine, near distributor. See Figure .
Hatch Ajar Switch		In luggage compartment, near hatch release.
Headlight Dimmer Switch		On steering column, opposite ignition switch.
Ignition Key Warning Switch		In top of steering column.
Ignition Switch		Under dash, on right side of steering column.
Lateral Acceleration Switch		Below center console.
Manual Overdrive Defeat Switch		In front floor console.
Neutral/Start Switch		On shift lever.
Overdrive Select Switch (Auto. Trans.)		In console, near shifter.
Parking Brake Switch		Under parking brake lever.
Seat Belt Switch		In driver's side seat belt assembly.
Transmission Switches
1st Gear		On left side of transmission.
4th Gear (Auto. Trans.)		On left side of transmission.
