Chevrolet
>>
1989
>>
Corvette 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
5.0L/5.7L PFI Tests W/Codes
>>
Component Location
Component Location

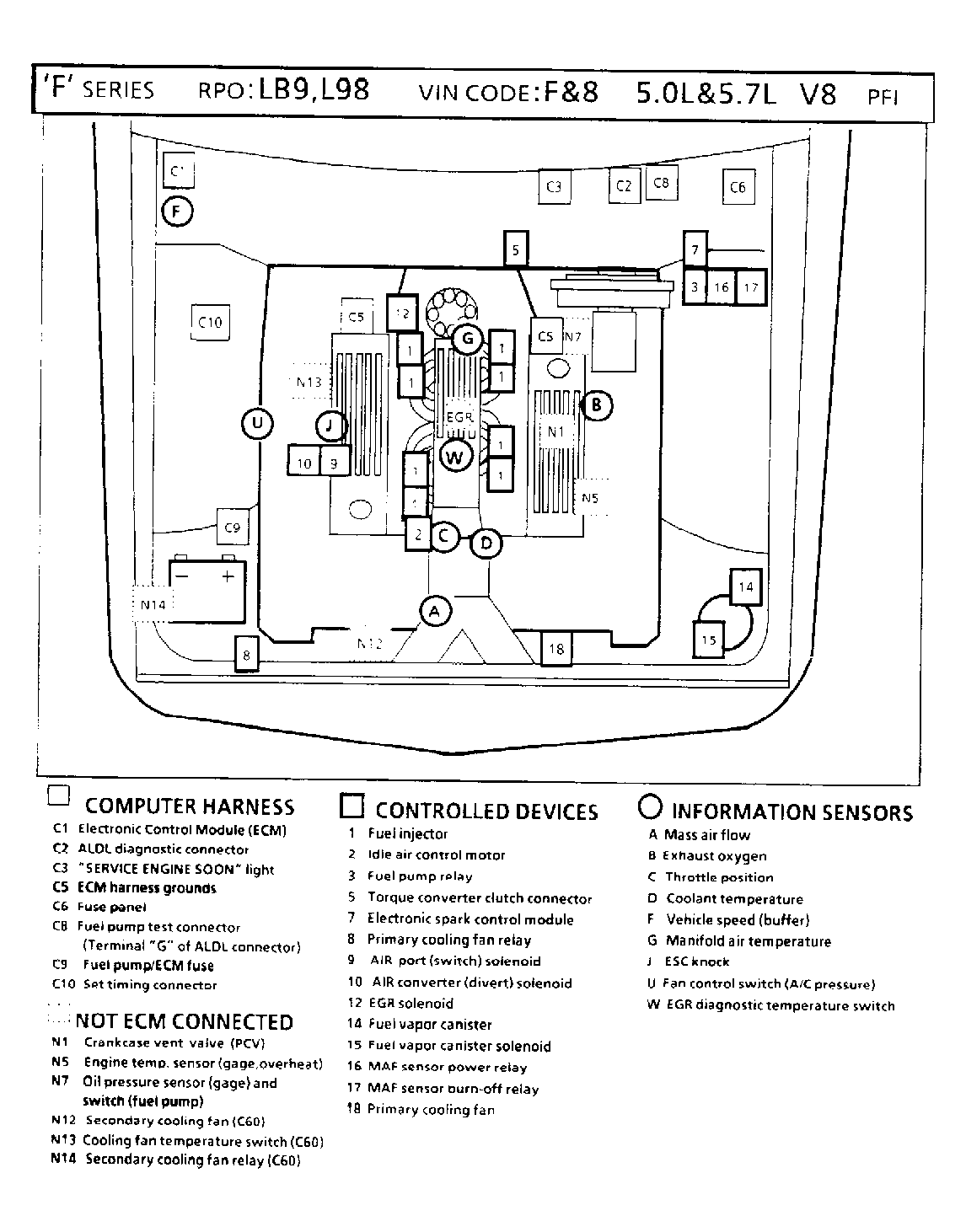

Fig 1: Component Location Camaro (5.0L & 5.7L)
Courtesy of GENERAL MOTORS CORP.

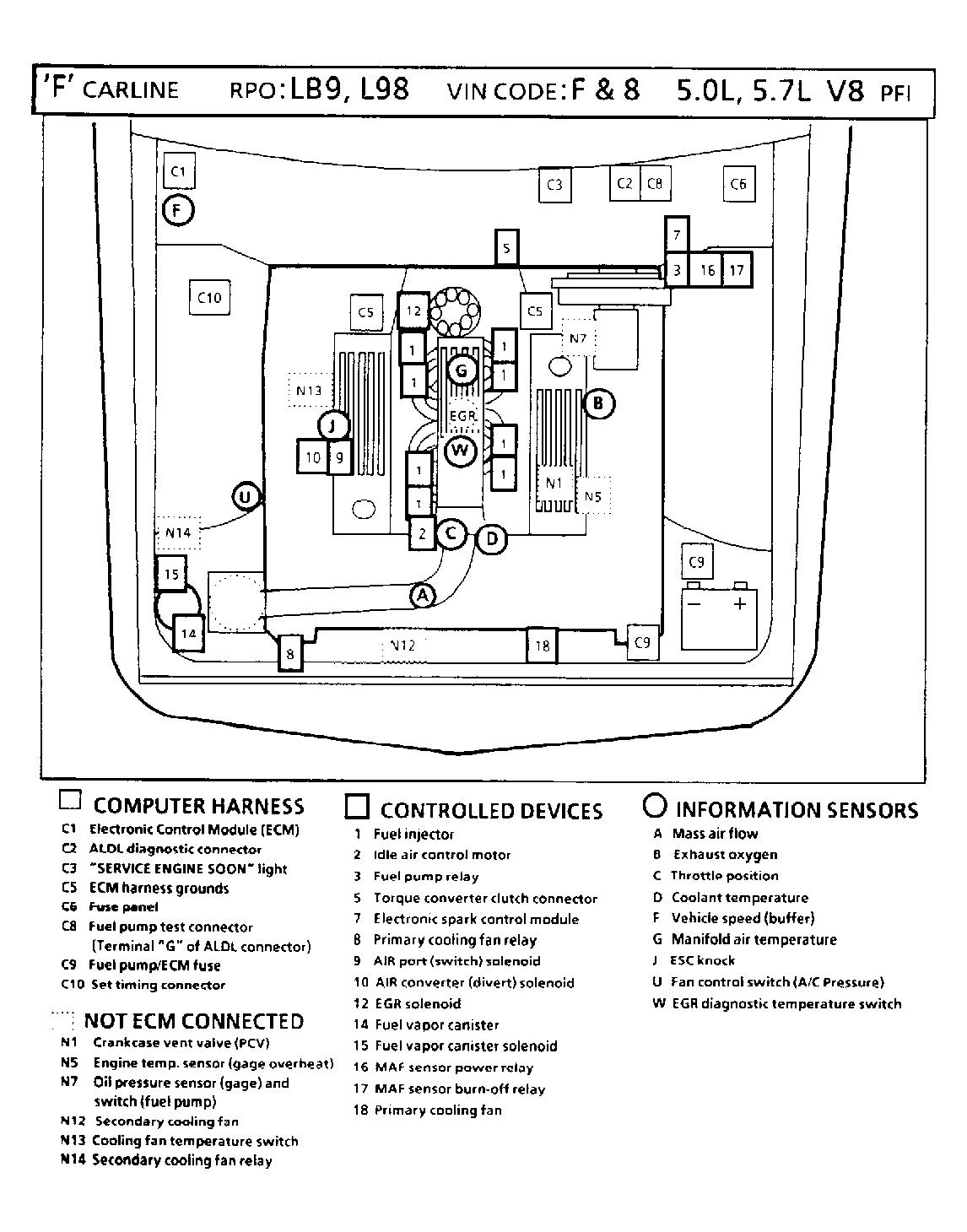

Fig 2: Component Location Firebird (5.0L & 5.7L)
Courtesy of GENERAL MOTORS CORP.

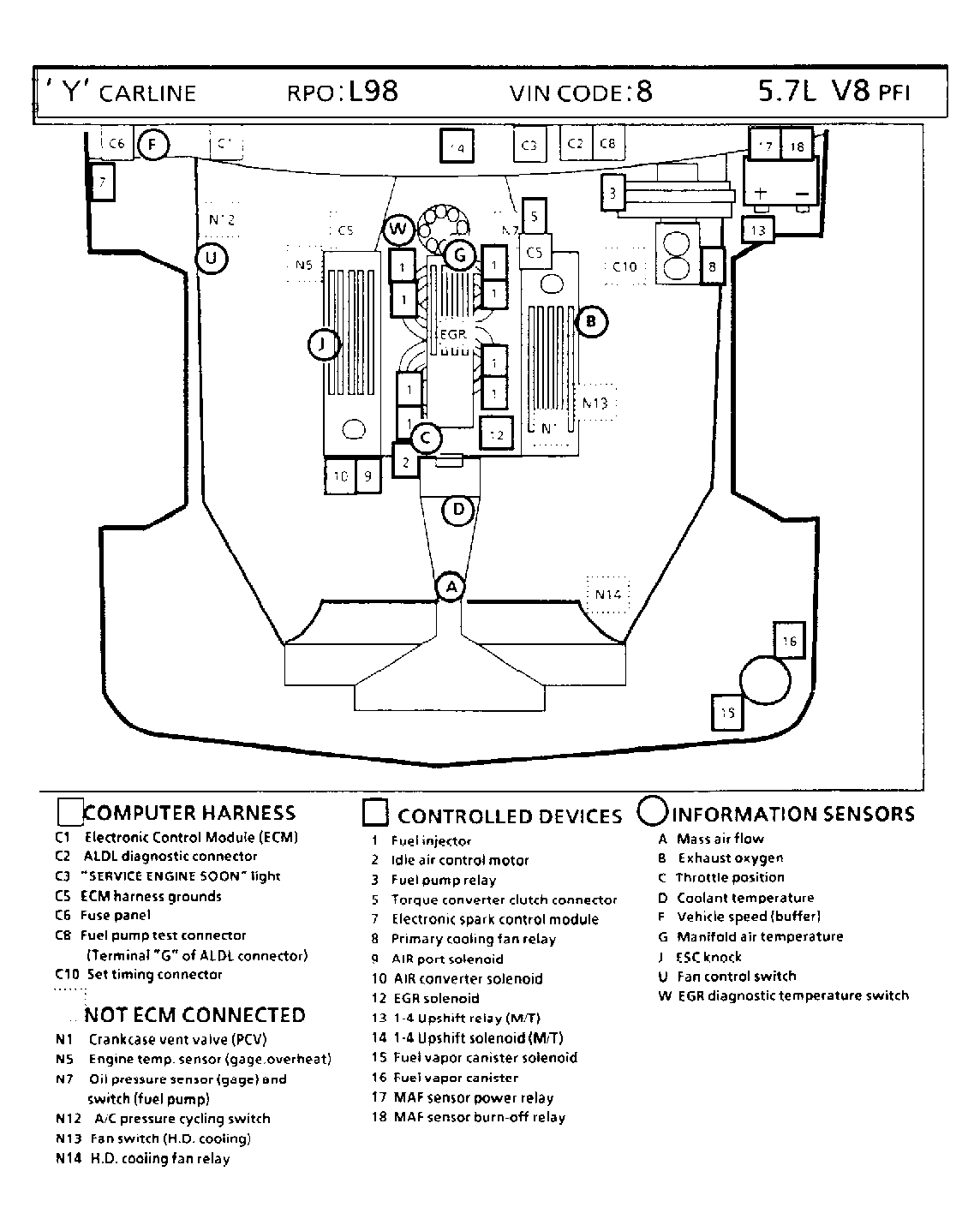

Fig 3: Component Location Corvette (5.7L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
