EXPERTEC TSB (89-T-49A)

WARNING: This page is about the Cavalier Base, 2D Coupe, Automatic, which is a different variant/trim than selected.

Publication date: 1989-10-16
Reference number: 89-T-49A
Supersedes refnos: 89-276-6E, 89-6E-5

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 89-T-49A, 89-276-6E, 89-6E-5, Date of Issue: 10/16/89

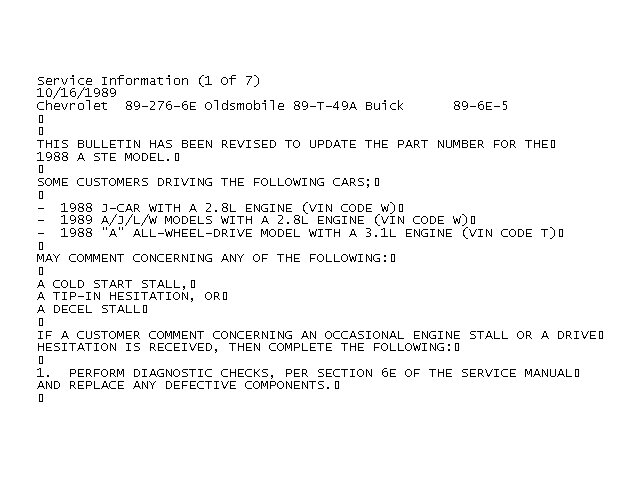

Fig 1: Service Information (1 Of 7)

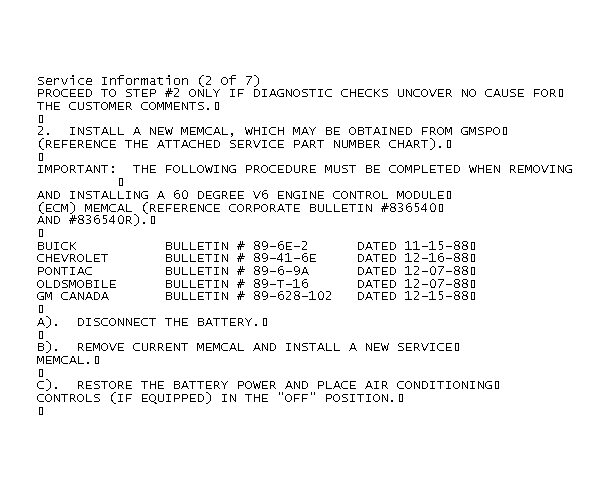

Fig 2: Service Information (2 Of 7)

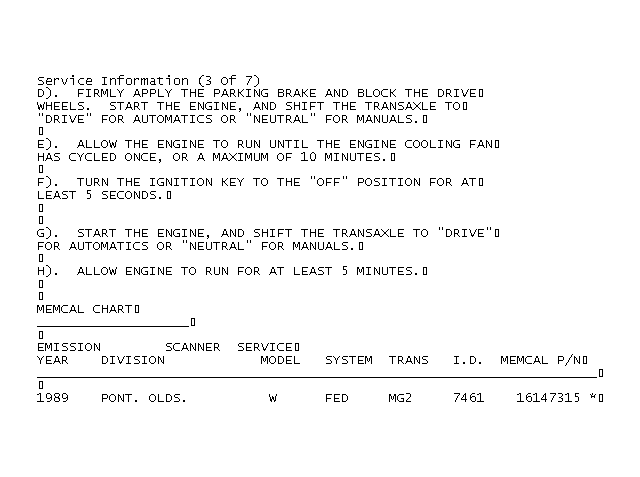

Fig 3: Service Information (3 Of 7)

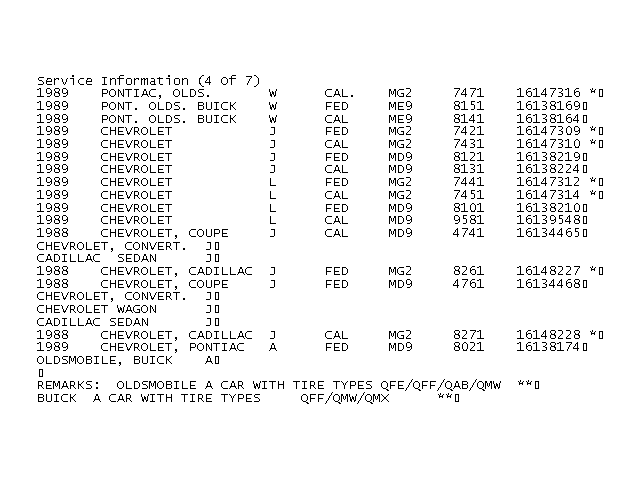

Fig 4: Service Information (4 Of 7)

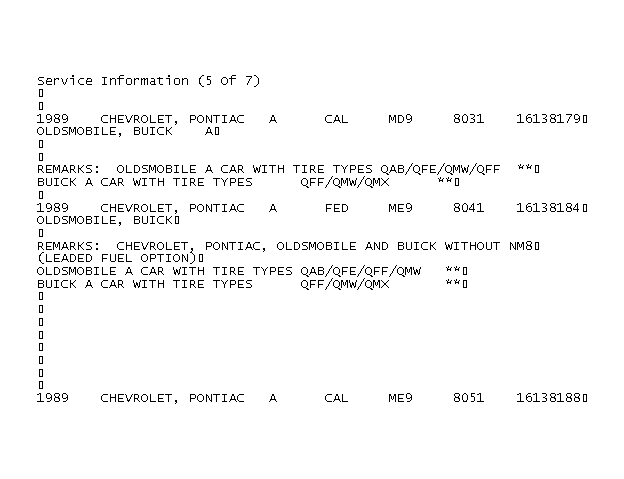

Fig 5: Service Information (5 Of 7)

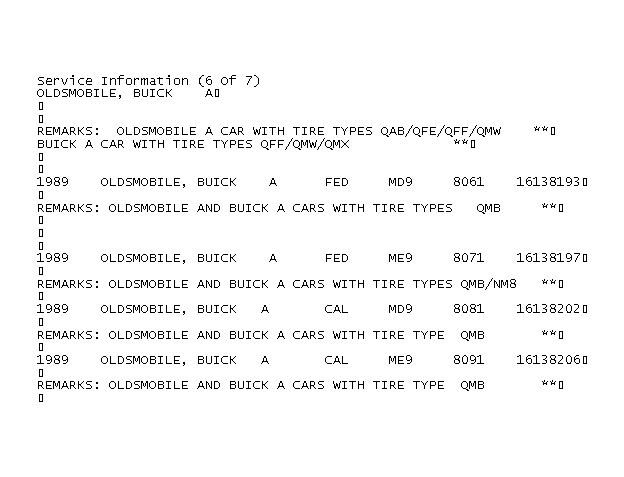

Fig 6: Service Information (6 Of 7)

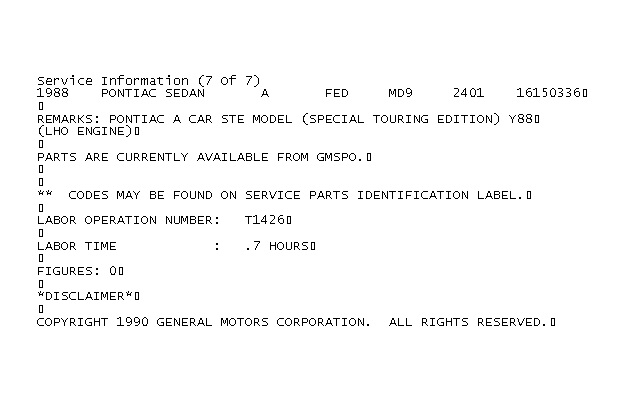

Fig 7: Service Information (7 Of 7)
