Component Locations

Fig 1: TBI Component Locations (2.0L VIN K, J Body)

G110379

Courtesy of GENERAL MOTORS CORP.

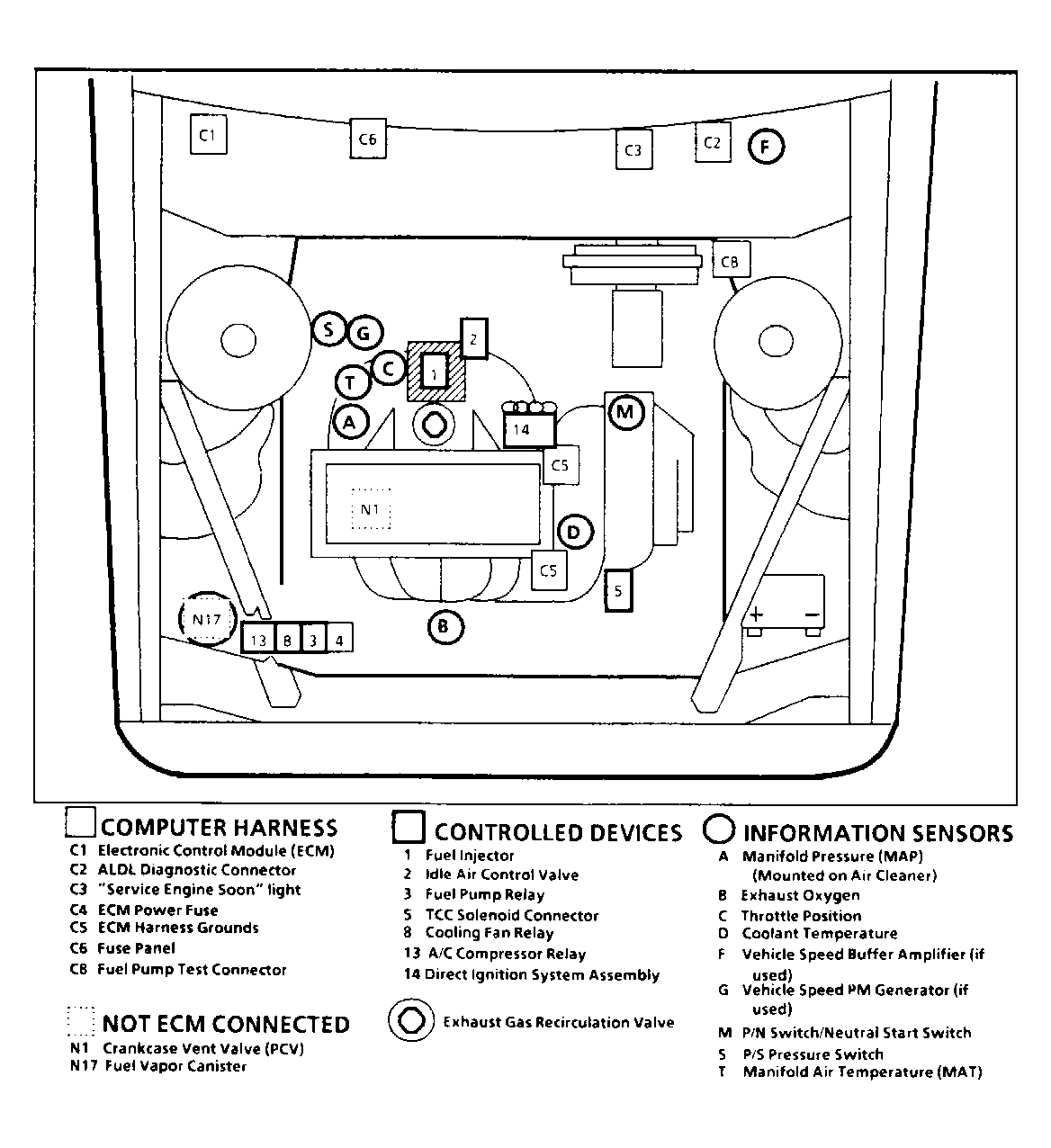

Fig 2: TBI Component Locations (2.5L VIN R, A Body)

G110380

Courtesy of GENERAL MOTORS CORP.

Fig 3: TBI Component Locations (2.5L VIN U, N Body)

G110381
