Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Cruise Control Module | Behind right side of dash panel, above glove box. | |
| Direct Ignition System (DIS) Module | ||

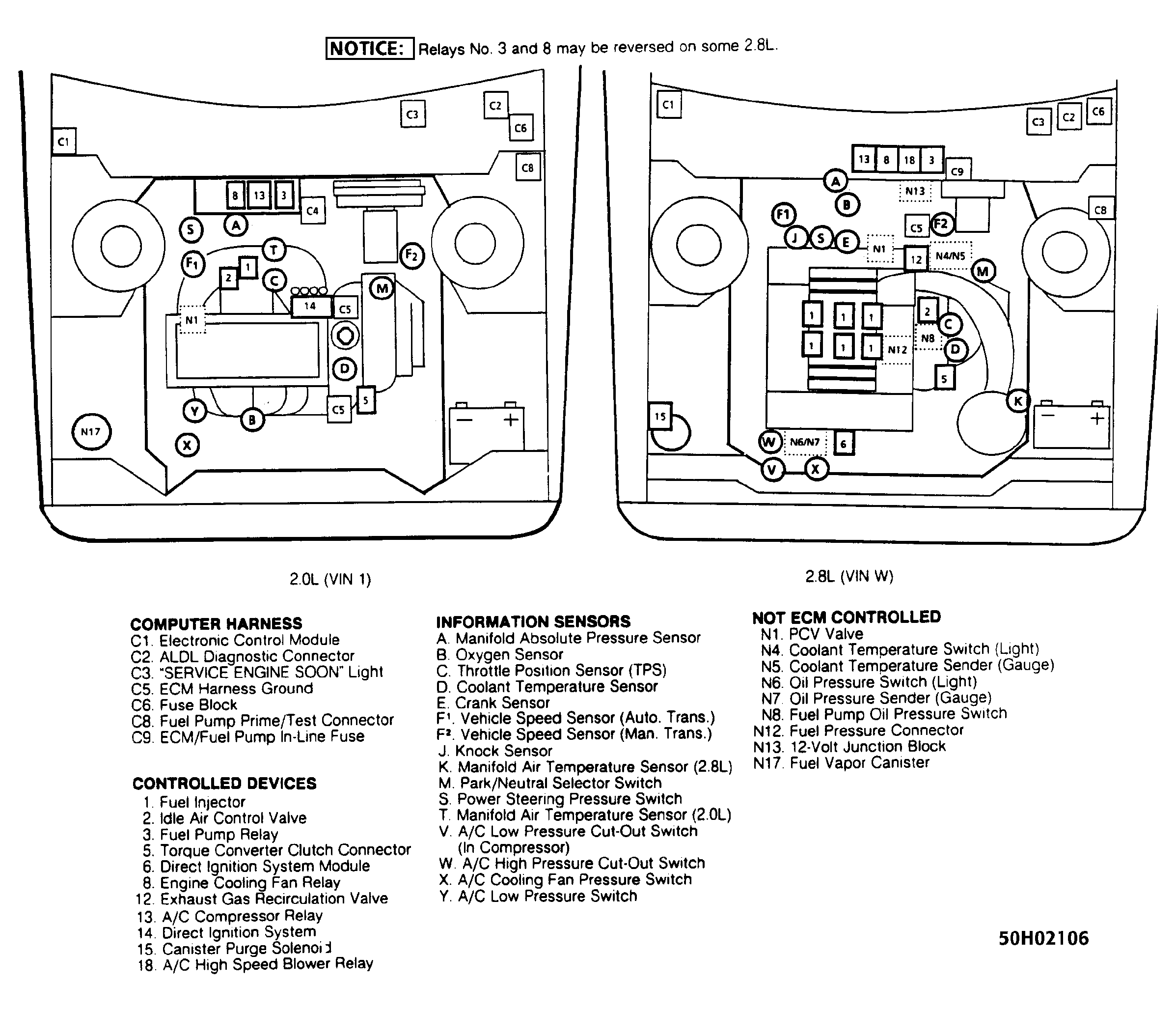

| 2.0L (VIN 1) | Below intake manifold. See Figure . | |
| 2.0L Component View | Below intake manifold. See Figure . | |
| 2.8L | Below exhaust manifold. See Figure . | |
| Electronic Control Module | Behind right side of dash panel. See Figure . | |
| Low Coolant Module | Behind dash panel, to left of steering column. | |
| Wiper/Washer Motor Module | On left front of cowl. | |
