System Diagrams: SUZUKI

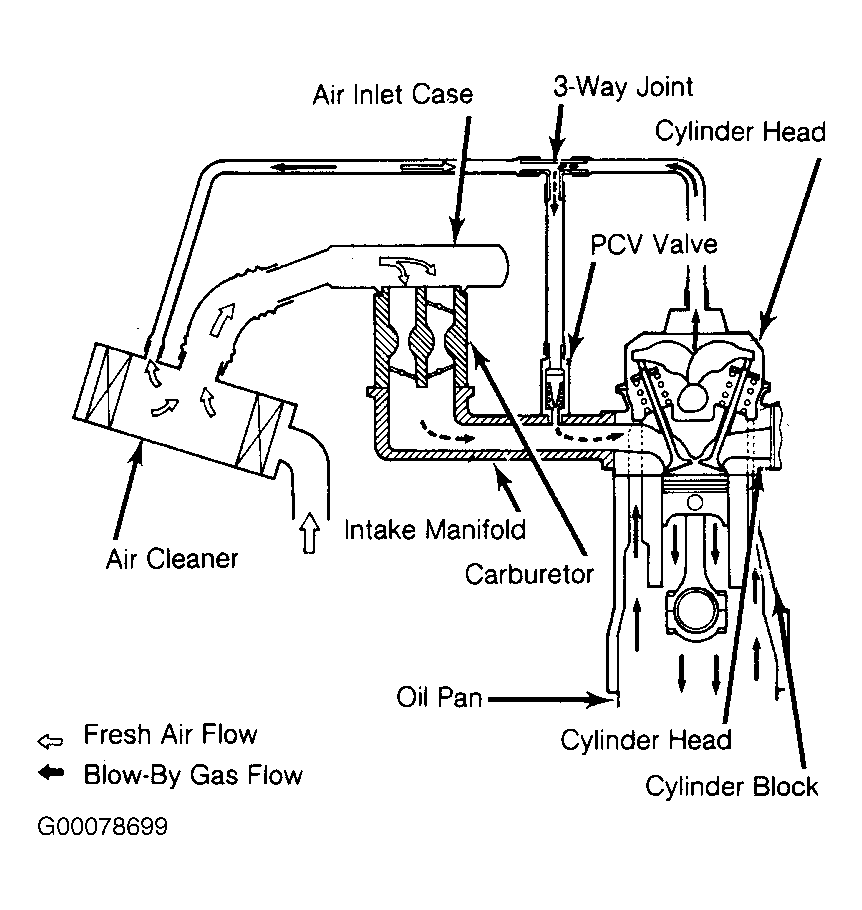

Fig 1: Crankcase Ventilation System (Suzuki)

G00078699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
