Chevrolet
>>
1988
>>
Spectrum Express
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Crankcase Ventilation
>>
System Diagrams
>>
Fold Motor Co.
Fold Motor Co.

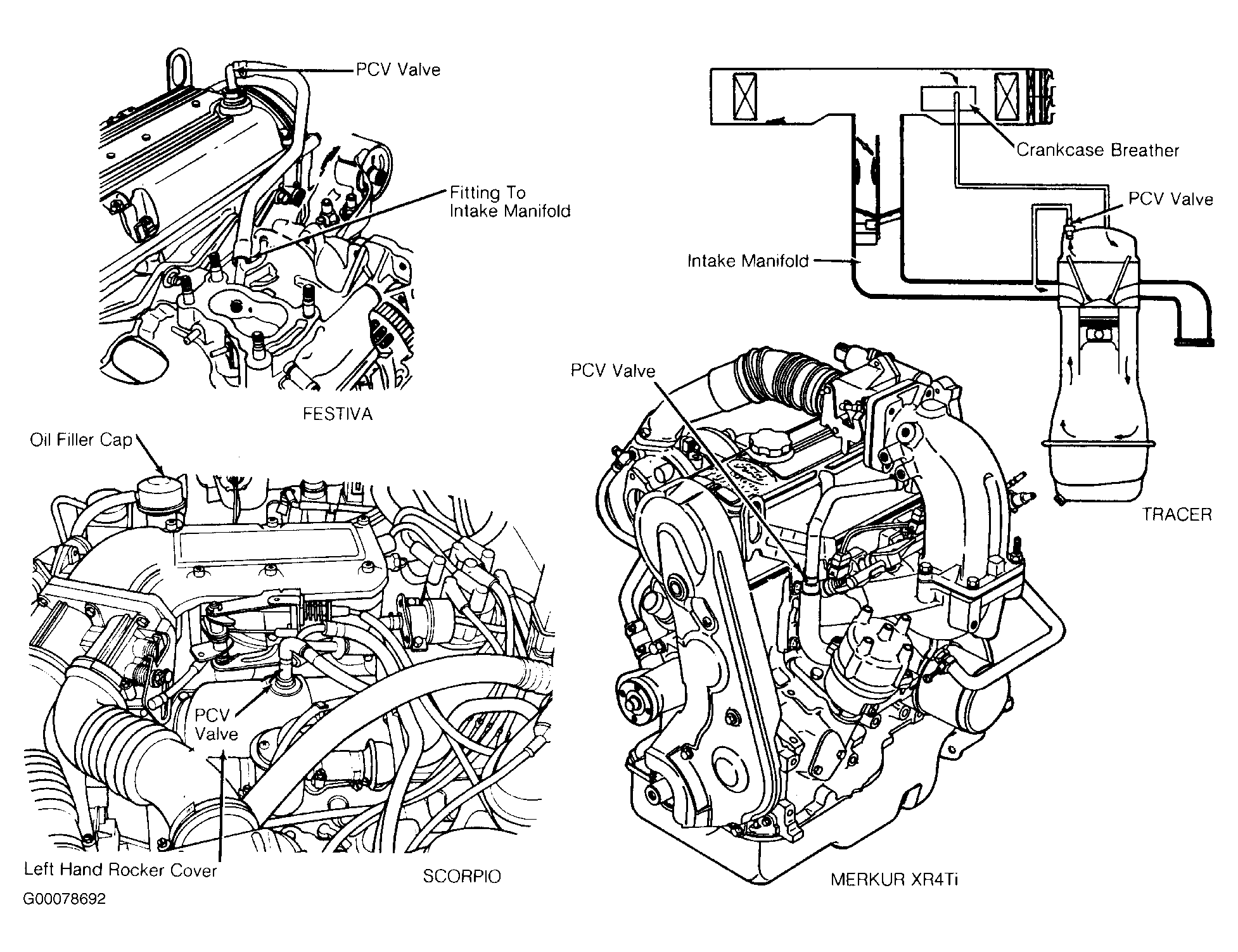

Fig 1: Crankcase Ventilation System (Fold Motor Co.)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
