Code 45 - Rich Exhaust Indication: TPS

An intermittent TPS output will cause the system to go rich, due to a false indication of engine acceleration.

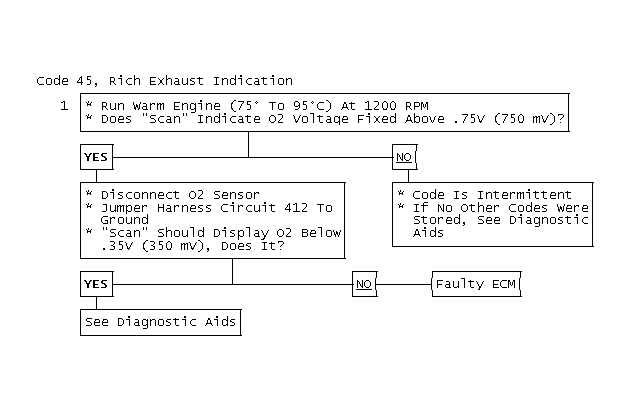

Fig 1: Code 45, Rich Exhaust Indication Flow Chart & Schematic

Fig 2: Code 45, Rich Exhaust Indication
